Pivot 2.9

Bollards for outdoor applications

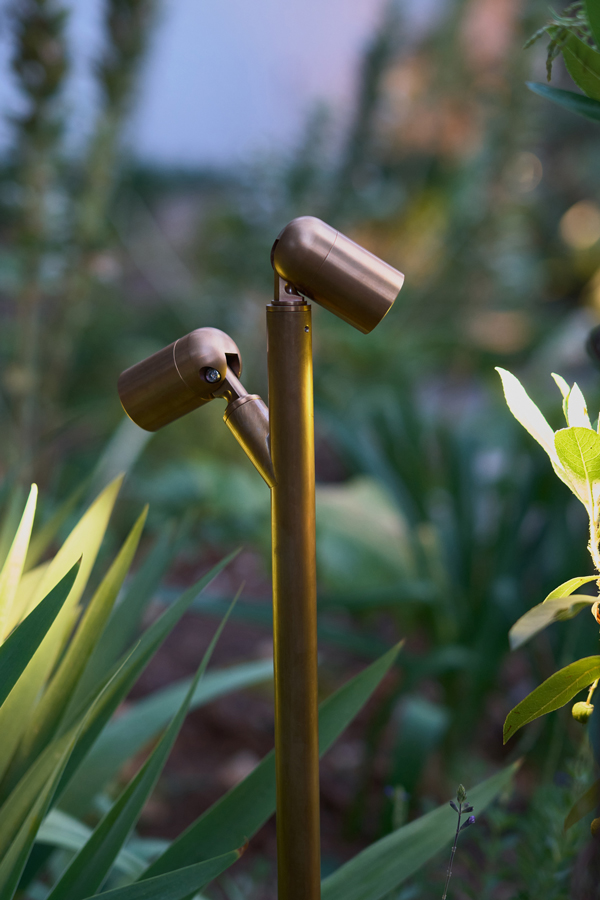

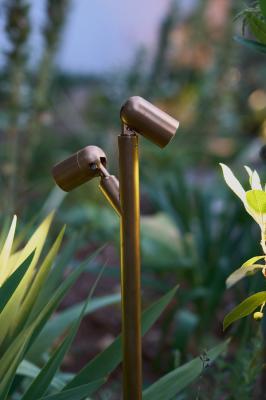

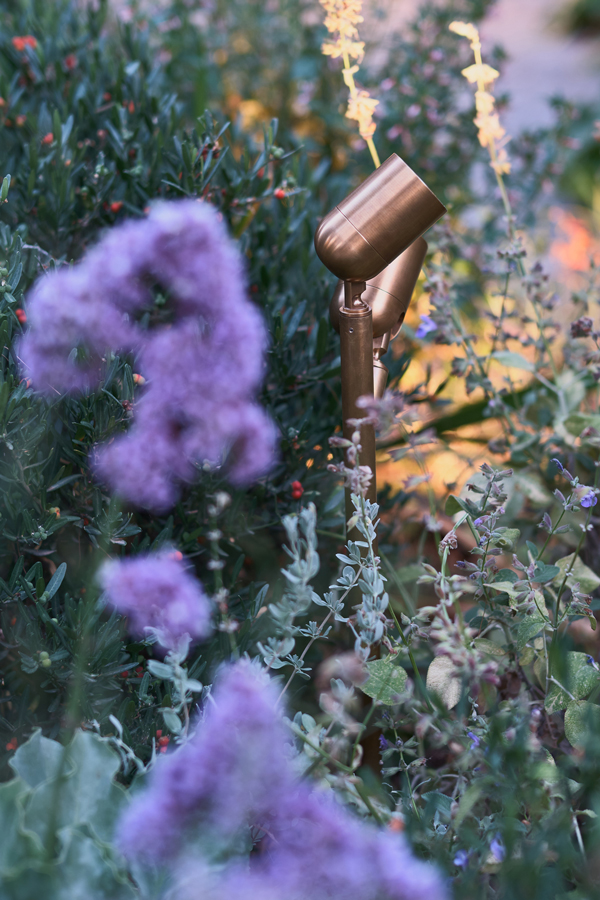

bollard for outdoor applications - 10W / 14W 24Vdc - Ø60x96 mm

  • fixed focus

    fixed focus

  • 13°x68° optics adjustable through 360° using magnet included

    13°x68° optics adjustable through 360° using magnet included

  • manual zoom lens adjustable using magnet included

    manual zoom lens adjustable using magnet included

Generate code

Technical data

Print technical data
Required spike, not included. Order the dual-fixture spike together with two lighting fixtures
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 0,56
  • IP66
  • IK08
  • IPS
  • RAL finish on request
  • Casambi control
  • F
Installation bollard for outdoor applications
Power consumption 10W, 14W
Power supply 24Vdc
Lumen output at source 1173 lm (3000K, 14W, CRI >90),
1397 lm (3000K, 14W, CRI 80),
821 lm (3000K, 10W, CRI >90),
978 lm (3000K, 10W, CRI 80)
Delivered lumen output 1064 lm (3000K, 25°, 14W, CRI 80),
676 lm (3000K, 25°, 10W, CRI >90),
835 lm (3000K, 25°, 10W, CRI 80),
862 lm (3000K, 25°, 14W, CRI >90)
Datasheet

Copied

Mounting surface mounted (spike)
Number and type of LED 1 COB LED, 3-step MacAdam, 50 000h L95 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics 13°, 25°, 37°, adjustable 13°x68°, optical range 15°—43°
CRI Colour Rendering Index 80, >90
Body material body in anticorodal aluminium
Screen material screen in serigraphed, transparent, tempered extra-clear glass
Finishes anthracite, cor-ten, jasper green, white
Power supply unit power supply unit not included
Power cables includes 1.50/10 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection IP66
Impact resistance IK08
Status Available

Read more

Close

Accessories and power supply units

Accessories (33)

Spikes and arms

Required installation accessories, not included

WPA005

Spike for in-ground installation - h 500 mm - jasper green

Order together with the lighting fixture

Required installation accessories, not included

WPA00E

Spike for in-ground installation - h 500 mm - white

Order together with the lighting fixture

Required installation accessories, not included

WPA00H

Spike for in-ground installation - h 500 mm - anthracite

Order together with the lighting fixture

Required installation accessories, not included

WPA00T

Spike for in-ground installation - h 500 mm - cor-ten

Order together with the lighting fixture

Required installation accessories, not included

WPA015

Spike for in-ground installation - h 800 mm - jasper green

Order together with the lighting fixture

Required installation accessories, not included

WPA01E

Spike for in-ground installation - h 800 mm - white

Order together with the lighting fixture

Required installation accessories, not included

WPA01H

Spike for in-ground installation - h 800 mm - anthracite

Order together with the lighting fixture

Required installation accessories, not included

WPA01T

Spike for in-ground installation - h 800 mm - cor-ten

Order together with the lighting fixture

Required installation accessories, not included

WPA025

Spike for in-ground installation - h 1100 mm - jasper green

Order together with the lighting fixture

Required installation accessories, not included

WPA02E

Spike for in-ground installation - h 1100 mm - white

Order together with the lighting fixture

Required installation accessories, not included

WPA02H

Spike for in-ground installation - h 1100 mm - anthracite

Order together with the lighting fixture

Required installation accessories, not included

WPA02T

Spike for in-ground installation - h 1100 mm - cor-ten

Order together with the lighting fixture

Required installation accessories, not included

WPA035

Dual-fixture spike for in-ground installation - h 500 mm - jasper green

Order together with two lighting fixtures

Required installation accessories, not included

WPA03E

Dual-fixture spike for in-ground installation - h 500 mm - white

Order together with two lighting fixtures

Required installation accessories, not included

WPA03H

Dual-fixture spike for in-ground installation - h 500 mm - anthracite

Order together with two lighting fixtures

Required installation accessories, not included

WPA03T

Dual-fixture spike for in-ground installation - h 500 mm - cor-ten

Order together with two lighting fixtures

Required installation accessories, not included

WPA045

Dual-fixture spike for in-ground installation - h 800 mm - jasper green

Order together with two lighting fixtures

Required installation accessories, not included

WPA04E

Dual-fixture spike for in-ground installation - h 800 mm - white

Order together with two lighting fixtures

Required installation accessories, not included

WPA04H

Dual-fixture spike for in-ground installation - h 800 mm - anthracite

Order together with two lighting fixtures

Required installation accessories, not included

WPA04T

Dual-fixture spike for in-ground installation - h 800 mm - cor-ten

Order together with two lighting fixtures

Required installation accessories, not included

WPA115

Dual-fixture spike for in-ground installation - h 1100 mm - jasper green

Order together with two lighting fixtures

Required installation accessories, not included

WPA11E

Dual-fixture spike for in-ground installation - h 1100 mm - white

Order together with two lighting fixtures

Required installation accessories, not included

WPA11H

Dual-fixture spike for in-ground installation - h 1100 mm - anthracite

Order together with two lighting fixtures

Required installation accessories, not included

WPA11T

Dual-fixture spike for in-ground installation - h 1100 mm - cor-ten

Order together with two lighting fixtures

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all optics, except for 50° sharp, 13°x68° optics and optical range 15°—43°

Snoots

WB10015

Standard snoot - jasper green

WB1001E

Standard snoot - white

WB1001H

Standard snoot - anthracite

WB1001T

Standard snoot - cor-ten

WB10025

Asymmetrical snoot - jasper green

WB1002E

Asymmetrical snoot - white

WB1002H

Asymmetrical snoot - anthracite

WB1002T

Asymmetrical snoot - cor-ten

Cables

Choose the power cable in the code generator

Power supply units (22)

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W
250mA constant current; max 10W ⚠
350mA constant current; max 15W ⚠
400mA constant current; max 17W ⚠
450mA constant current; max 19W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 10W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 11W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV0D024V03066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W
Power30W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W
Power100W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W
Power200W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W
Power300W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 24 Vdc input:; 24Vdc; 240W
With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

Control input (4)
