Kit Combina D 1.0

Recessed for indoor applications

recessed for indoor applications - 8W 230Vac - Ø70 mm / 70x70 mm

Rebated installation

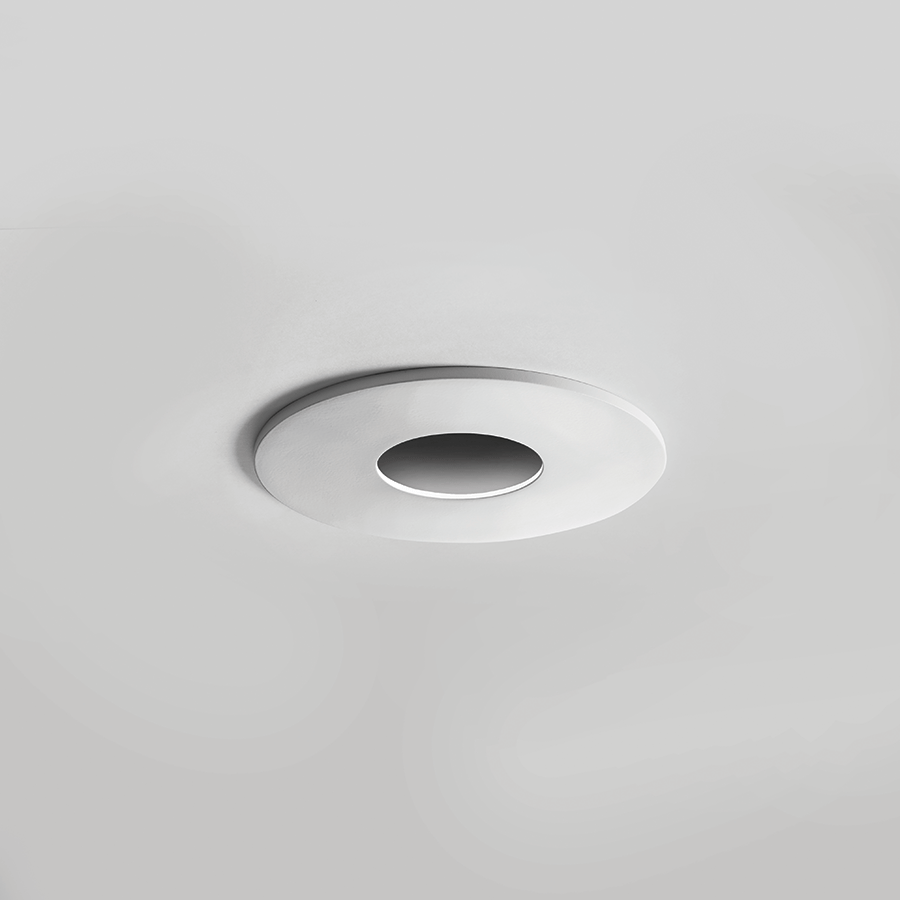

  • round flat cover, white

    round flat cover, white

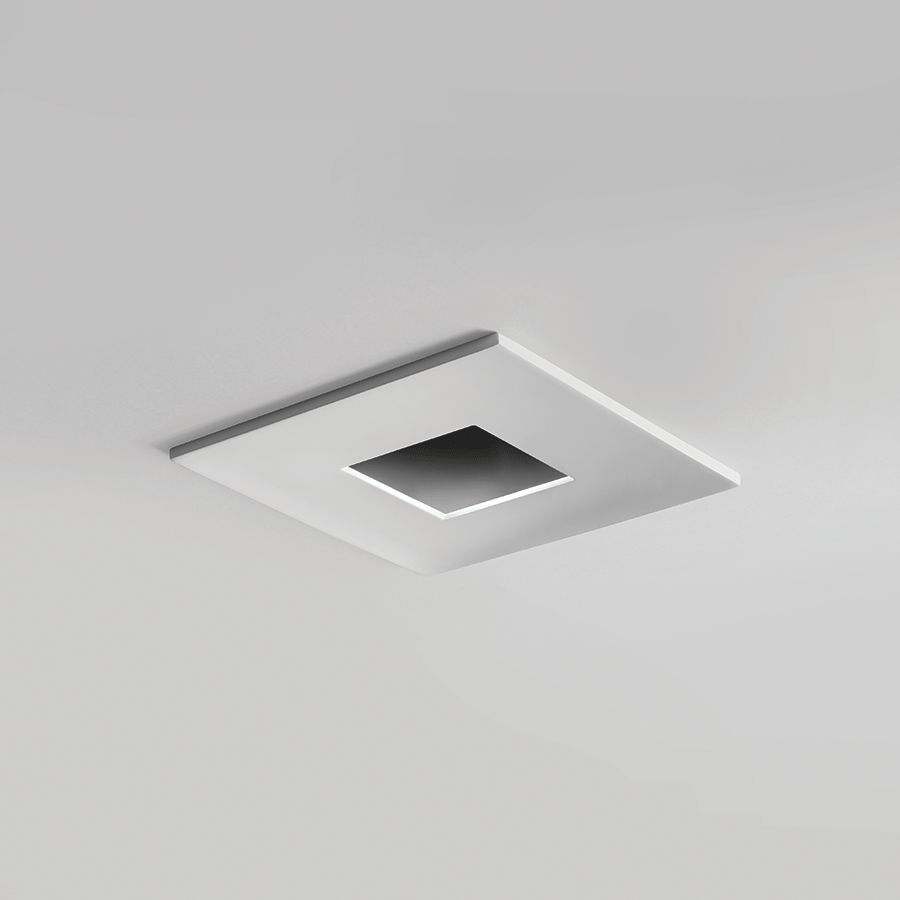

  • square flat cover, white

    square flat cover, white

  • Iconic Awards 2021
  • Innovation Award Architecture+ Technology 2020
  • LIT Lighting Design Awards 2020

Generate code

Technical data

Print technical data
  • conforme alla normativa Europea EN 60598-1
  • EAC
  • BIS R-41105201
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    0,67 kg
  • IP40
  • DALI
  • A/A+/A++
Installation recessed downlight for indoor applications
Power consumption 8W
Power supply 230Vac
Lumen output at source 637 lm (3000K)
Delivered lumen output 293 lm (3000K, 16°)
Datasheet

Copied

Mounting recessed (ceiling)
Number and type of LED 1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics 16°, 22°, 33°
CRI Colour Rendering Index >90
Body material body in die-cast aluminium and Bayblend, bezel and cover in die-cast aluminium
Finishes white
Cover round, square
Power supply unit power supply unit included
Power cables includes 2x0.30 m single-core cables
Control system DALI, ON/OFF
Ingress protection IP40
Features UGR <13
Notes Easy to wire. The electrical cables can be attached directly to the connector, making the product easier to install
