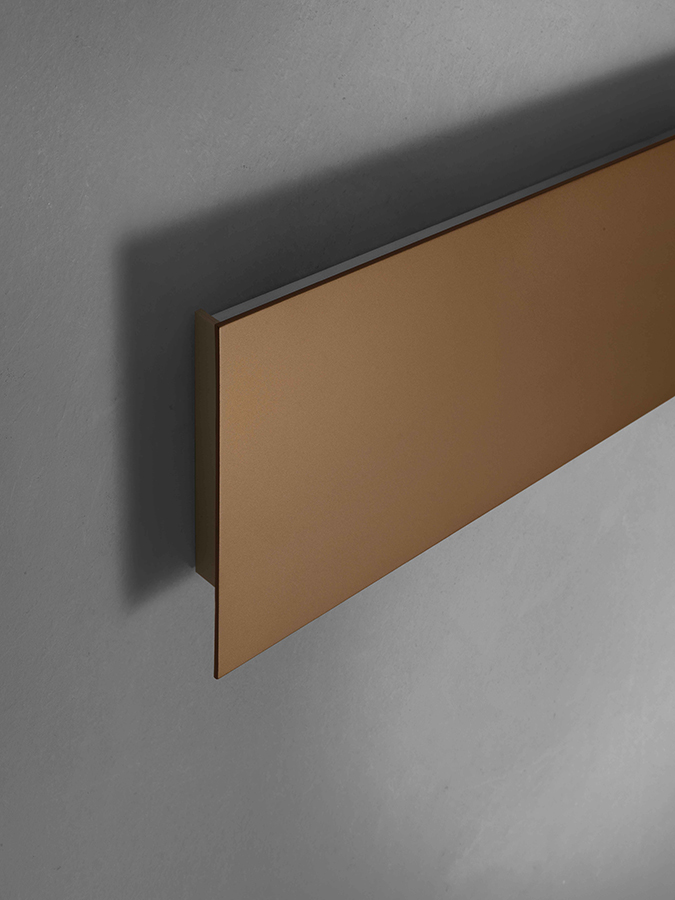

Berica IN 2.2

Wall mounted for indoor applications

wall mounted for indoor applications, double beam - 54W 230Vac - 620x120x30 mm

Technical data

Print technical data

1,60 kg
IP40
DALI
PUSH

Installation	wall mounted for indoor applications, double beam
Power consumption	54W
Power supply	230Vac
Lumen output at source	6560 lm (3000K)
Delivered lumen output	5360 lm (3000K, 45°x96°)
Datasheet	Berica IN 2.2 wall mounted for indoor applications, double beam; surface mounted (wall); Power consumption: 54W; Power supply: 230Vac; Lumen output at source: 6560 lm (3000K); Delivered lumen output: 5360 lm (3000K, 45°x96°); 128 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 45°x96°, 57°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: >90; Body material: body and flat cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and flat cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed to follow the flat profile of the front panel; Finishes: body, cover and end caps painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003), cover and end caps painted matt aluminium grey, body painted white (RAL 9003), cover and end caps painted antique bronze, body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, body painted white (RAL 9003), cover and end caps painted matt antique white (RAL 9001) (RAL 9001); RAL finish on request; built-in power supply unit; Control system: ON/OFF, PUSH, DALI; Ingress protection: IP40; non-standard lengths available on request, single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Glow wire test: 650°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 1600 g; Dimensions: 620x120x30 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBerica IN 2.2 wall mounted for indoor applications, double beam surface mounted (wall) Power consumption: 54W Power supply: 230Vac Lumen output at source: 6560 lm (3000K) Delivered lumen output: 5360 lm (3000K, 45°x96°) 128 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 45°x96°, 57°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: >90 Body material: body and flat cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and flat cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed to follow the flat profile of the front panel Finishes: body, cover and end caps painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003), cover and end caps painted matt aluminium grey, body painted white (RAL 9003), cover and end caps painted antique bronze, body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, body painted white (RAL 9003), cover and end caps painted matt antique white (RAL 9001) (RAL 9001) RAL finish on request built-in power supply unit Control system: ON/OFF, PUSH, DALI Ingress protection: IP40 non-standard lengths available on request, single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Glow wire test: 650° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 1600 g Dimensions: 620x120x30 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	128 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K

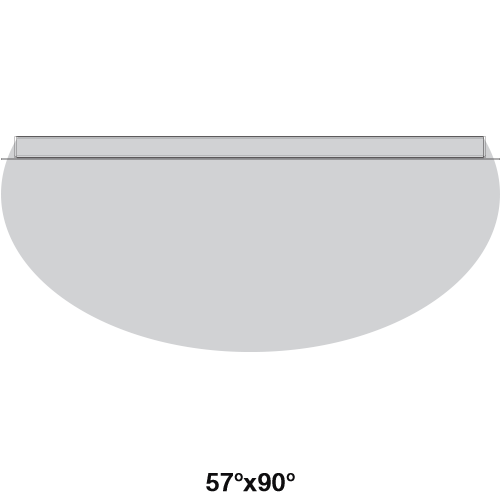

Optics	45°x96°, 57°x90°, asymmetrical, diffuse
CRI Colour Rendering Index	>90
Body material	body and cover in anticorodal aluminium
Finishes	white, matt aluminium grey, antique bronze, primer, antique white
Power supply unit	built-in power supply unit
Control system	ON/OFF, PUSH, DALI
Ingress protection	IP40
Notes	non-standard lengths available on request, single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available
