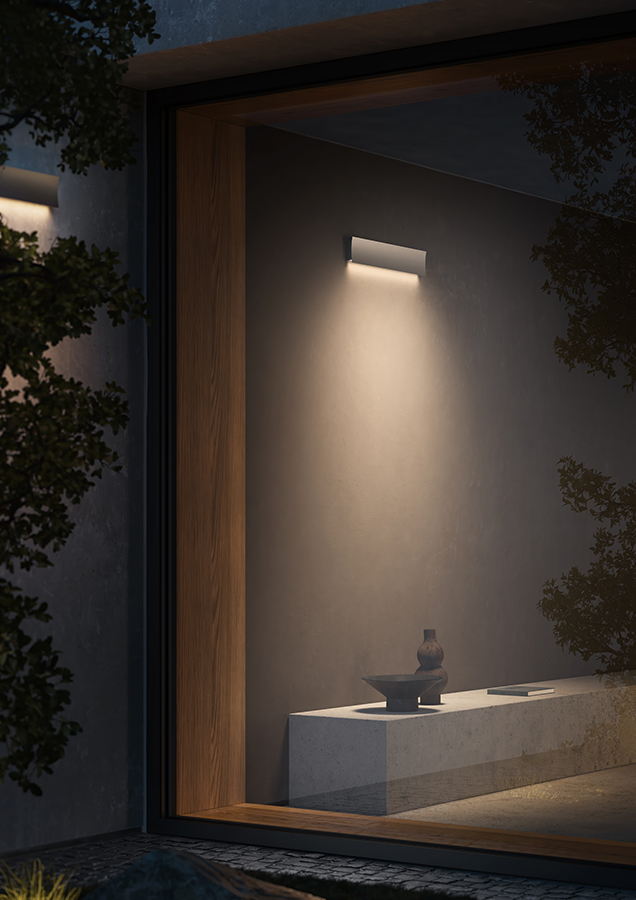

Berica. Indoor wall-mounted fixture with a slim, pared-down design - L&L Luce&Light

Berica 1.0

wall mounted for indoor applications, double beam - 8W 230Vac - 120x120x33 mm

Technical data

Print technical data

0,35 kg
IP40

Installation	wall mounted for indoor applications, double beam
Power consumption	8W
Power supply	230Vac
Lumen output at source	410 lm (3000K) per beam
Delivered lumen output	328 lm (3000K, 43°x96°) per beam
Datasheet	Berica 1.0 wall mounted for indoor applications, double beam; surface mounted (wall); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 410 lm (3000K) per beam; Delivered lumen output: 328 lm (3000K, 43°x96°) per beam; 16 mid power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 43°x96°, 54°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: >90; Body material: body and convex cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and convex cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel; Finishes: body painted white (RAL 9003) and cover painted matt aluminium grey, body painted white (RAL 9003) and cover painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, body painted white (RAL 9003) and cover painted matt antique white (RAL 9001), body and cover painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003) and cover painted antique bronze; RAL finish on request; built-in power supply unit; Ingress protection: IP40; non-standard lengths available on request; Operating temperature: 0°C — +45°C; Glow wire test: 650°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 350 g; Dimensions: 120x120x33 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBerica 1.0 wall mounted for indoor applications, double beam surface mounted (wall) Power consumption: 8W Power supply: 230Vac Lumen output at source: 410 lm (3000K) per beam Delivered lumen output: 328 lm (3000K, 43°x96°) per beam 16 mid power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 43°x96°, 54°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: >90 Body material: body and convex cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and convex cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel Finishes: body painted white (RAL 9003) and cover painted matt aluminium grey, body painted white (RAL 9003) and cover painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces, body painted white (RAL 9003) and cover painted matt antique white (RAL 9001), body and cover painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003) and cover painted antique bronze RAL finish on request built-in power supply unit Ingress protection: IP40 non-standard lengths available on request Operating temperature: 0°C — +45°C Glow wire test: 650° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 350 g Dimensions: 120x120x33 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	16 mid power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	43°x96°, 54°x90°, asymmetrical, diffuse
CRI Colour Rendering Index	>90
Body material	body and cover in anticorodal aluminium
Finishes	matt aluminium grey, primer, antique white, white, antique bronze
Power supply unit	built-in power supply unit
Ingress protection	IP40
Notes	non-standard lengths available on request
Status	Available
