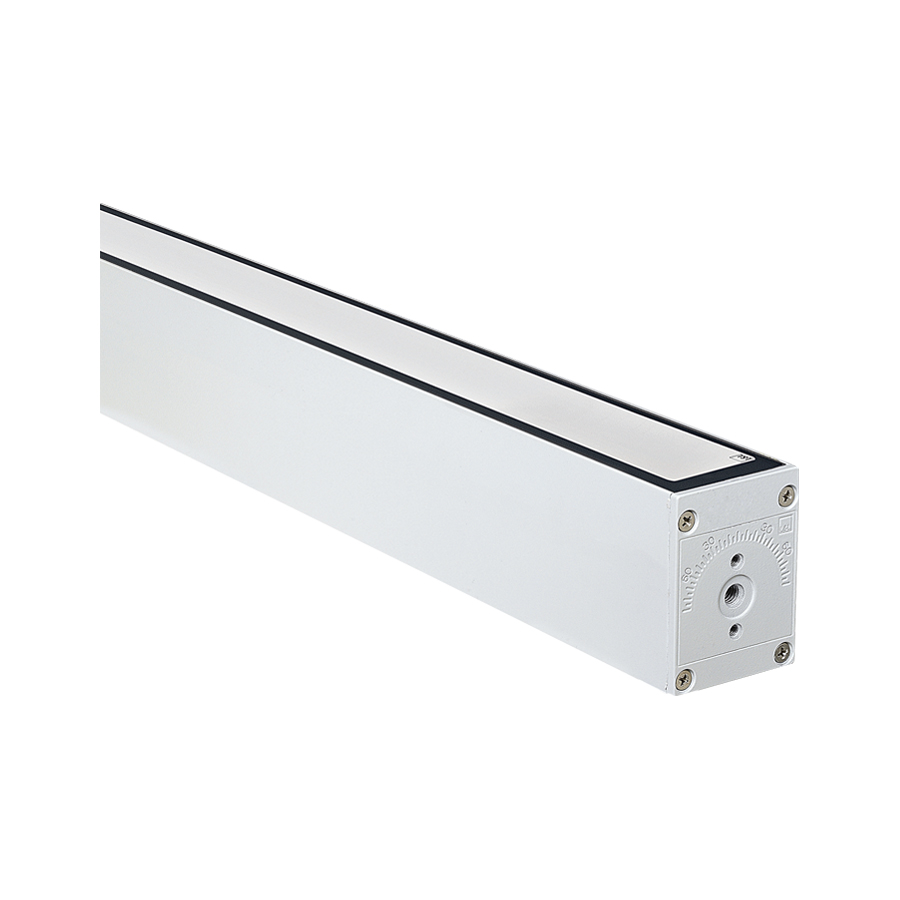

River Wall 2.2

20W 230Vac - diffuse optics - 1020 mm

Generate code

Technical data

Print technical data
Required brackets, not included
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • gross weight
    kg 5,20
  • IP66
  • IK09
  • IPS
  • PID
  • RAL finish on request
  • A/A+/A++
Installation linear profile for outdoor applications
Power 20W
Power supply 230Vac
Lumen output at source 1848 lm (3000K)
Delivered lumen output 946 lm (3000K)
Datasheet

Copied

Mounting surface mounted (ceiling, wall, floor) with brackets
Number and type of LED 132 SMD mid power LEDs, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics diffuse
Material body in anodized aluminium,
screen in extra-clear, acid-etched, tempered glass
Finishes grey
Power supply unit built-in power supply unit
Power cables includes 1,5 m neoprene cable, H07RN-F 3x1,0 Ø9,3 mm
Ingress protection IP66
Impact resistance IK09
Notes DALI and 1-10V versions, and in/out connection, available on request
Status Available
