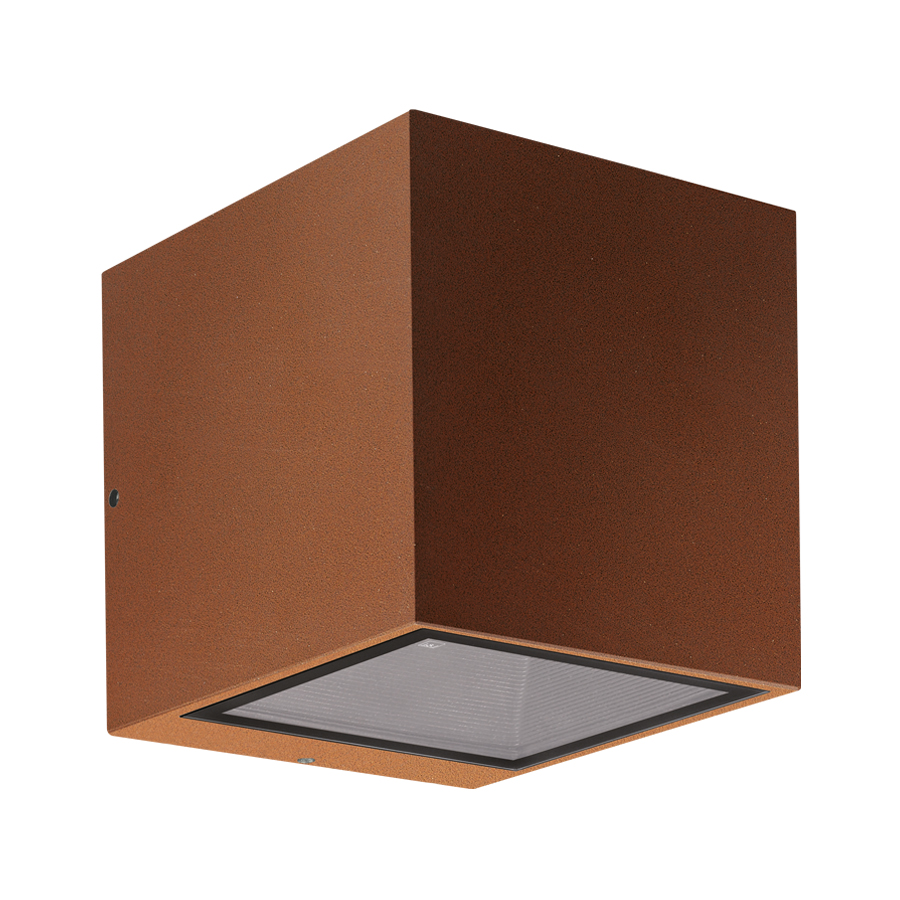

Kocca 3.1

Wall mounted for outdoor applications

wall mounted for outdoor applications - 12/18 W 230Vac - single beam - 170x150x150 mm

Generate code

Technical data

Print technical data

Updated to KA3111FFT

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 3,85
  • IP65
  • IK06
  • PID
  • RAL finish on request
  • F
Installation wall mounted for outdoor applications, single beam
Power consumption 18W
Power supply 230Vac
Lumen output at source 1308 lm (3000K, optics version, 18W)
Delivered lumen output 1137 lm (3000K, 30°, 18W)


Mounting surface mounted (wall)
Number and type of LED 9 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour 2700K
Optics 30°
CRI Colour Rendering Index 80
Body material body in die-cast aluminium
Screen material screen in serigraphed, transparent, tempered extra-clear glass
Finishes cor-ten
Power supply unit built-in power supply unit
Power cables connection box with 0.50 m cable H05RN-F 2x0,75 Ø6,3 mm
Ingress protection IP65
Impact resistance IK06
Notes DALI and 0/1-10V versions available on request. Spacer with RAL finish available on request,
Casambi-compatible version, controllable with the Casambi app, available on request; spacer with RAL finish available on request
Status Available
