Bright 1.0 316L Underwater recessed fixtures lighting pools and fountains - L&L Luce&Light

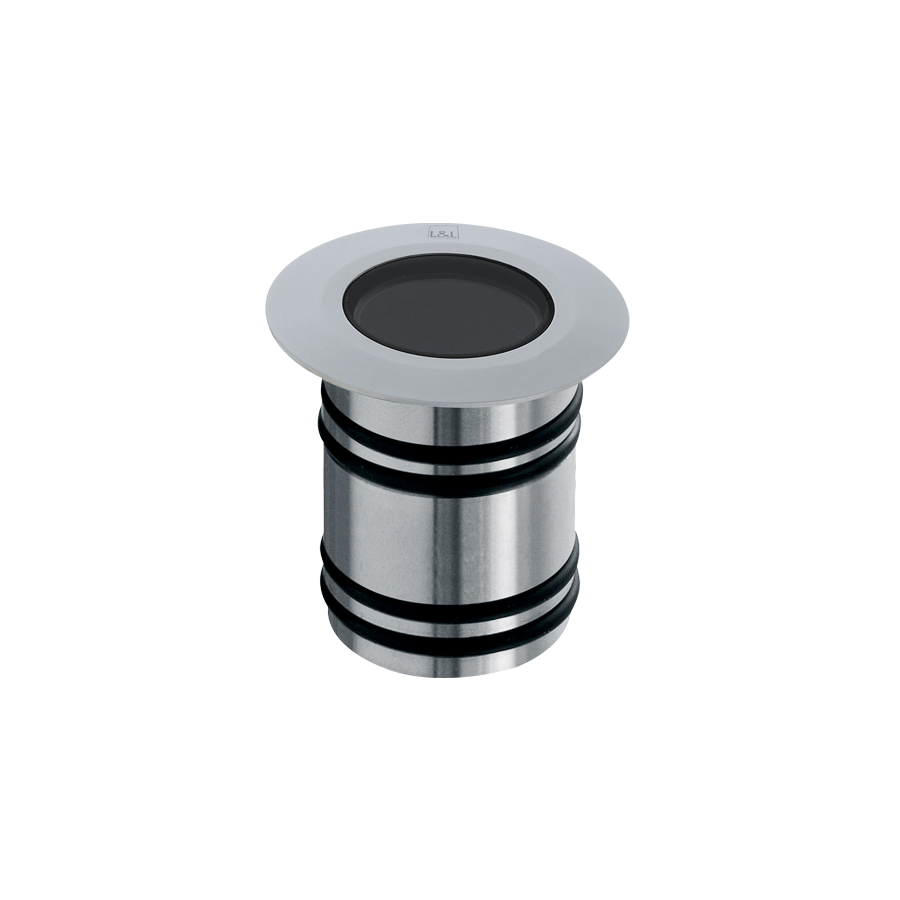

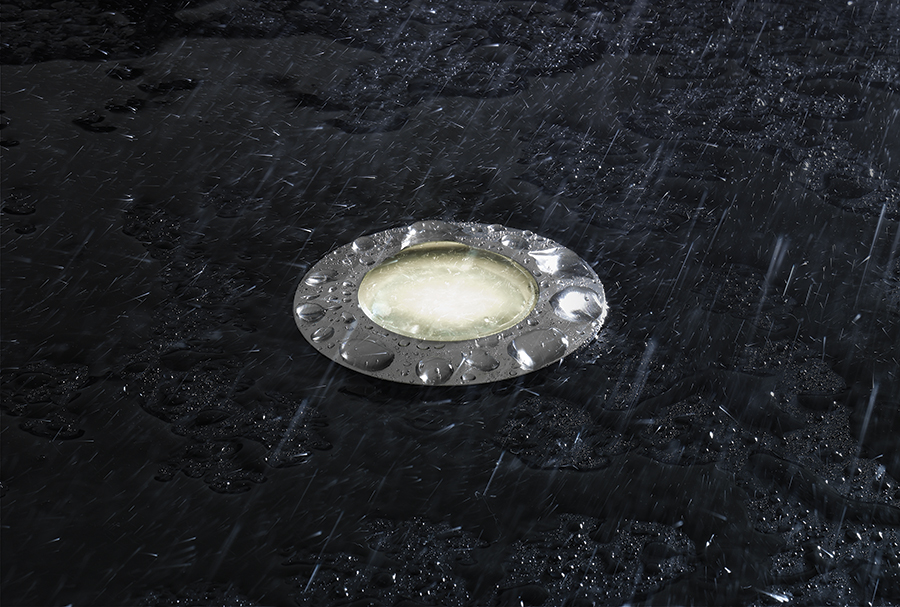

Bright 1.0 316L

recessed for underwater applications - max 2W max 500mA - ø35 mm

Technical data

Print technical data

kg 0,48
IP68
IK10

Installation	recessed for outdoor and underwater applications
Power consumption	max 2W
Power supply	max 500mA
Lumen output at source	145 lm (3000K, 500mA)
Delivered lumen output	88 lm (3000K, 500mA, 20°)
Datasheet	Bright 1.0 316L recessed for outdoor and underwater applications; walkover; recessed (wall, ground), max depth 10 m; Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 145 lm (3000K, 500mA); Delivered lumen output: 88 lm (3000K, 500mA, 20°); 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: 10°, 20°, 40°: optical system consisting of a high-efficiency TIR lens, diffuse: optical system consisting of black holder and 10-mm-thick, tempered extra-clear glass seal, resistant to knocks and scratches, and with high transmittance to eliminate chromatic alterations; CRI Colour Rendering Index: 80; Body material: body and trim made of AISI 316L stainless steel, made entirely on a CNC lathe; Screen material: 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches (optics version), screen in acid-etched, tempered extra-clear glass (diffuse version); Seals: system of four O-rings to guarantee watertightness and prevent water entering the outer casing.; power supply unit not included; Wiring: series; includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP68; Impact resistance: IK10; version with elliptical optics available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C (installation outdoors), 0°C — +45°C (installation underwater); Maximum device temperature: 50°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 480 g; Dimensions: Ø35x52 mm; Cutout dimensions: Ø30 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WC5003 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBright 1.0 316L recessed for outdoor and underwater applications walkover recessed (wall, ground), max depth 10 m Power consumption: max 2W Power supply: max 500mA Lumen output at source: 145 lm (3000K, 500mA) Delivered lumen output: 88 lm (3000K, 500mA, 20°) 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: 10°, 20°, 40°: optical system consisting of a high-efficiency TIR lens, diffuse: optical system consisting of black holder and 10-mm-thick, tempered extra-clear glass seal, resistant to knocks and scratches, and with high transmittance to eliminate chromatic alterations CRI Colour Rendering Index: 80 Body material: body and trim made of AISI 316L stainless steel, made entirely on a CNC lathe Screen material: 10-mm-thick transparent extra-clear glass, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches (optics version), screen in acid-etched, tempered extra-clear glass (diffuse version) Seals: system of four O-rings to guarantee watertightness and prevent water entering the outer casing. power supply unit not included Wiring: series includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP68 Impact resistance: IK10 version with elliptical optics available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C (installation outdoors), 0°C — +45°C (installation underwater) Maximum device temperature: 50°C (Ta 25°C) Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 480 g Dimensions: Ø35x52 mm Cutout dimensions: Ø30 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WC5003 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, ground), max depth 10 m
Number and type of LED	1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L95 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	10°, 20°, 40°, diffuse
CRI Colour Rendering Index	80
Body material	body and trim in AISI 316L stainless steel
Screen material	screen in tempered, transparent extra-clear glass (optics version), screen in acid-etched, tempered extra-clear glass (diffuse version)
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP68
Impact resistance	IK10
Notes	version with elliptical optics available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT
DXF Technical drawing
3DS File
LDT Photometric file
IES Photometric file
CB marking
Energy label Language
- Italiano
- English
- Deutsch
- Español
- Russian
- Polski
- Nederlands
- Czech
- Slovak
- Portugues
- Français

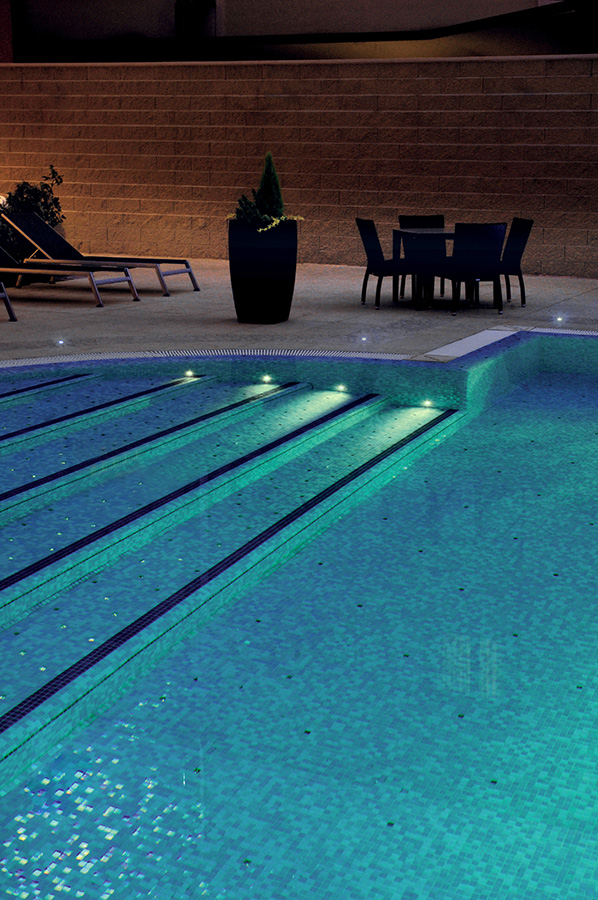

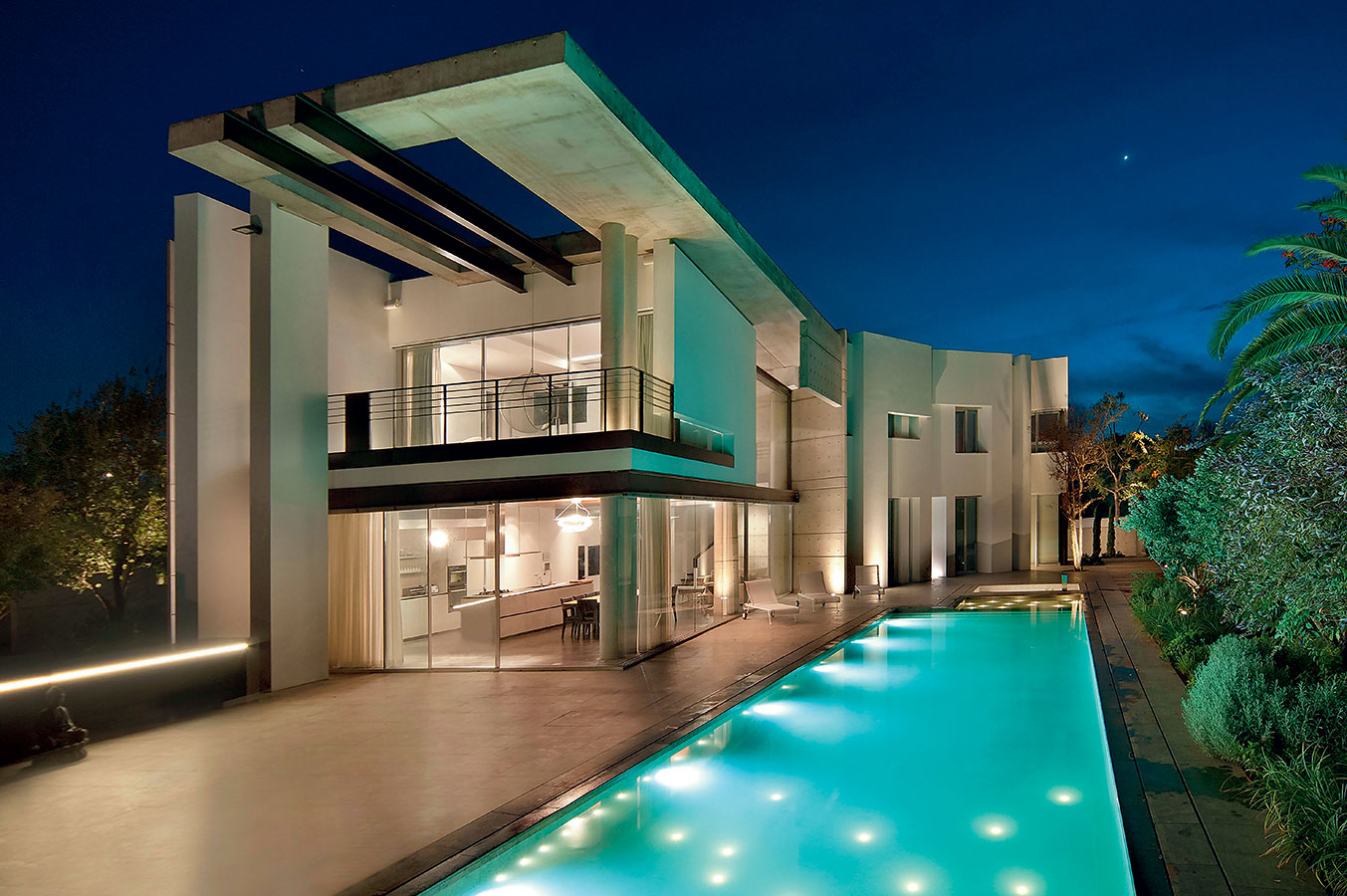

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

WC5003

Outer casing

Cables

Choose the power cable in the code generator

Power supply units (23)

A13350VL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 4W
Power	4W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A13500TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 6W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A14500IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A15500QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	500mA constant current; max 12W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	ON/OFF
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (4)

A13350VL12/24

Low-voltage converter

to be used with a constant-voltage power supply unit

Input	12-24Vdc 9-24Vdc 9-18Vac 50-60 Hz
Output	350mA constant current; max 3,7W 350mA constant current; max 8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ARCUNID2

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU
output values apply to 48Vdc

Input	12-24-48Vdc
Output	1 channel 350mA constant current; max 16,8W 500mA constant current; max 24W 700mA constant current; max 33,6W 3 channels 350mA constant current; max 50,4W 500mA constant current; max 72W 700mA constant current; max 100,8W 4 channels 350mA constant current; max 67,2W 500mA constant current; max 96W 700mA constant current; max 134,4W
Dimmering	0/1-10V, PUSH, DALI, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IP	IP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	350mA constant current; max 8,4W
Dimmering	PWM
Power supply unit IP	IP20

WFA024500

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	500mA constant current; max 12W
Dimmering	PWM
Power supply unit IP	IP20

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
