Spot. Outdoor projectors with bracket - L&L Luce&Light

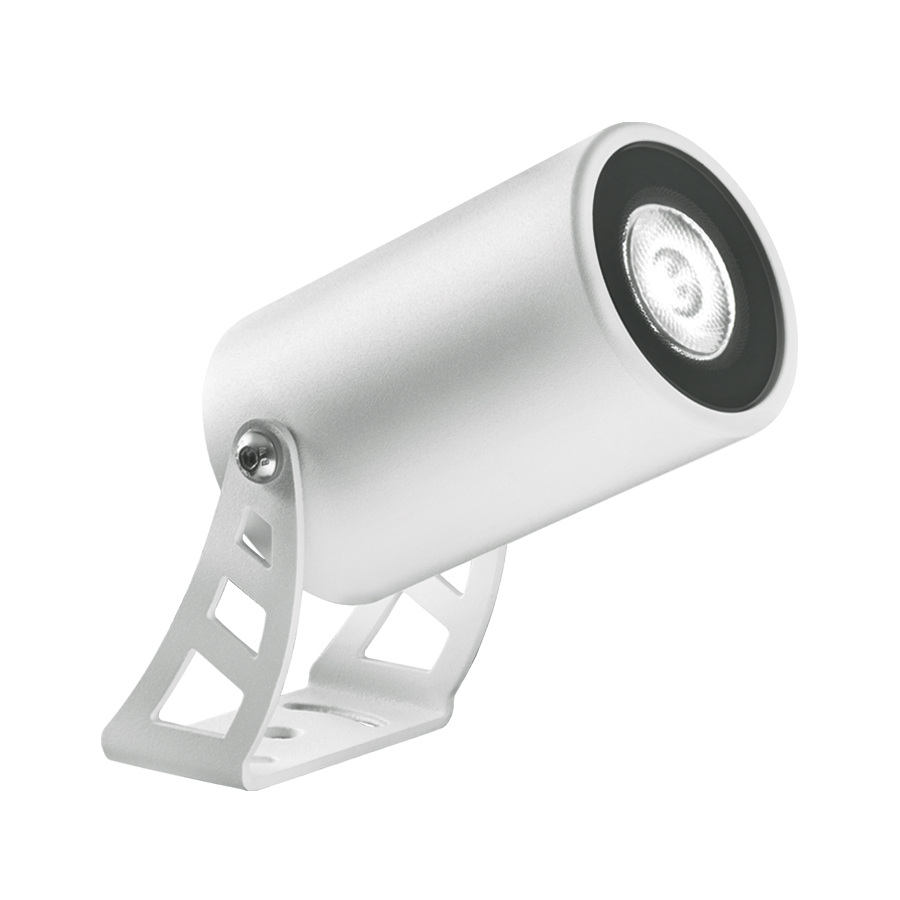

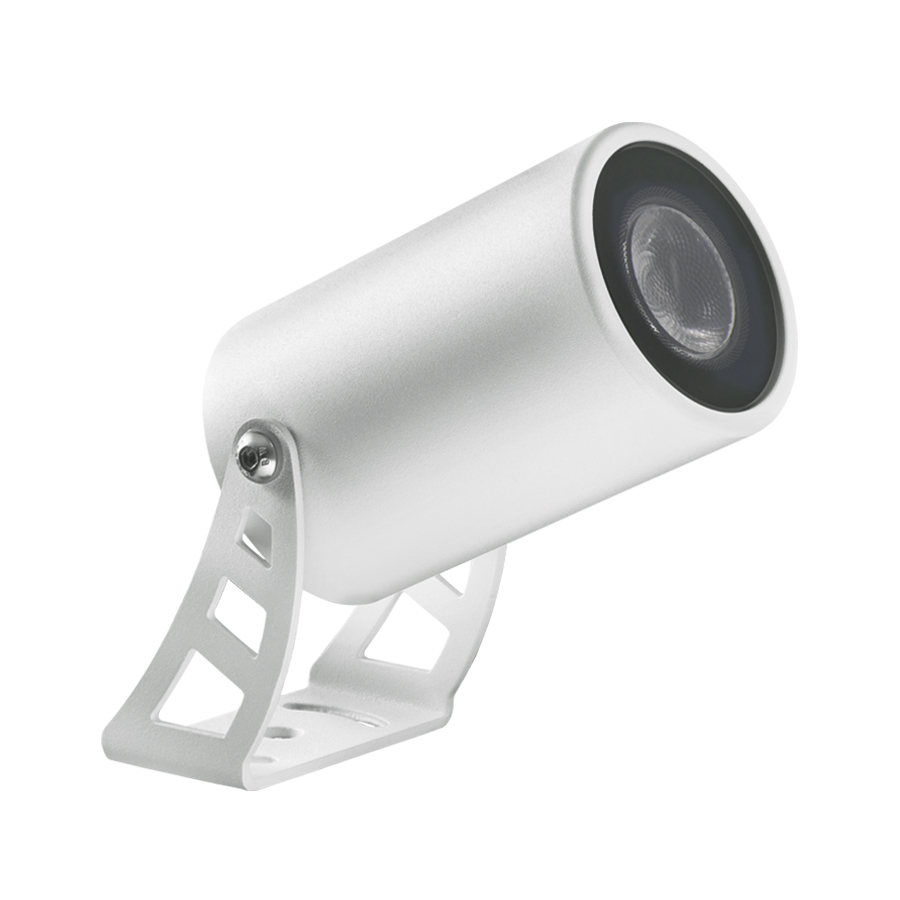

Spot 2.4

projector for outdoor applications - 8W 230Vac - Ø60x124 mm

Generate code

Technical data

Print technical data

Updated to CF2410000050LE

kg 0,70
IP66
IK07

Installation	projector for outdoor applications
Power consumption	8W
Power supply	230Vac
Lumen output at source	586 lm (3000K)
Delivered lumen output	515 lm (3000K, 34°)
Datasheet	Spot 2.4 code: CF2410000050LE projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 586 lm (3000K); Delivered lumen output: 515 lm (3000K, 34°); 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C); LED colour: 3000K; Optics: 60°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754; Finishes: white finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003); RAL finish on request; Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP66; Impact resistance: IK07; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 700 g; Dimensions: Ø60x124 mm; Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012; Accessories: WB1001E Standard snoot - white, WB1002E Asymmetrical snoot - white, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1007E Spike with bracket for in-ground installation - h 800 mm - white; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSpot 2.4 code: CF2410000050LE projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: 8W Power supply: 230Vac Lumen output at source: 586 lm (3000K) Delivered lumen output: 515 lm (3000K, 34°) 1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C) LED colour: 3000K Optics: 60°: optical system consisting of a high-efficiency TIR lens CRI Colour Rendering Index: 80 Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754 Finishes: white finish obtained through an initial treatment of the material with ALODINE NT-E®, followed by a coat of epoxy paint and one of POLYESTER paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003) RAL finish on request Screen material: 4-mm-thick tempered, transparent extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches built-in power supply unit includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Ingress protection: IP66 Impact resistance: IK07 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 700 g Dimensions: Ø60x124 mm Energy efficiency class: A / A+ / A++ (integrated LED module) in accordance with UE 874/2012 Accessories: WB1001E Standard snoot - white, WB1002E Asymmetrical snoot - white, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m, WP1006E Spike with bracket for in-ground installation - h 500 mm - white, WP1007E Spike with bracket for in-ground installation - h 800 mm - white tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	1 power LED High Intensity, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour	3000K
Optics	60°
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in aluminium
Screen material	screen in serigraphed, tempered, transparent extra-clear glass
Finishes	white
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Ingress protection	IP66
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050LE
DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050LE
IES Photometric file Type
- Generic, for the product Spot 2.4
- Specific, for code CF2410000050LE
Energy label Language
- Italiano
- English
- Deutsch
- Español
- Russian
- Polski
- Nederlands
- Czech
- Slovak
- Portugues
- Français

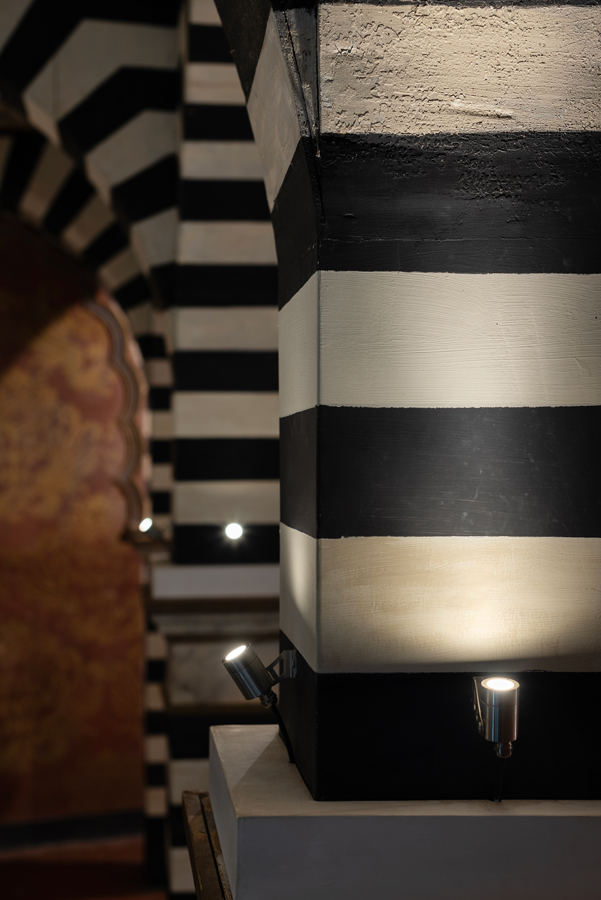

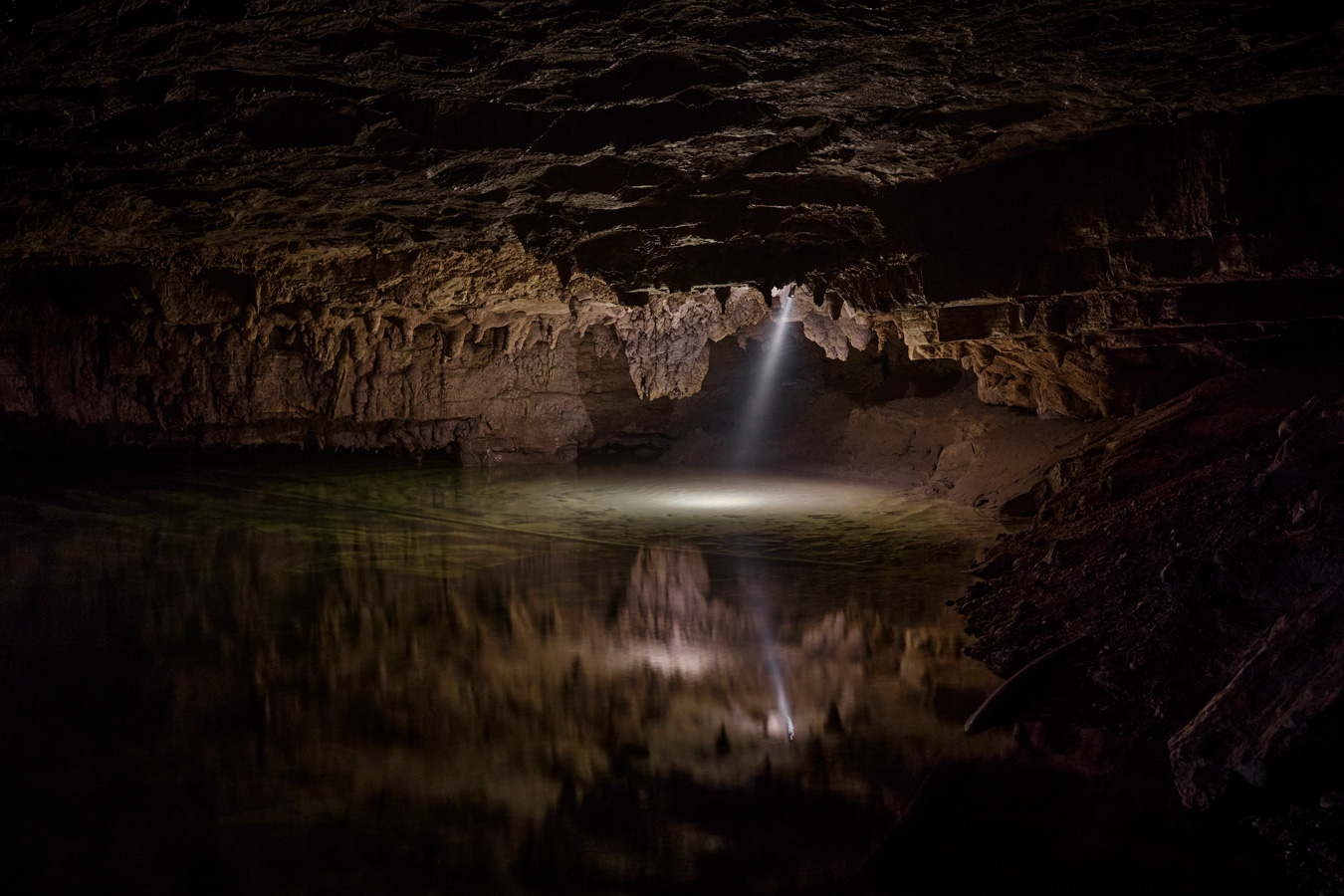

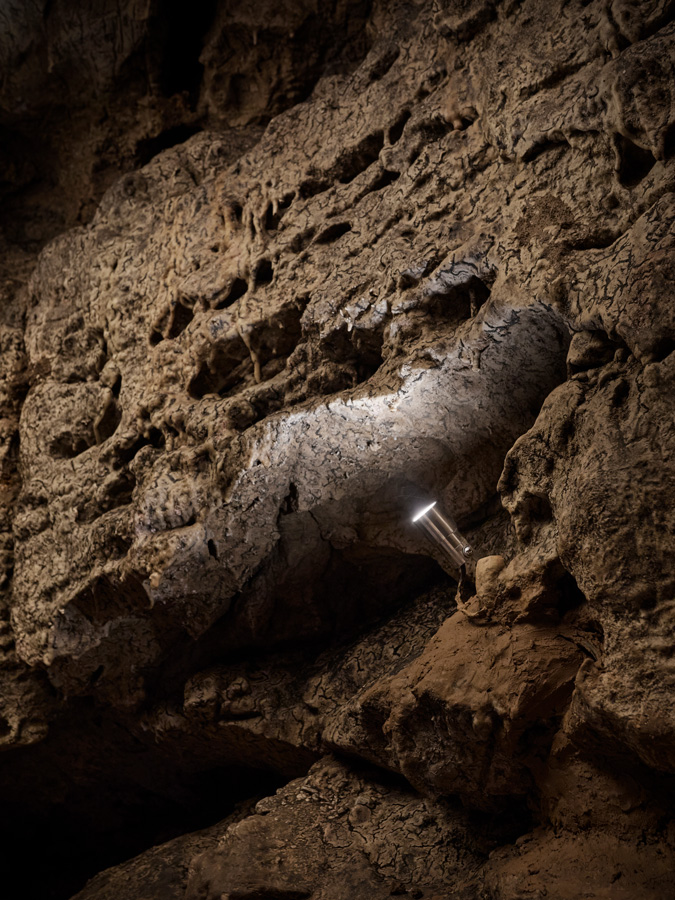

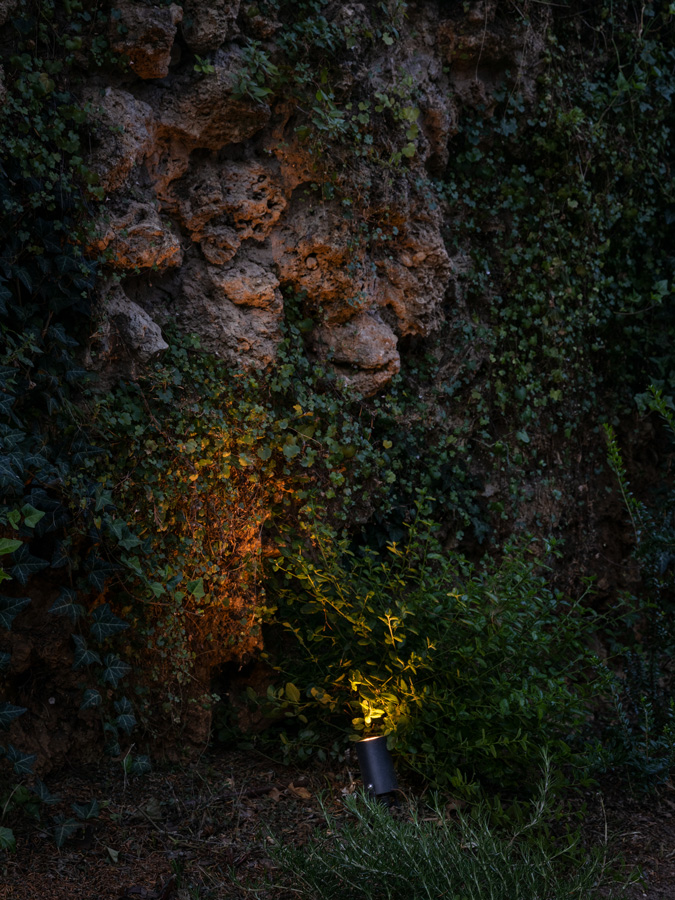

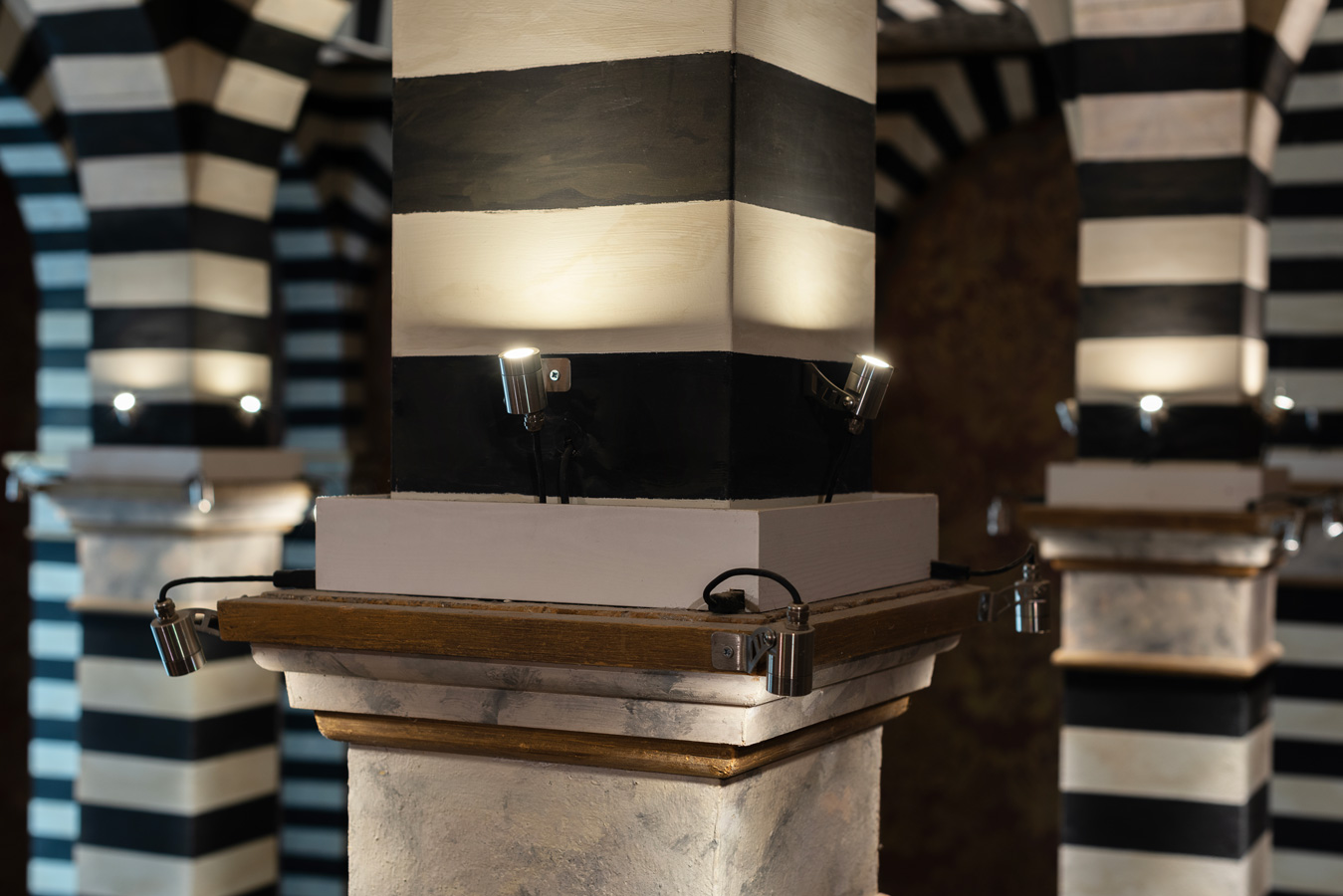

Gallery

Accessories and power supply units

Accessories (6)

Accessories for product code CF2410000050LE

Spikes and arms

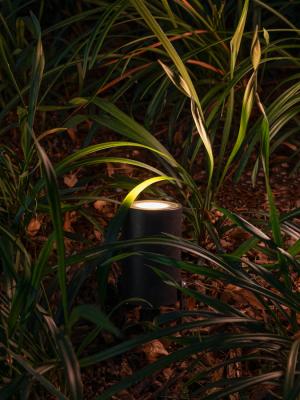

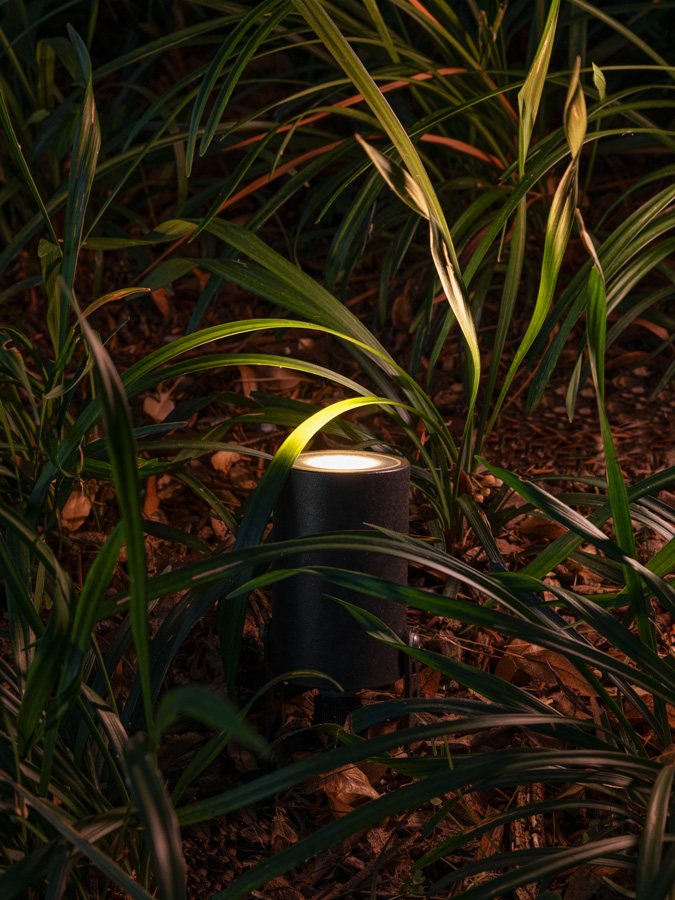

WP0100 Spike for in-ground installation	WP1006E Spike with bracket for in-ground installation - h 500 mm - white
WP1007E Spike with bracket for in-ground installation - h 800 mm - white

Snoots

WB1001E

Standard snoot - white

WB1002E

Asymmetrical snoot - white

Various accessories

WP1004

Fastener strap - 5 m

Power supply units (0)

Power supply units for product code CF2410000050LE

No power supply units

Control gear (0)

Control gear for product code CF2410000050LE

No controllers

Control input (0)

No control inputs
