Tak 1.1 Square outdoor ceiling fixtures, with diffuse light or optics

Technical data

Updated to TA11105FE

kg 2,36
IP65
IK06

Installation	ceiling mounted for outoor applications
Power consumption	10W
Power supply	230Vac
Lumen output at source	727 lm (3000K, 10W)
Delivered lumen output	495 lm (3000K, 30°, 10W)
Datasheet	Tak 1.1 code: TA11105FE ceiling mounted for outoor applications; surface mounted (ceiling); Power consumption: 10W; Power supply: 230Vac; Lumen output at source: 727 lm (3000K, 10W); Delivered lumen output: 495 lm (3000K, 30°, 10W); 5 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 30°; CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: white (RAL 9003); RAL finish on request; Screen material: screen in serigraphed, transparent and tempered extra-clear glass; built-in power supply unit; connection box with 0,30 m cable; Ingress protection: IP65; Impact resistance: IK06; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 2360 g; Dimensions: 147x147x100 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionTak 1.1 code: TA11105FE ceiling mounted for outoor applications surface mounted (ceiling) Power consumption: 10W Power supply: 230Vac Lumen output at source: 727 lm (3000K, 10W) Delivered lumen output: 495 lm (3000K, 30°, 10W) 5 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: 30° CRI Colour Rendering Index: 80 Body material: body in die-cast aluminium Finishes: white (RAL 9003) RAL finish on request Screen material: screen in serigraphed, transparent and tempered extra-clear glass built-in power supply unit connection box with 0,30 m cable Ingress protection: IP65 Impact resistance: IK06 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 2360 g Dimensions: 147x147x100 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling)
Number and type of LED	5 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	30°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	white
Power supply unit	built-in power supply unit
Power cables	connection box with 0,30 m cable
Ingress protection	IP65
Impact resistance	IK06
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Constant-current or constant-voltage power supply for remote DALI control

Accessories and power supply units

Accessories (0)

Accessories for product code TA11105FE

No accessories

Power supply units (0)

Power supply units for product code TA11105FE

No power supply units

Control gear (0)

Control gear for product code TA11105FE

No controllers

Control input (0)

No control inputs

Tak 1.1

Generate code

Technical data

Read more

Close

Customize this product

Possible customizations:

Download

Gallery

Accessories and power supply units

Accessories (0)

Power supply units (0)

Control gear (0)

Control input (0)

Projects

Residential

Residential building

Retail

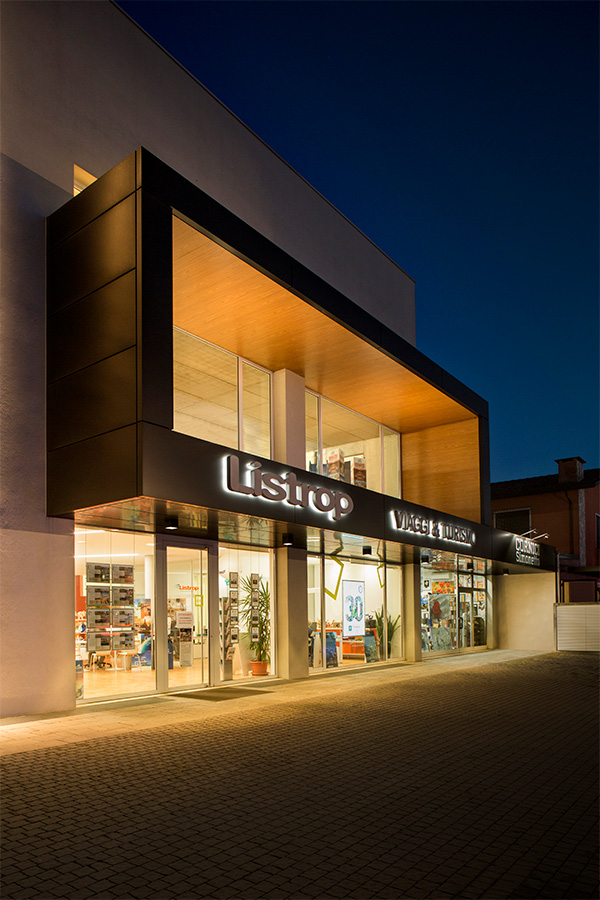

Listrop Viaggi & Turismo

Residential

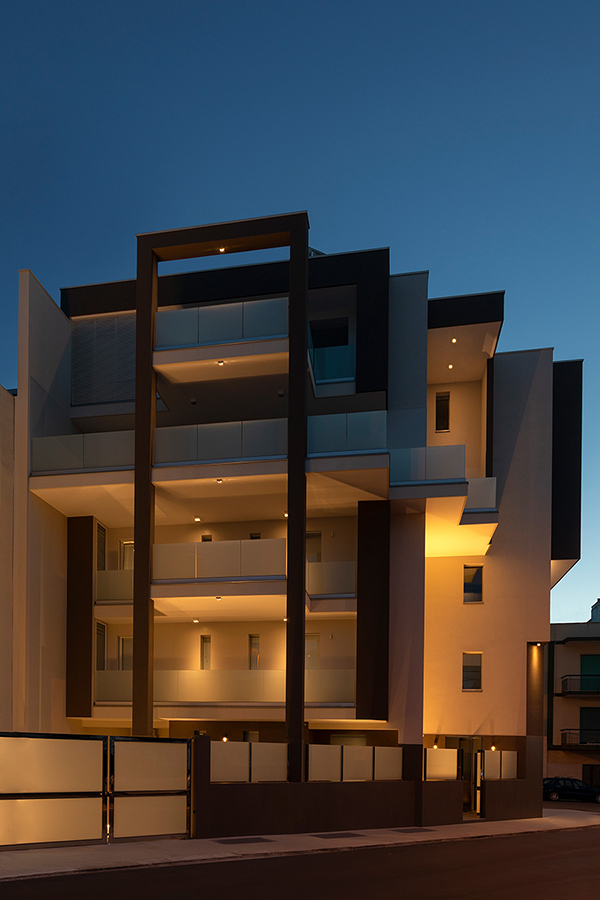

Ponte de Pria Residence
