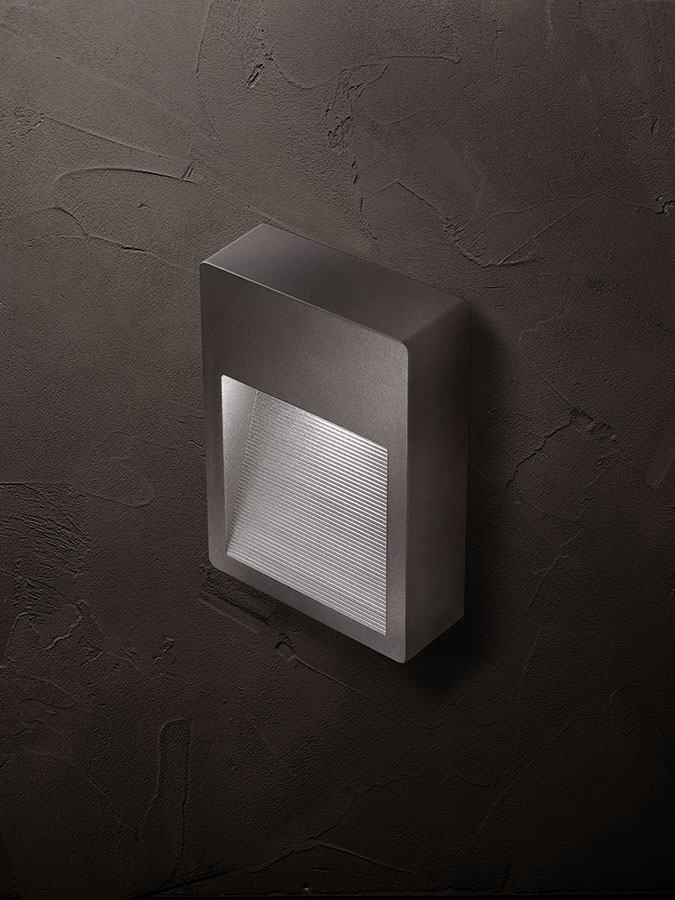

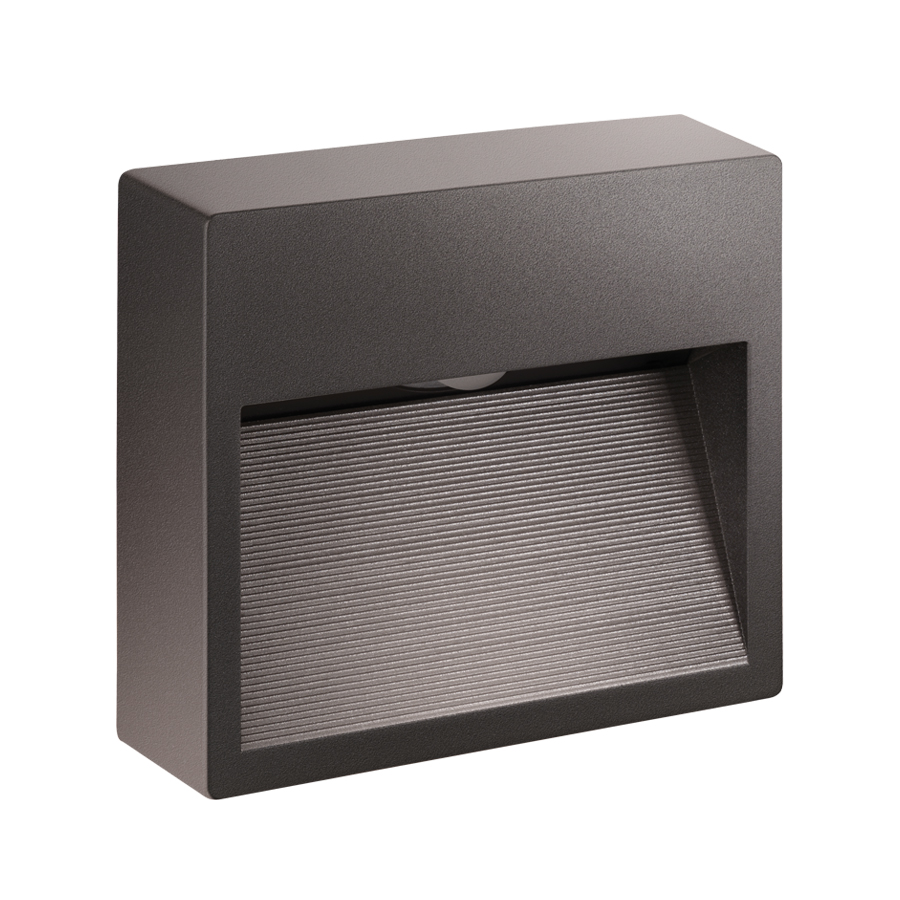

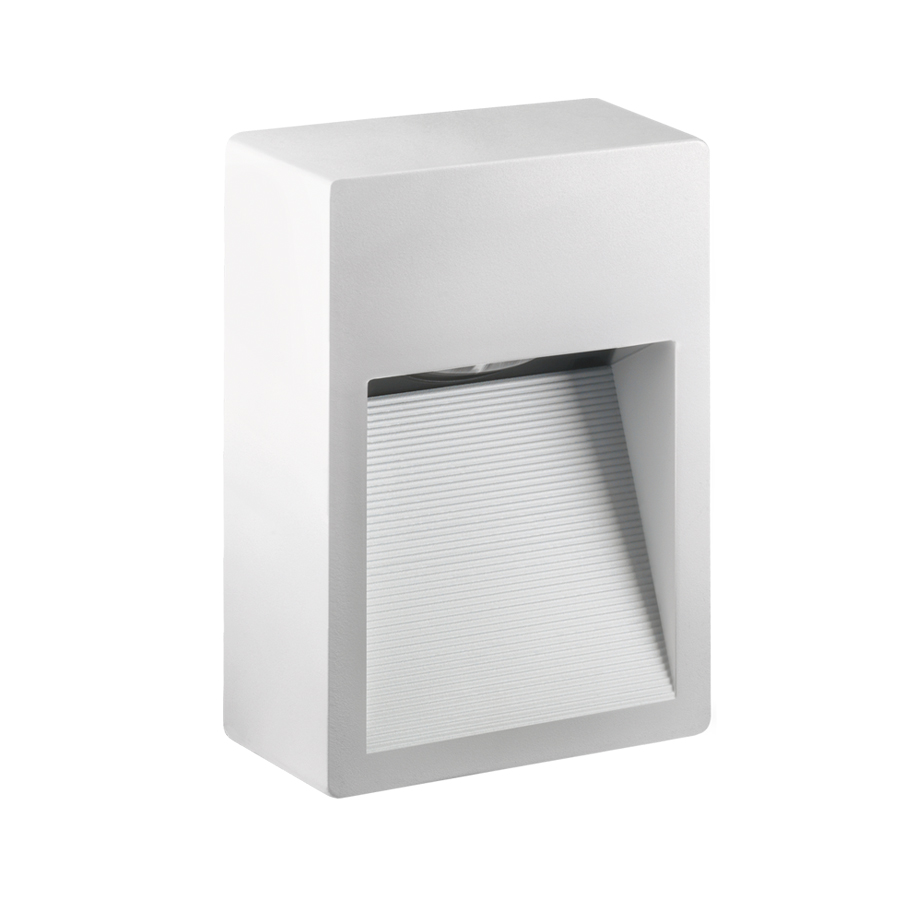

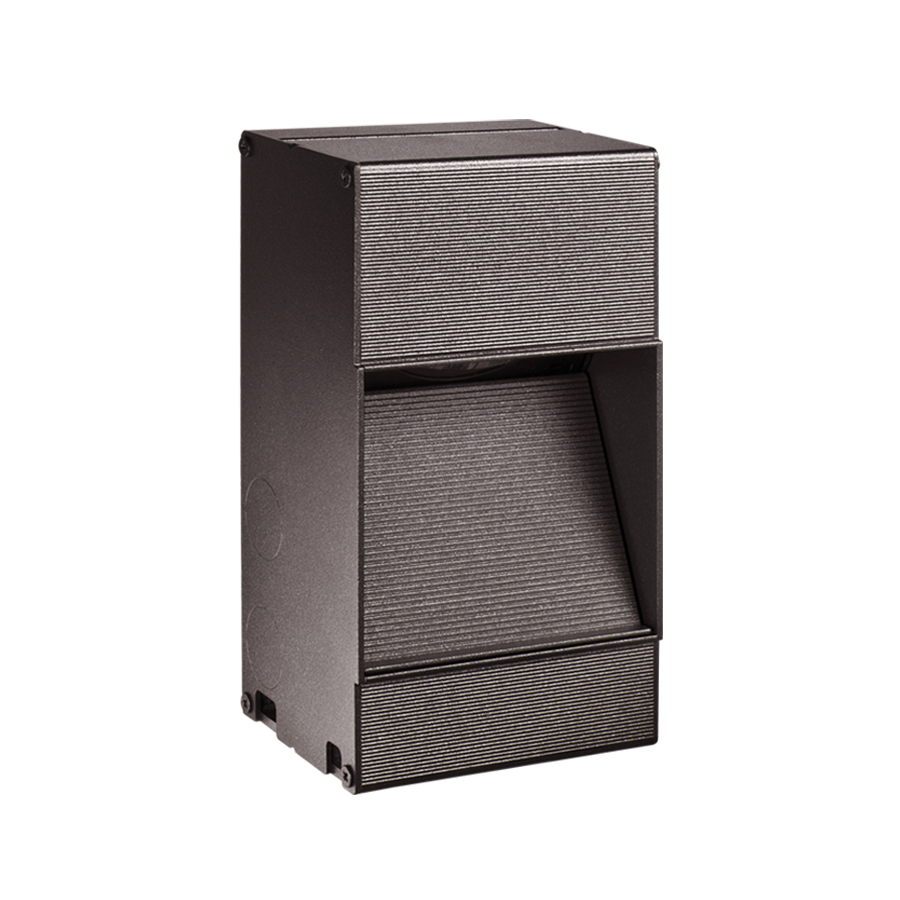

Pasito Mini 1.2

Step lights for outdoor applications

step light for outdoor applications - 6W 230Vac / 5W 24Vdc - 99x143 mm

surface mounted

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

only compatible with Casambi in the 24Vdc version

Technical data

Print technical data

Updated to PM121005AE

230Vac
kg 0,40
IP65
IK06

Installation	step light for outdoor applications
Power consumption	6W
Power supply	230Vac
Lumen output at source	383 lm (3000K, CRI 80)

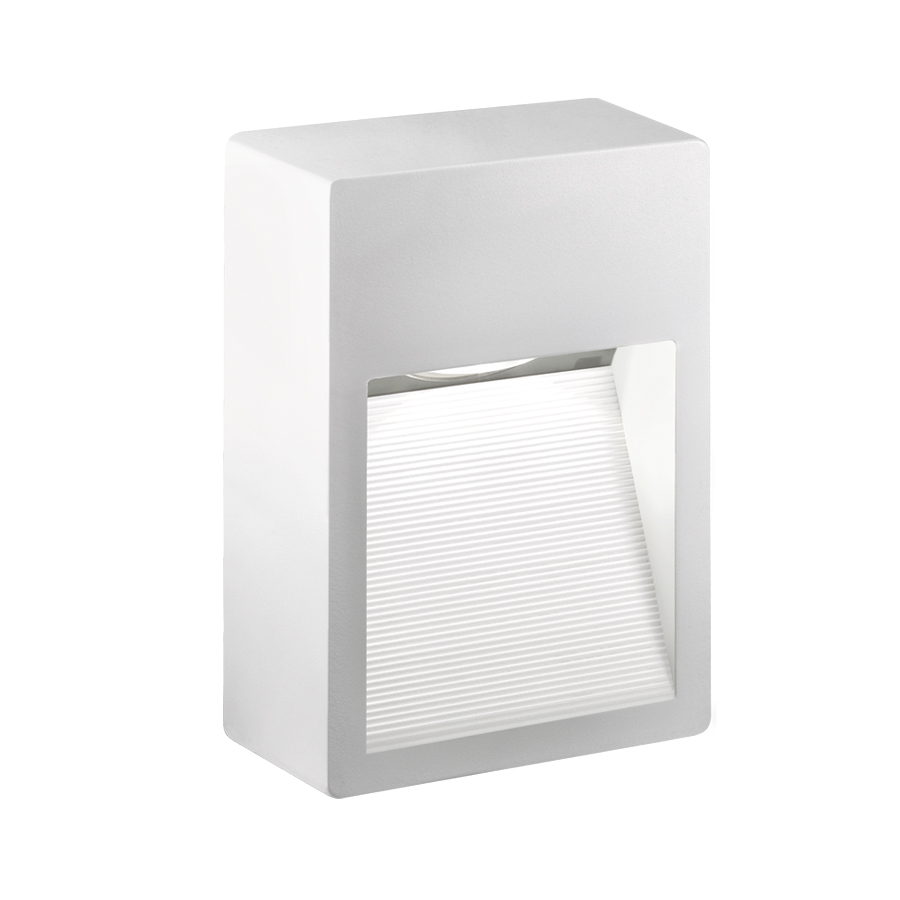

Delivered lumen output	214 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish)

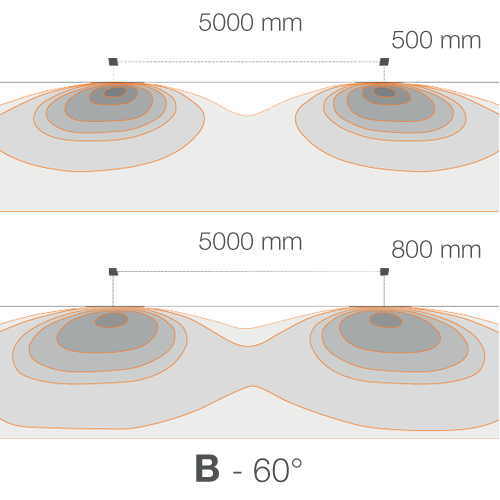

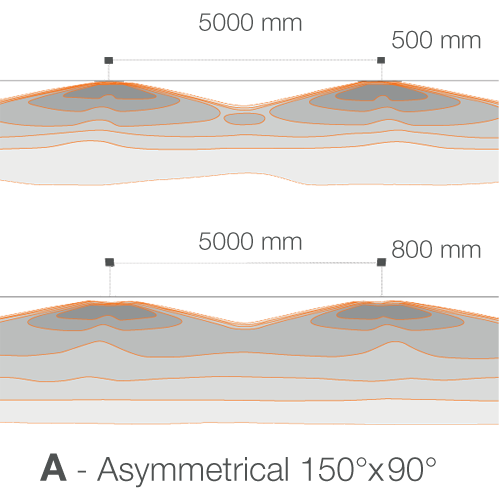

Datasheet	Pasito Mini 1.2 code: PM121005AE step light for outdoor applications; surface mounted (wall); Power consumption: 6W; Power supply: 230Vac; Lumen output at source: 383 lm (3000K, CRI 80); Delivered lumen output: 214 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish); 1 high-intensity power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical 150°x90°: optical system consisting of an asymmetrical hemispherical lens, installed at an angle and set back in the chamber to to create a controlled downward light beam, reducing light spill to a minimum; Upward flux fraction: 15,83% (asymmetrical 150°x90°, white, grey finish), 1,65% (asymmetrical 150°x90°, cor-ten, anthracite finish), 11,25% (60°, white, grey finish), 3,59% (60°, cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body made of technopolymer with high resistance to impact and sub-zero temperatures, and heat sink made of aluminium to optimize heat dissipation; Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003); RAL finish on request; power supply unit included; includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm; Control system: ON/OFF; Ingress protection: IP65; Impact resistance: IK06; Casambi control using the Casambi app with dedicated electronics; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class II; Weight: 400 g; Dimensions: 99x46x143 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPasito Mini 1.2 code: PM121005AE step light for outdoor applications surface mounted (wall) Power consumption: 6W Power supply: 230Vac Lumen output at source: 383 lm (3000K, CRI 80) Delivered lumen output: 214 lm (3000K, 150°x90° asymmetrical, CRI 80, white finish) 1 high-intensity power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: asymmetrical 150°x90°: optical system consisting of an asymmetrical hemispherical lens, installed at an angle and set back in the chamber to to create a controlled downward light beam, reducing light spill to a minimum Upward flux fraction: 15,83% (asymmetrical 150°x90°, white, grey finish), 1,65% (asymmetrical 150°x90°, cor-ten, anthracite finish), 11,25% (60°, white, grey finish), 3,59% (60°, cor-ten, anthracite finish) CRI Colour Rendering Index: 80 Body material: body made of technopolymer with high resistance to impact and sub-zero temperatures, and heat sink made of aluminium to optimize heat dissipation Finishes: white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector (RAL 9003) RAL finish on request power supply unit included includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm Control system: ON/OFF Ingress protection: IP65 Impact resistance: IK06 Casambi control using the Casambi app with dedicated electronics Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class II Weight: 400 g Dimensions: 99x46x143 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (wall)
Number and type of LED	1 high-intensity power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	asymmetrical 150°x90°
CRI Colour Rendering Index	80
Body material	body in technopolymer and aluminium
Finishes	white
Power supply unit	power supply unit included
Power cables	includes 0.20 m neoprene cable, H05RN-F 2x1.00 Ø7 mm
Control system	ON/OFF
Ingress protection	IP65
Impact resistance	IK06
Status	Available

Display all

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
TXT Specifications Type
- Generic, for the product Pasito Mini 1.2
- Specific, for code PM121005AE
DXF Technical drawing
BIM objects
LDT Photometric file Type
- Generic, for the product Pasito Mini 1.2
- Specific, for code PM121005AE
IES Photometric file Type
- Generic, for the product Pasito Mini 1.2
- Specific, for code PM121005AE
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (0)

Accessories related to product code PM121005AE

No accessories

Power supply units (0)

Power supply units for product code PM121005AE

No power supply units

Control gear (0)

Control gear for product code PM121005AE

No controllers

Control input (2)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g
