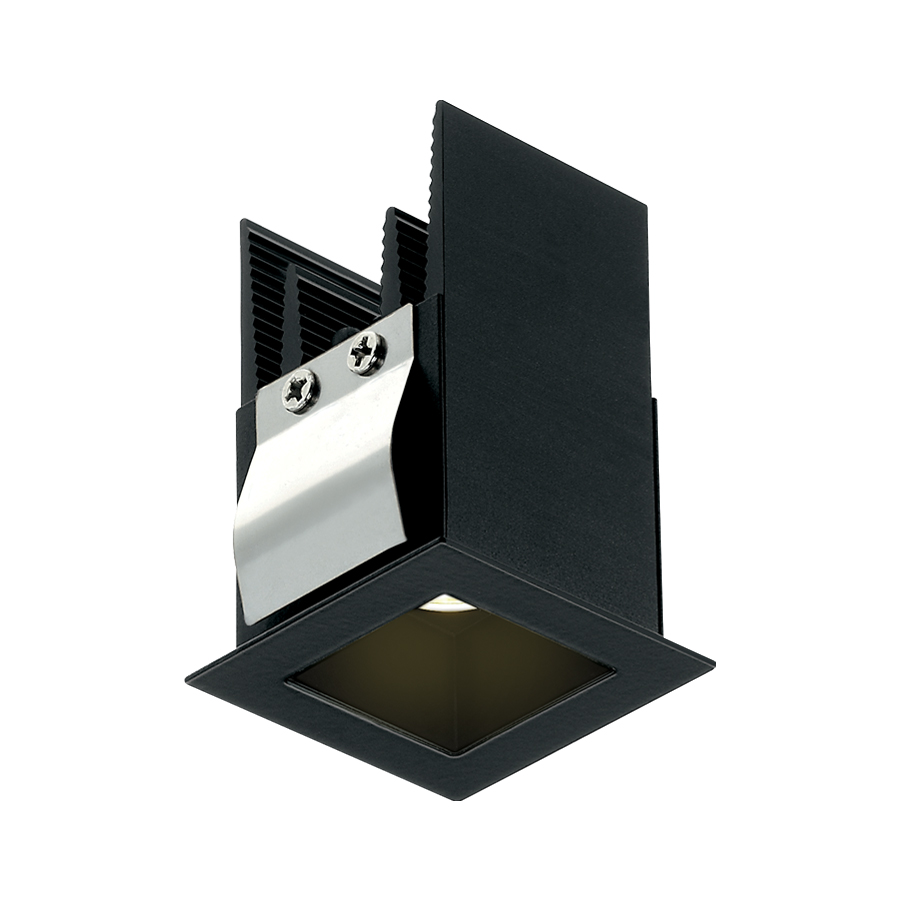

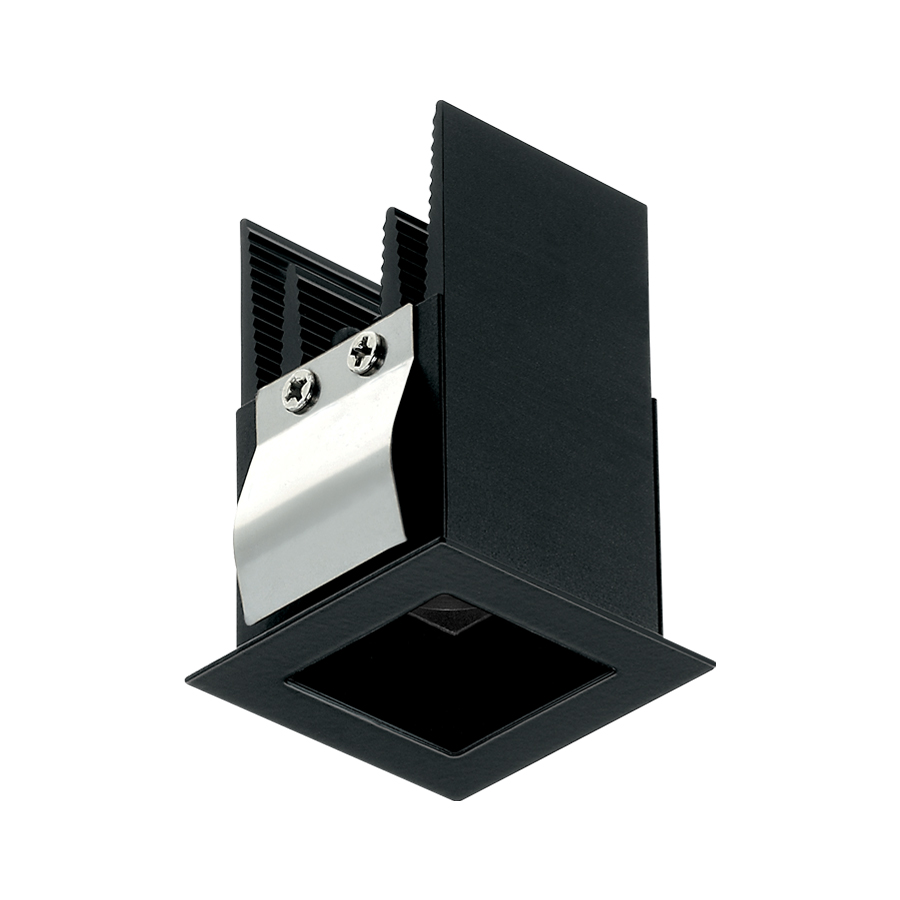

Bitpop 1.0

6.5W 24Vdc / 8W 230Vac - 49x49x71 mm

Two ways to install

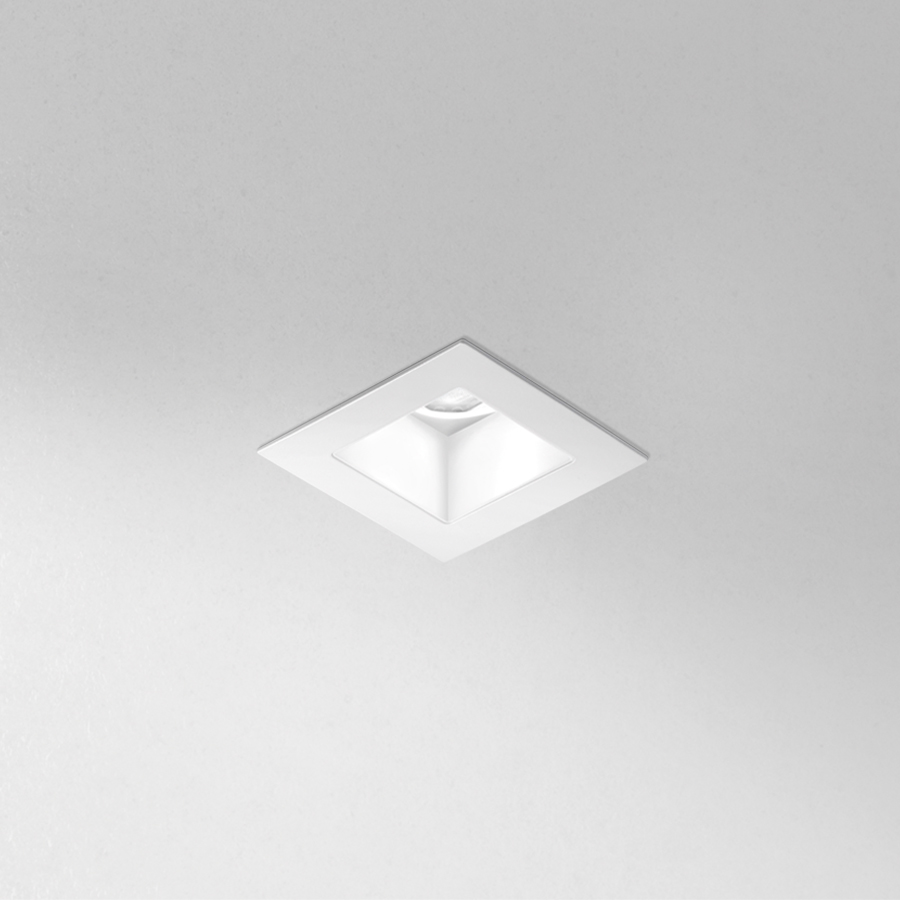

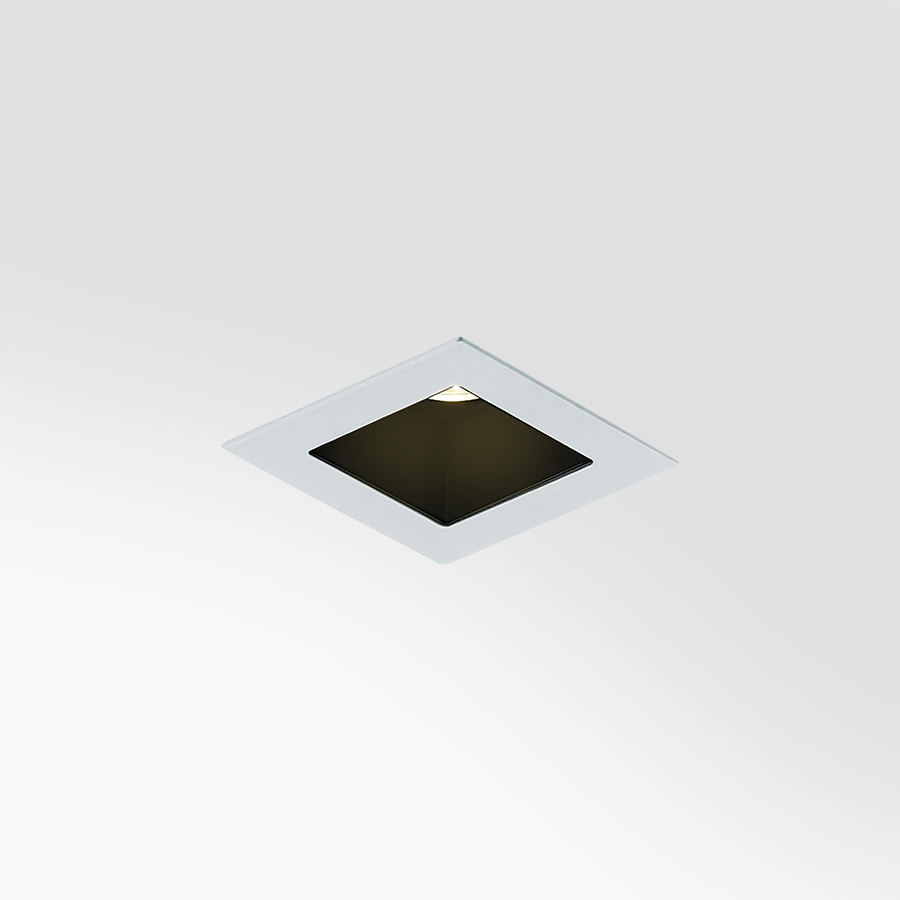

  • flush with the ceiling

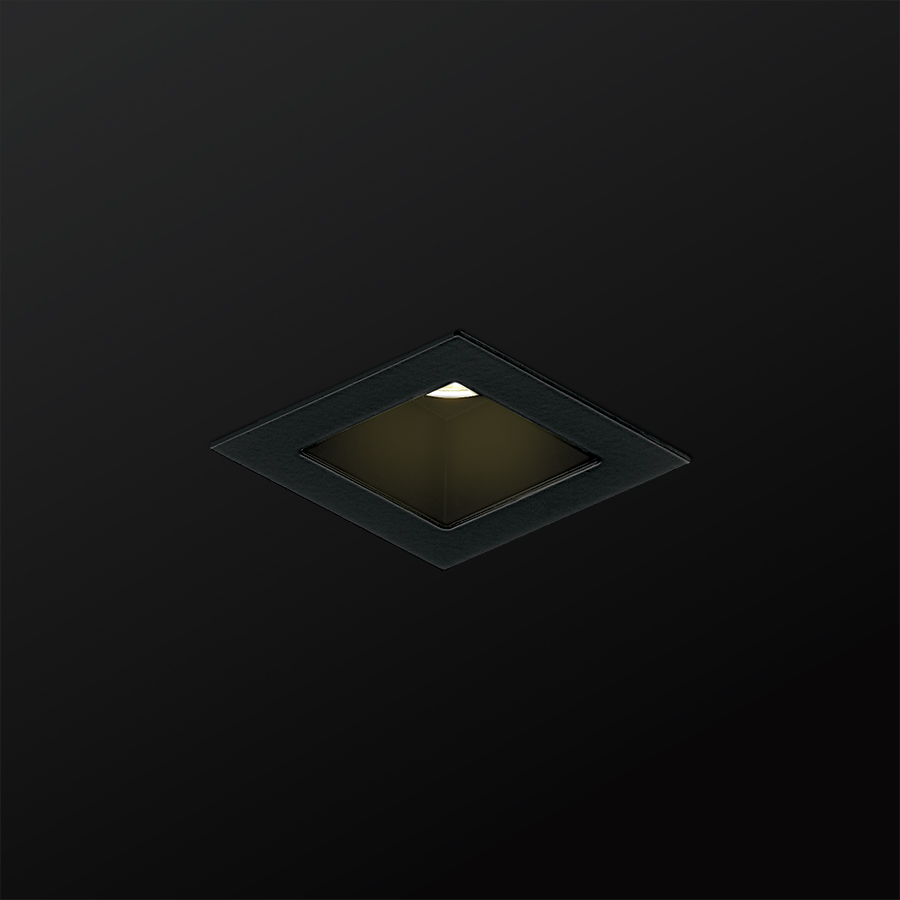

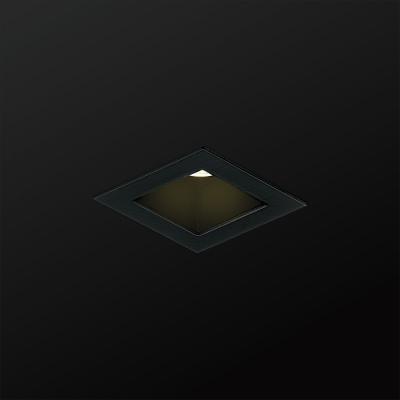

    flush with the ceiling

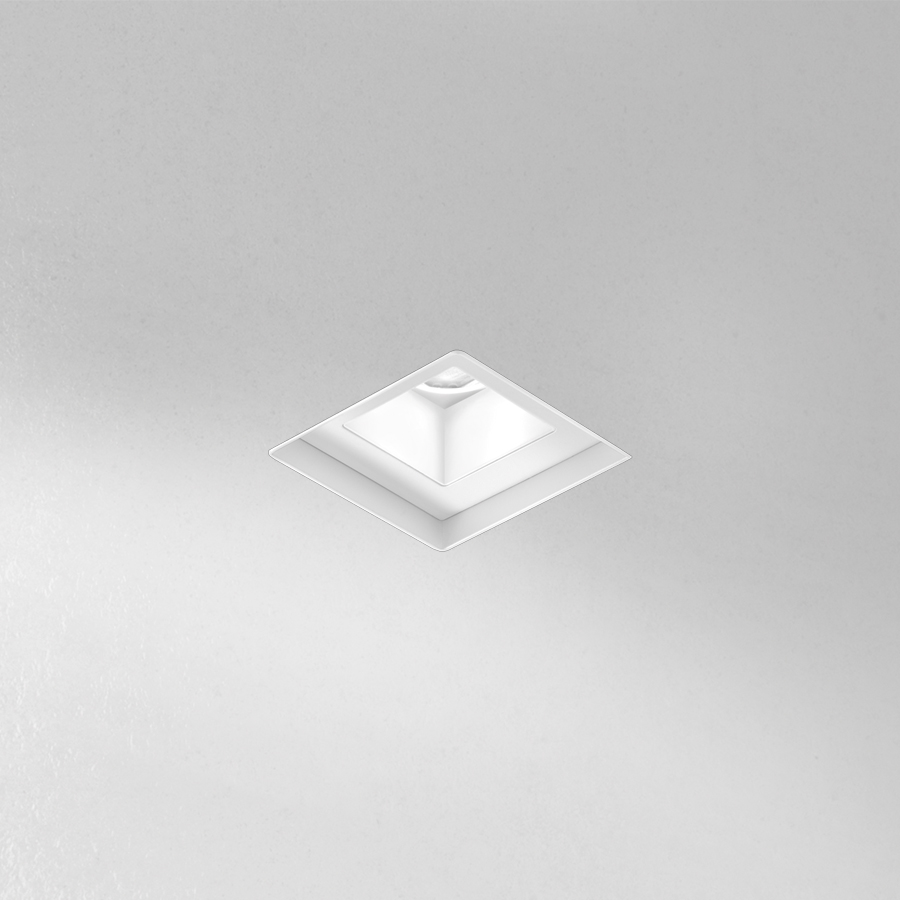

  • deep-set

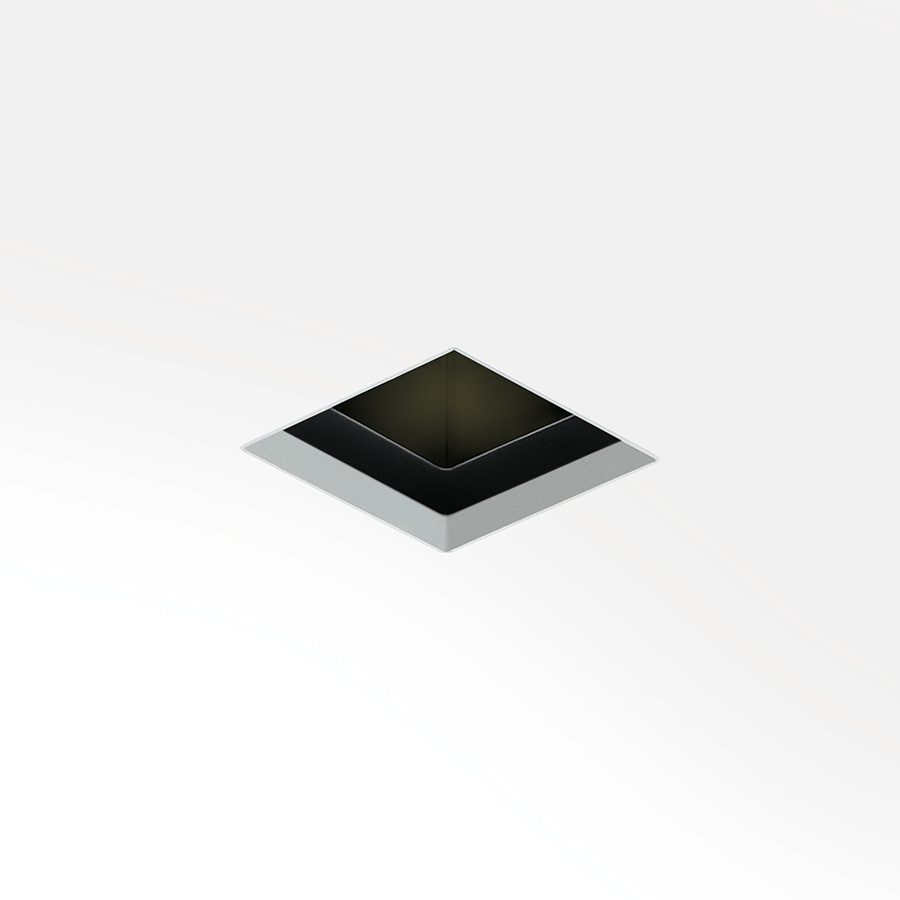

    deep-set

Generate code

Technical data

Print technical data

Updated to BP10101FFN0

Outer casing for deep-set installation not included
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class II
    230Vac
  • gross weight
    0,15 kg
  • IP40
  • IP44 installed
  • RAL finish on request
  • A/A+/A++

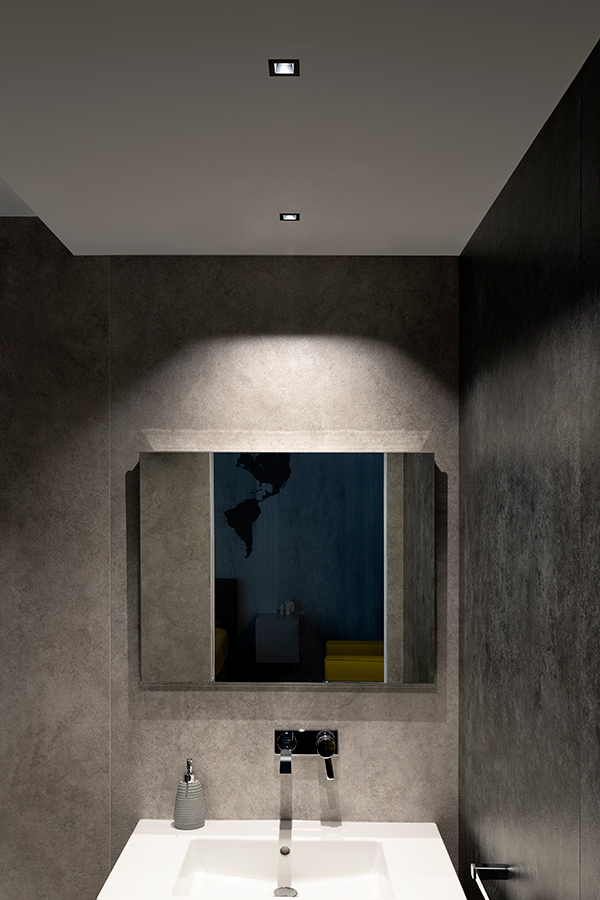

Installation recessed downlight for indoor applications
Power 8W
Power supply 230Vac
Lumen output at source 480 lm (3000K)
Delivered lumen output 335 lm (3000K, 30°)
Datasheet

Copied

Mounting recessed (ceiling: flush or deep set)
Number and type of LED 1 high-intensity power LED, 3-step MacAdam, 50 000h L85 B10 (Ta 25°C)
LED colour 2700K
Optics 30°
CRI 90
Body material body in black-anodized aluminium, trim in steel
Frame + optical comp. finish black - black
Power supply unit power supply unit included
Power cables includes 0.30 m cable
Control system ON/OFF
Ingress protection IP40, IP44 installed
Features UGR < 10 for 17° and 30° optics
Notes 2700K, 3000K: CRI 90,
4000K: CRI 80
Status Available
