Projectors for outdoor applications

Spot

Outdoor lighting

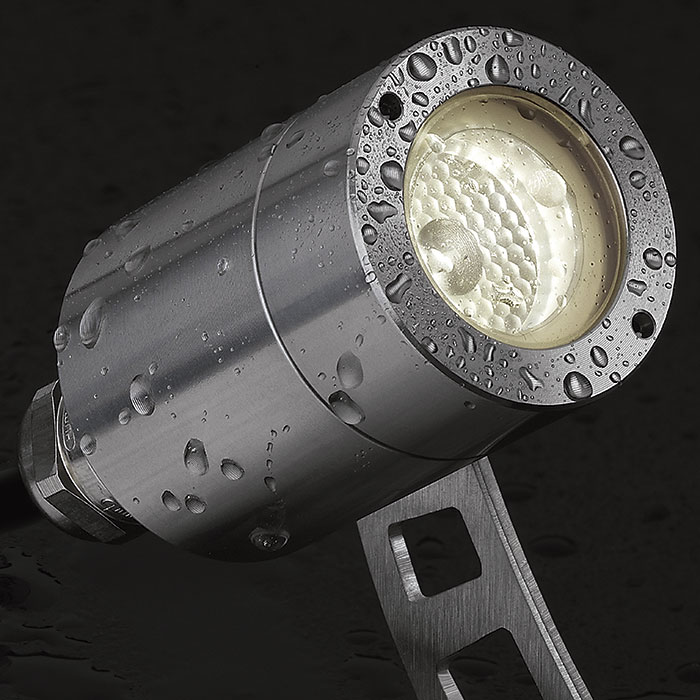

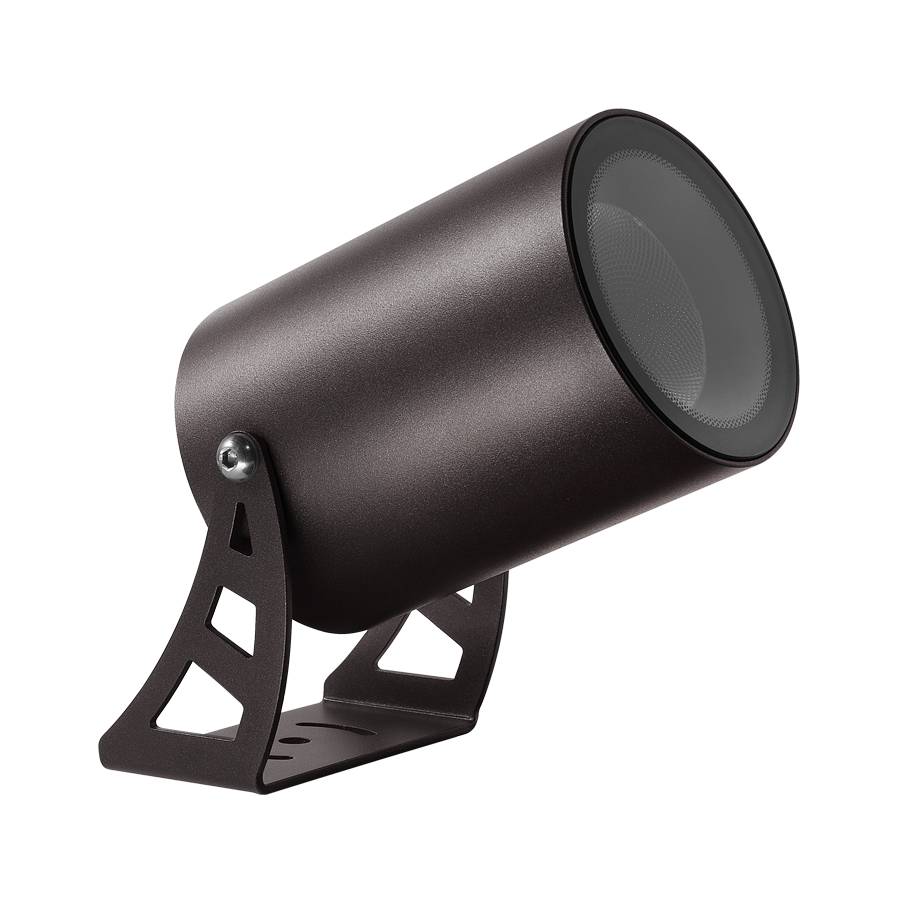

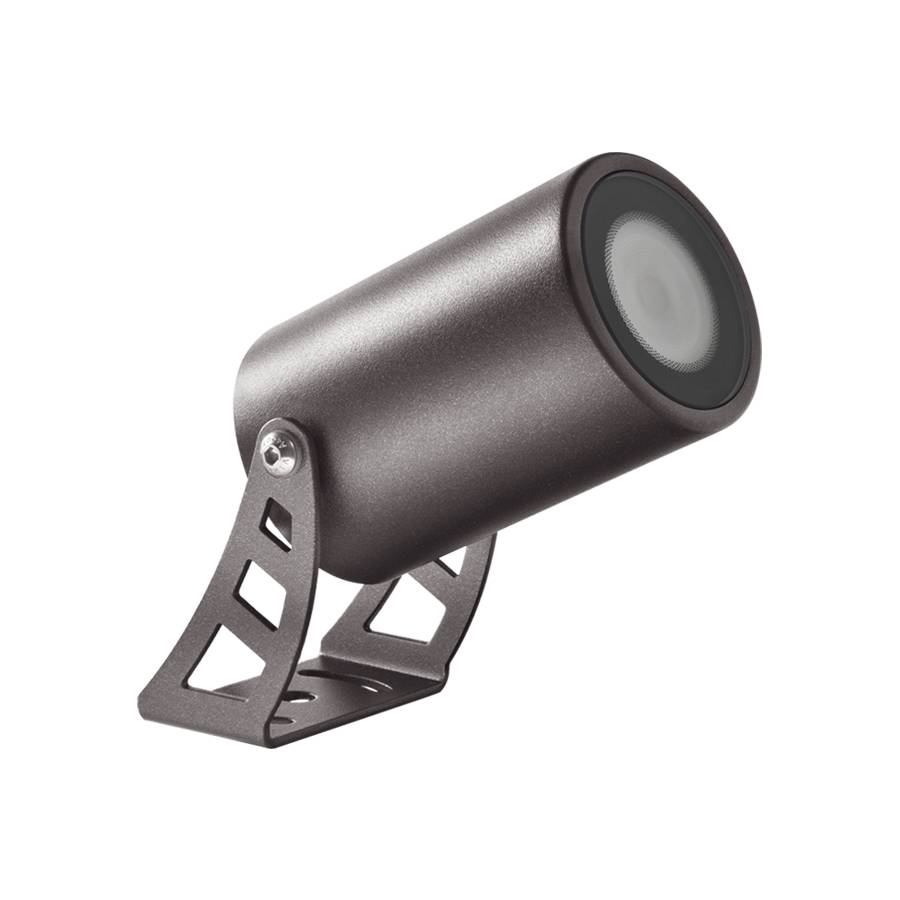

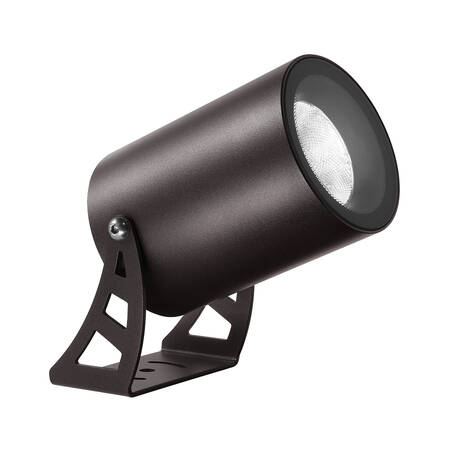

Characterized by a perforated bracket, Spot projectors range from the ultra-compact version – an AISI 316L stainless steel body with a diameter of just 30 mm and 2W of power – to more powerful versions, with a body in Anticorodal aluminium and 230Vac built-in power supply. The extreme resistance and reliability of this family makes it a safe and versatile choice for outdoor lighting. In addition to the white, anthracite and jasper green finishes, a customized RAL finish can be requested.


Versions 2.4, 3.4, 4.4 and 5.4 have a 230Vac built-in power supply.

  • Spot

    Version DimensionsPowerPower supplyLED colour
    Spot 1.0Ø30x57mmmax 2Wmax 500mA2700K, 3000K, 4000K, 5000K, blueDetails
    Spot 1.6Ø30x57mm2W24Vdc2700K, 3000K, 4000K, 5000K, blueDetails
    Spot 2.4Ø60x124 mm8W230Vac2700K, 3000K, 4000KDetails
    Spot 3.4Ø84x149 mm15W230Vac2700K, 3000K, 4000KDetails
    Spot 4.4Ø109x179 mm22W, 32W230Vac2700K, 3000K, 4000KDetails
    Spot 5.4Ø149x219 mm52W110-230Vac2700K, 3000K, 4000KDetails

    Spot

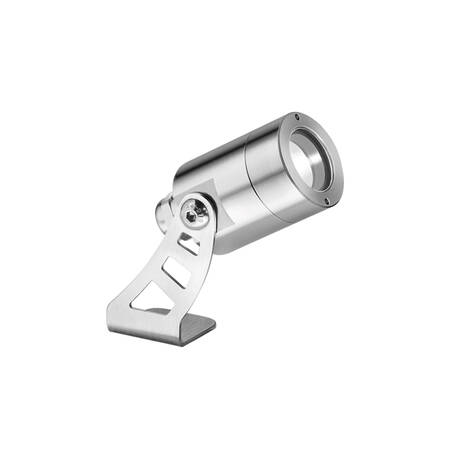

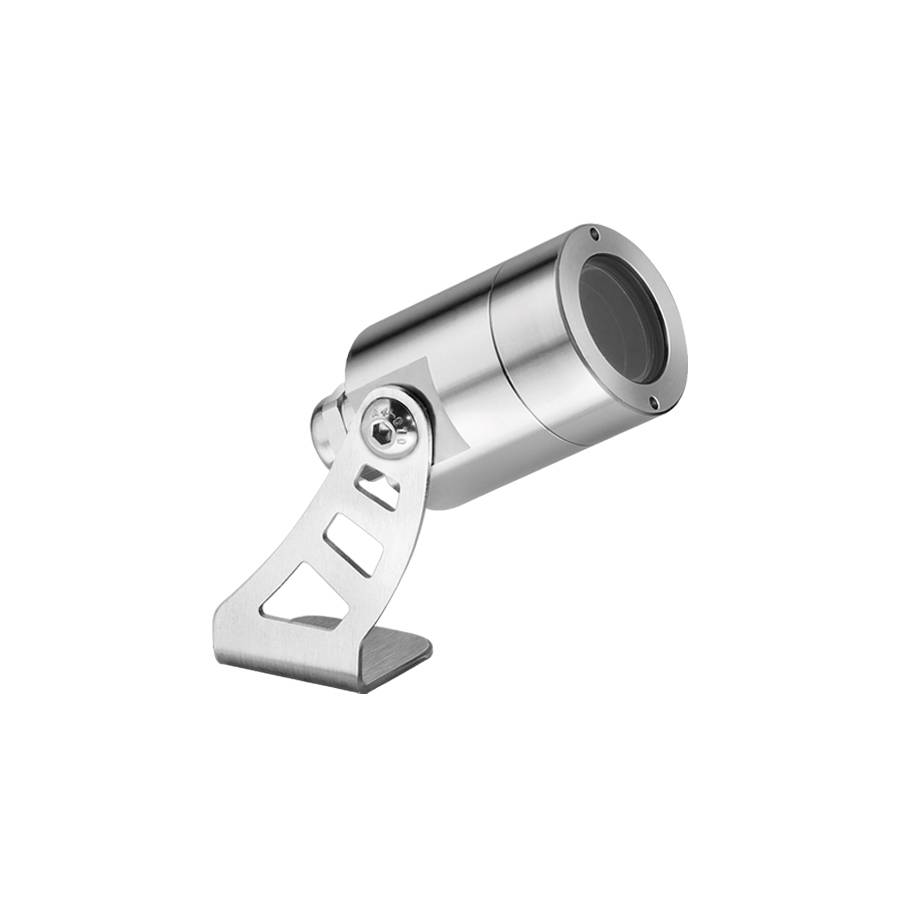

    • VersionSpot 1.0
    • DimensionsØ30x57mm
    • Powermax 2W
    • Power supplymax 500mA
    • LED colour2700K, 3000K, 4000K, 5000K, blue
    Details
    • VersionSpot 1.6
    • DimensionsØ30x57mm
    • Power2W
    • Power supply24Vdc
    • LED colour2700K, 3000K, 4000K, 5000K, blue
    Details

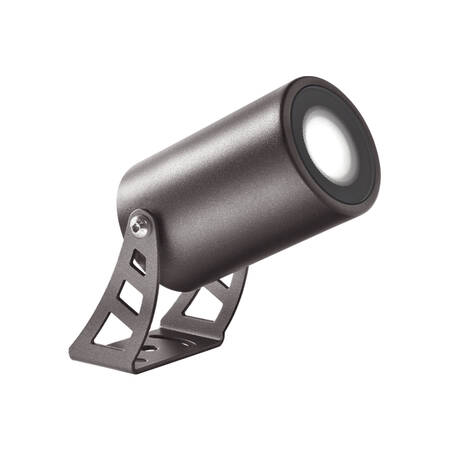

    • VersionSpot 2.4
    • DimensionsØ60x124 mm
    • Power8W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

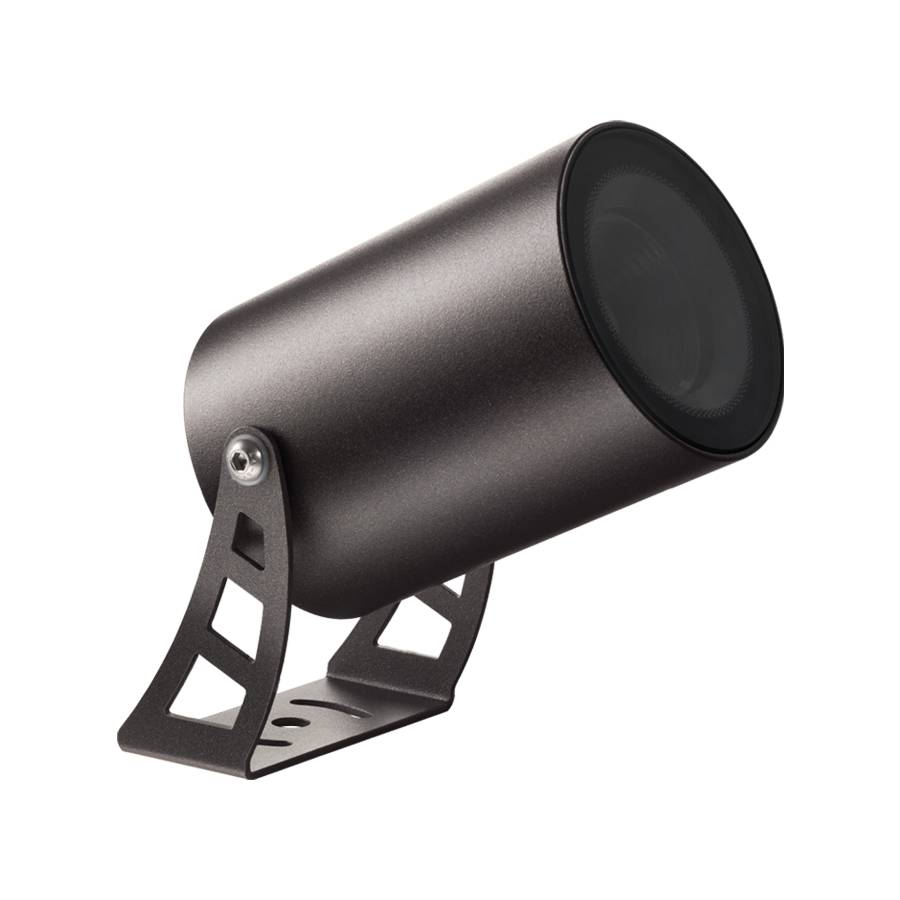

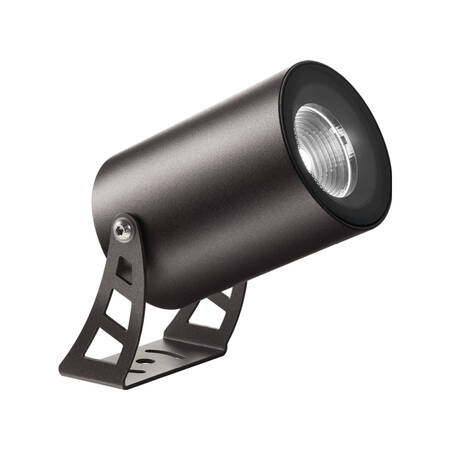

    • VersionSpot 3.4
    • DimensionsØ84x149 mm
    • Power15W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionSpot 4.4
    • DimensionsØ109x179 mm
    • Power22W, 32W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details

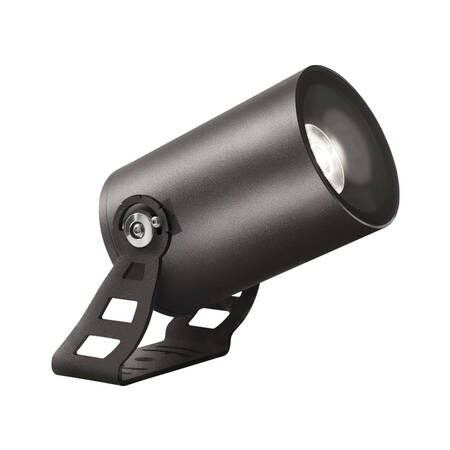

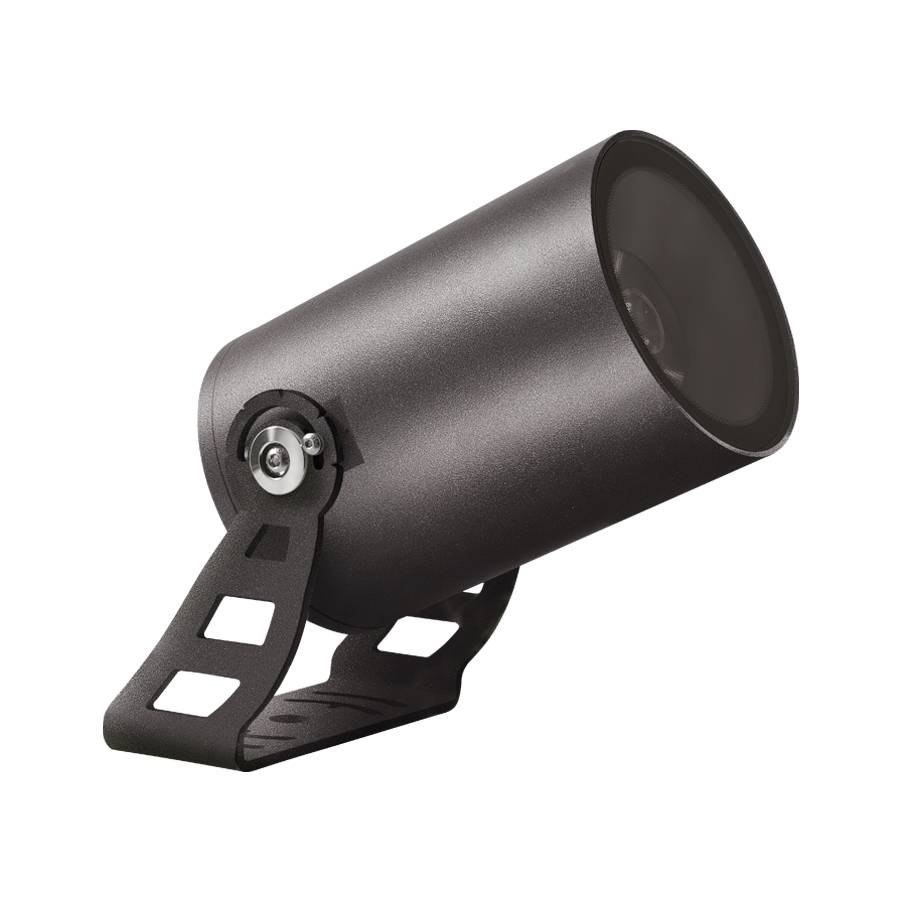

    • VersionSpot 5.4
    • DimensionsØ149x219 mm
    • Power52W
    • Power supply110-230Vac
    • LED colour2700K, 3000K, 4000K
    Details

Unique Selling Points

  • Protection systems

    IPS Intelligent Protection System

    PID Protective Impedance Device (Spot 2.4)

  • Suitable for outdoor installations

  • RAL finish on request

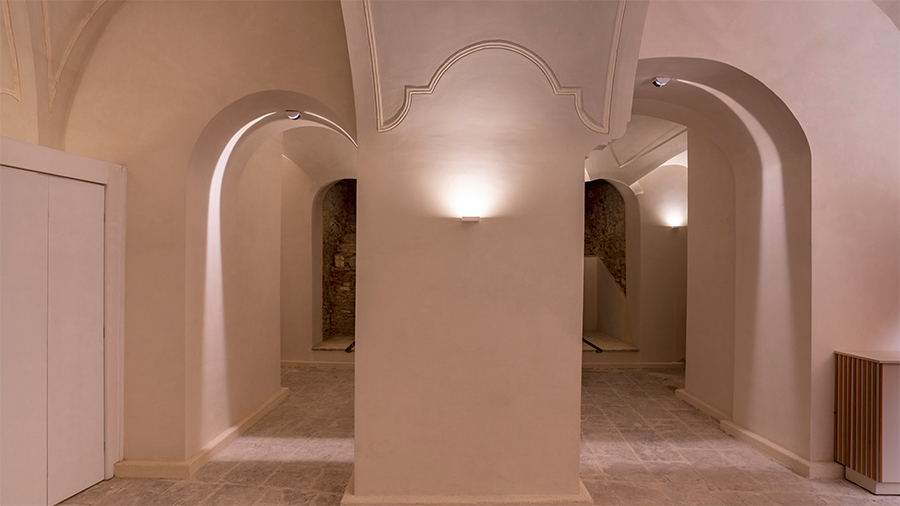

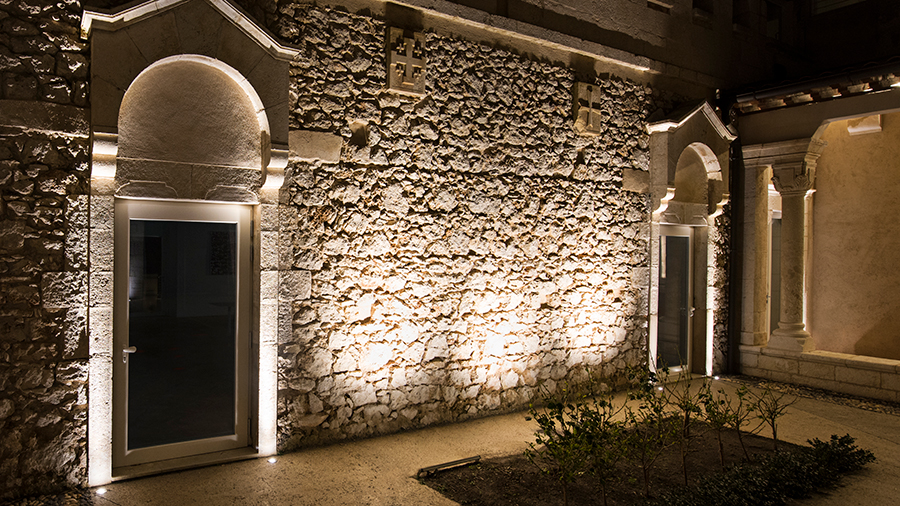

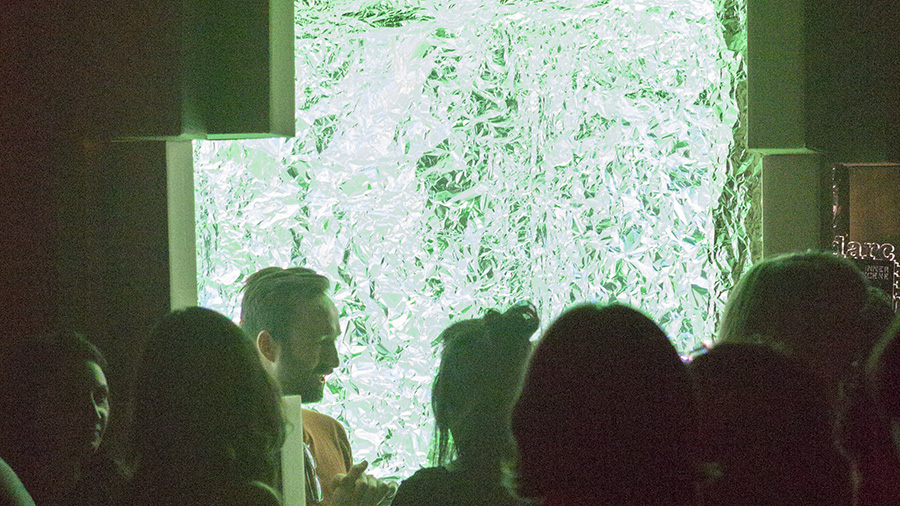

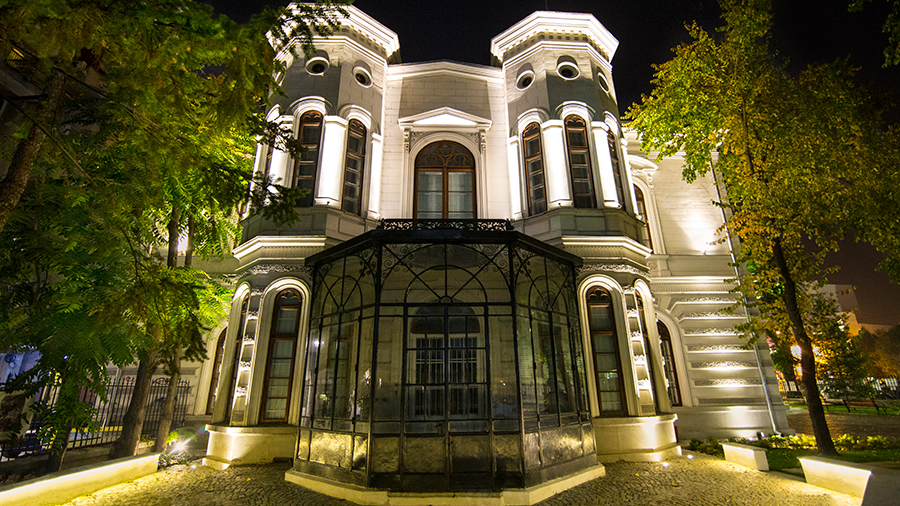

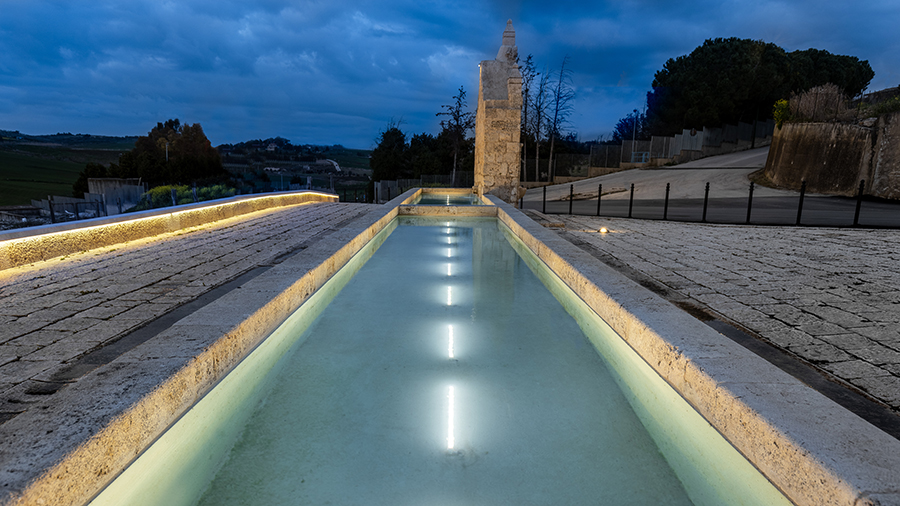

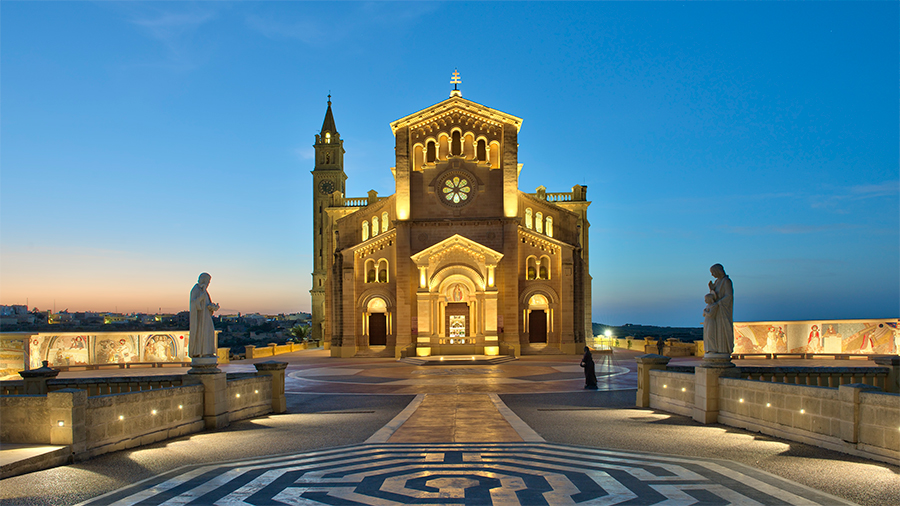

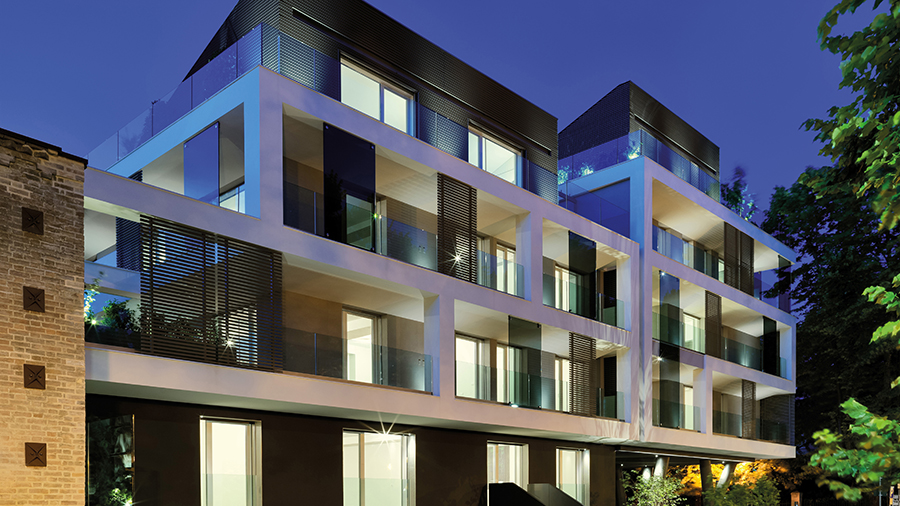

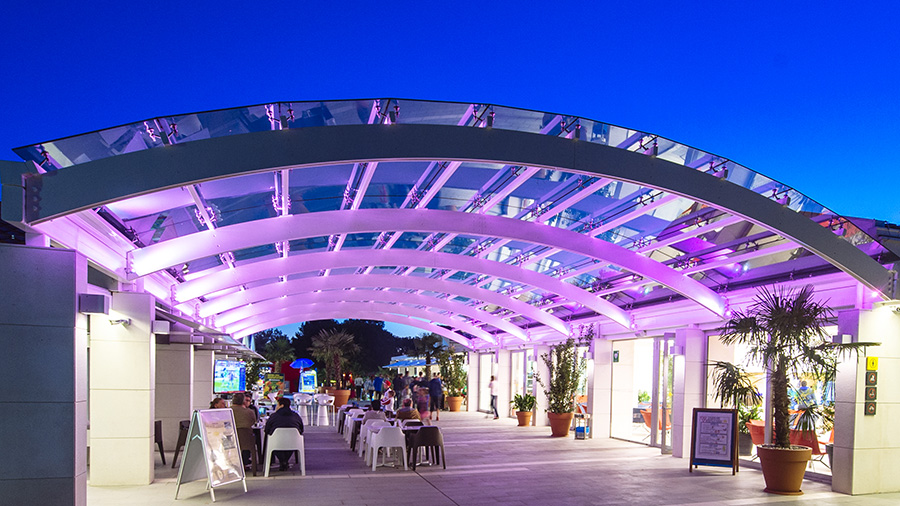

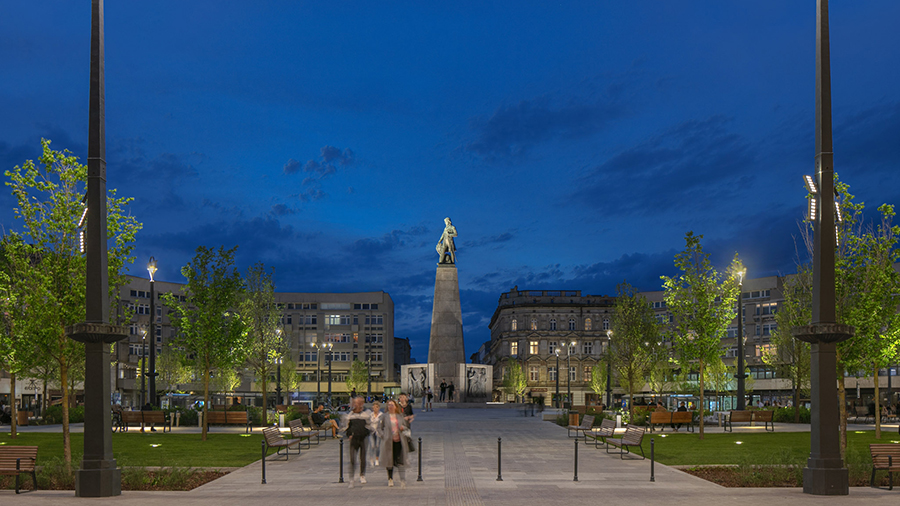

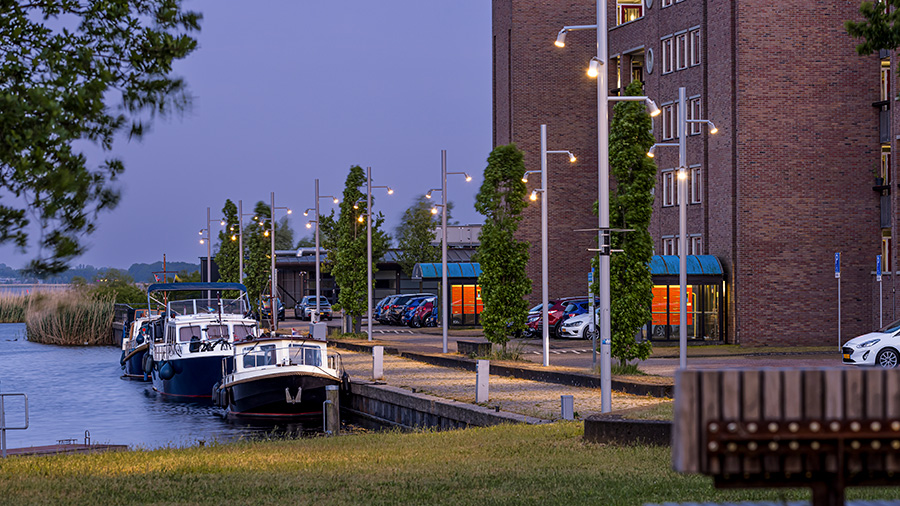

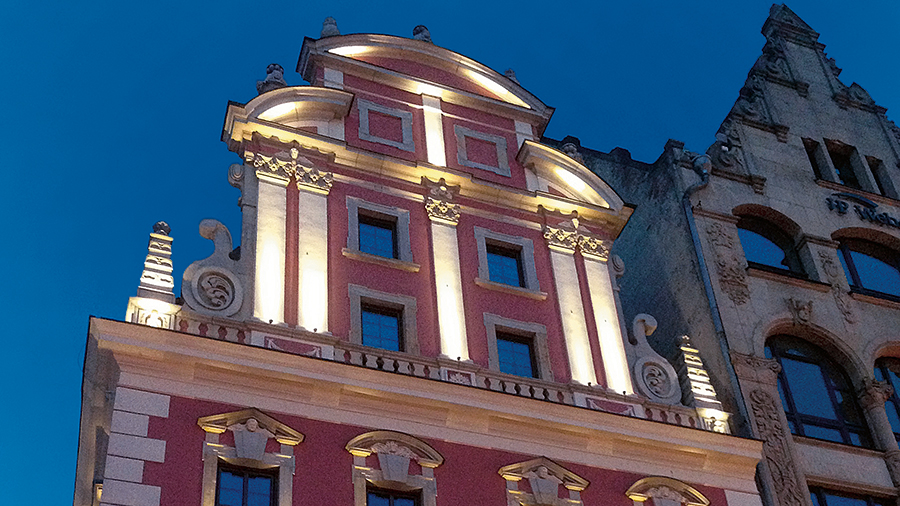

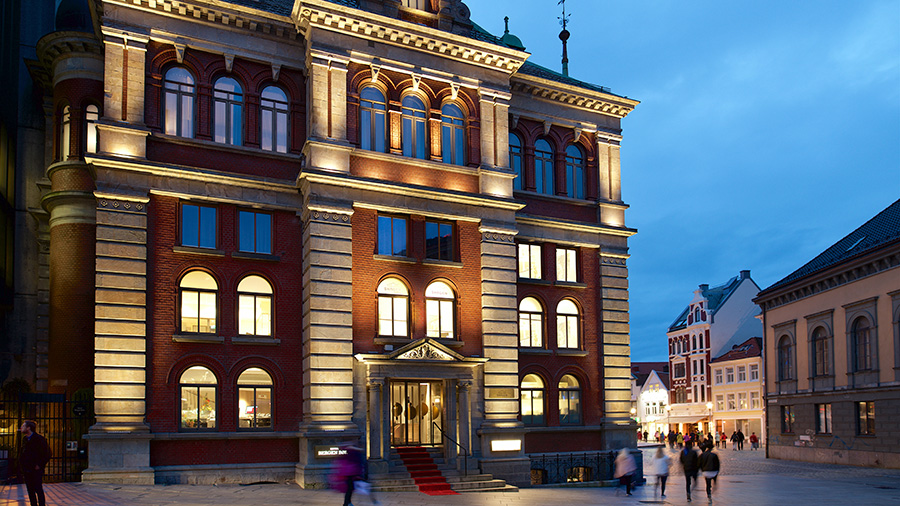

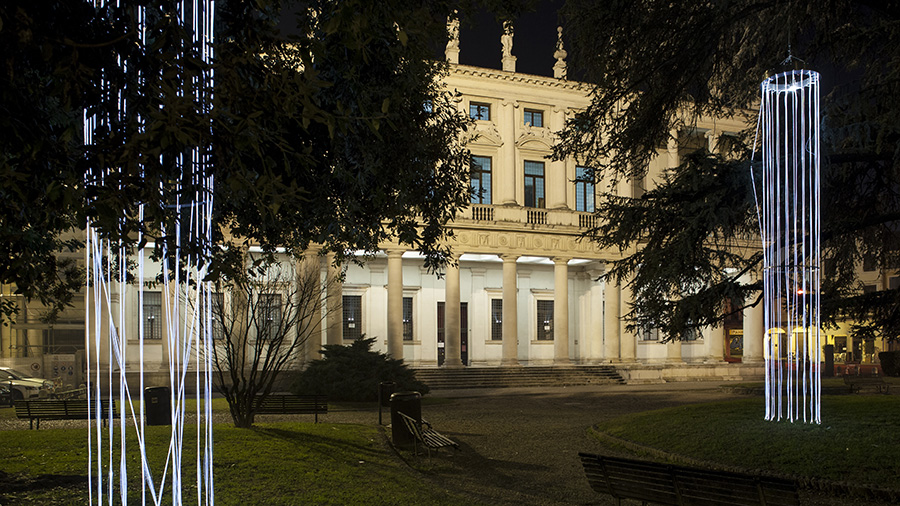

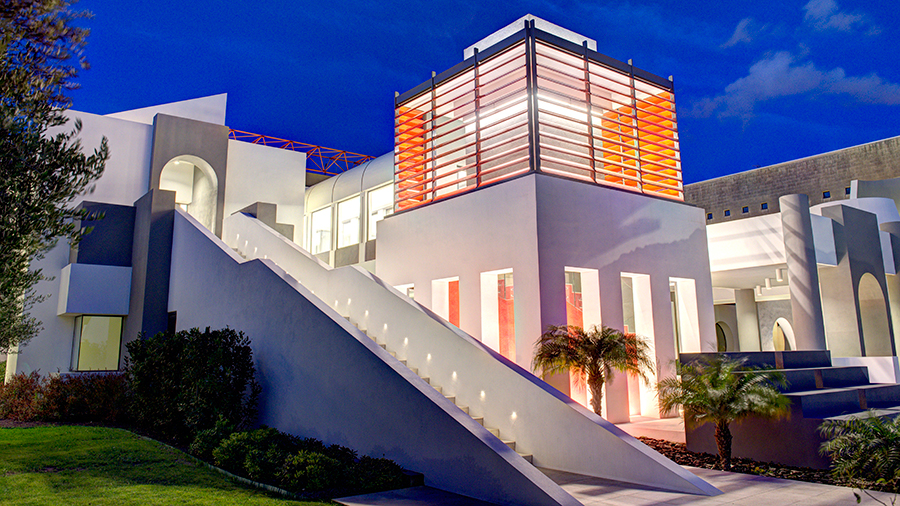

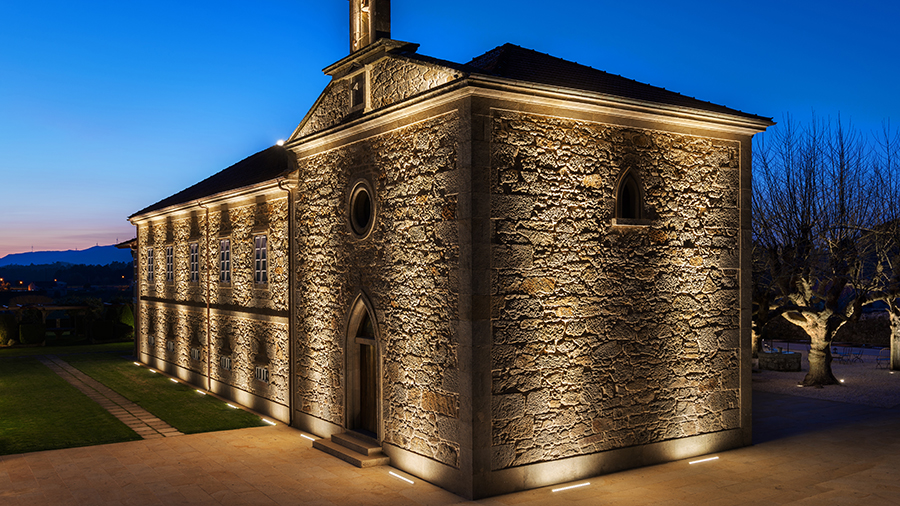

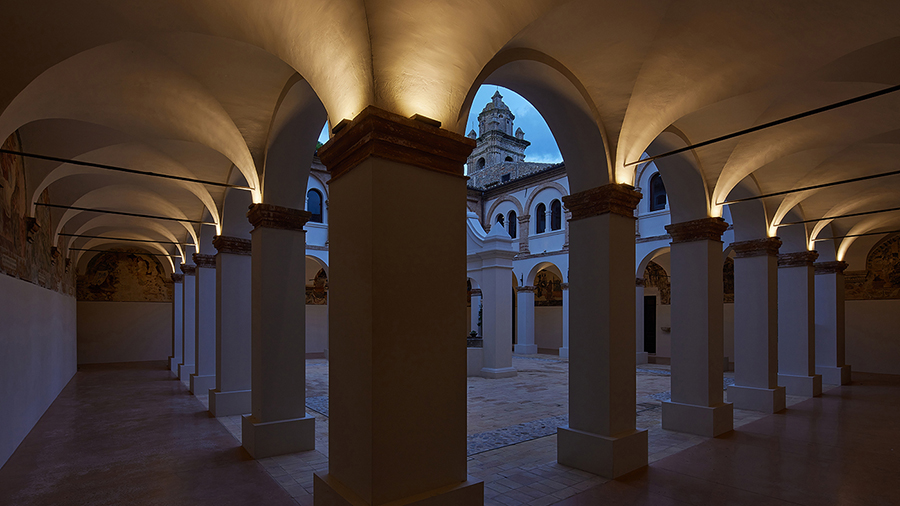

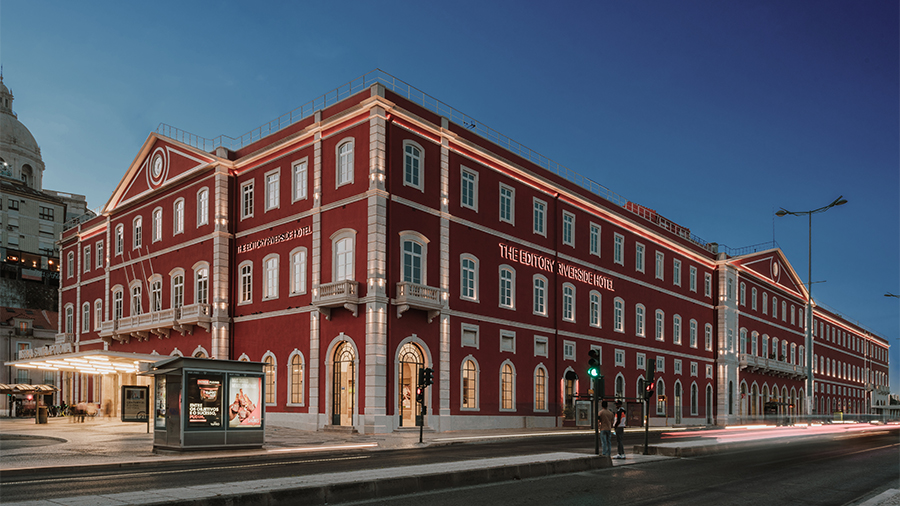

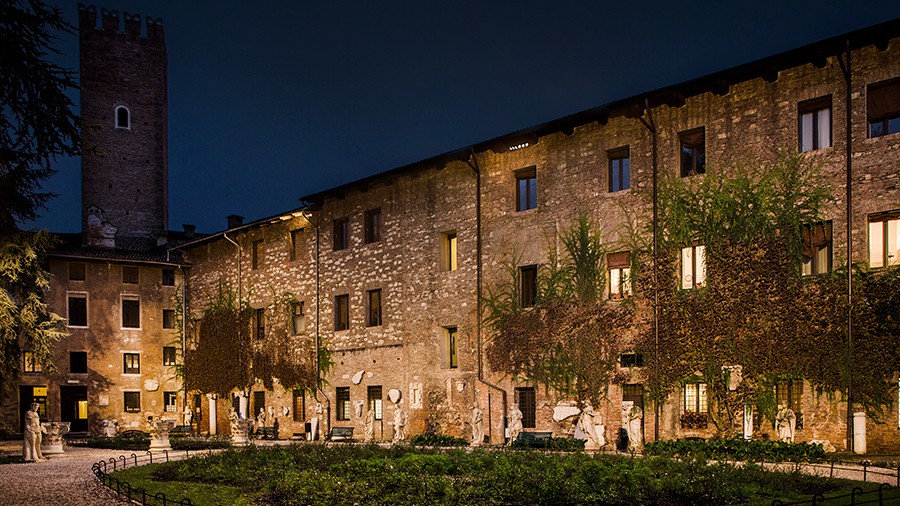

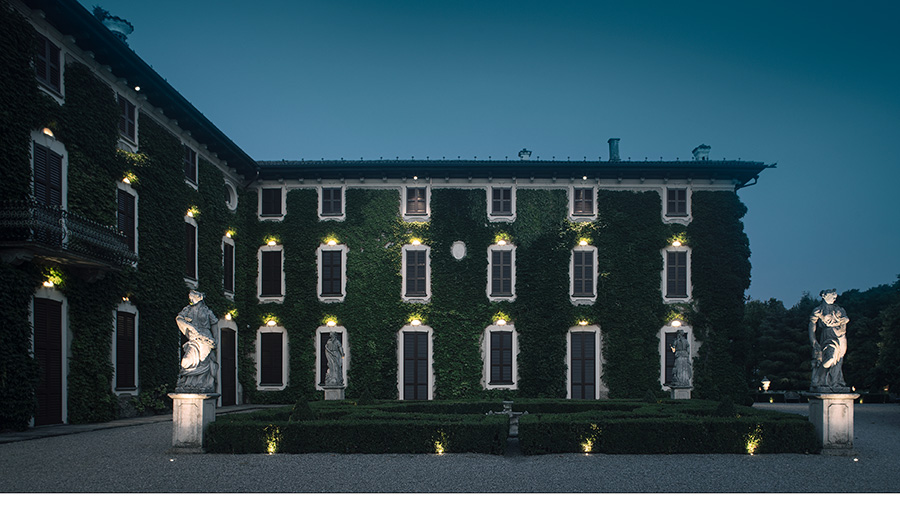

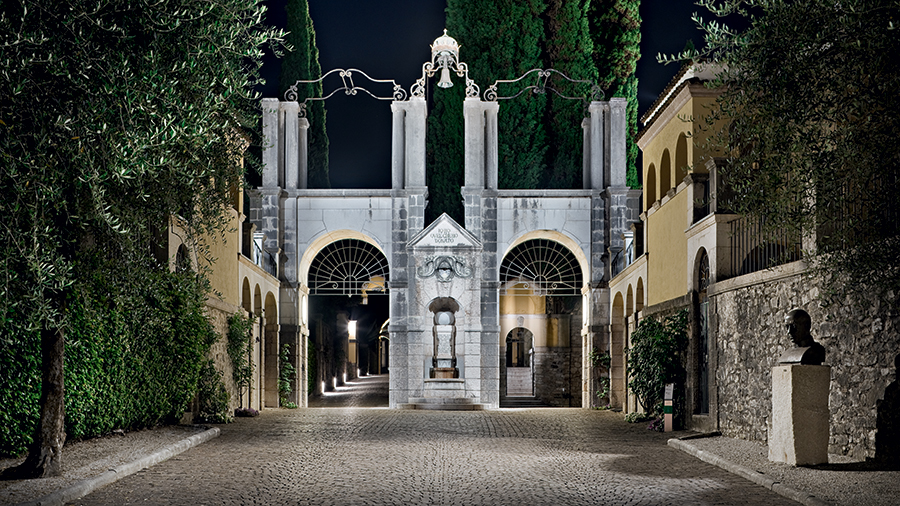

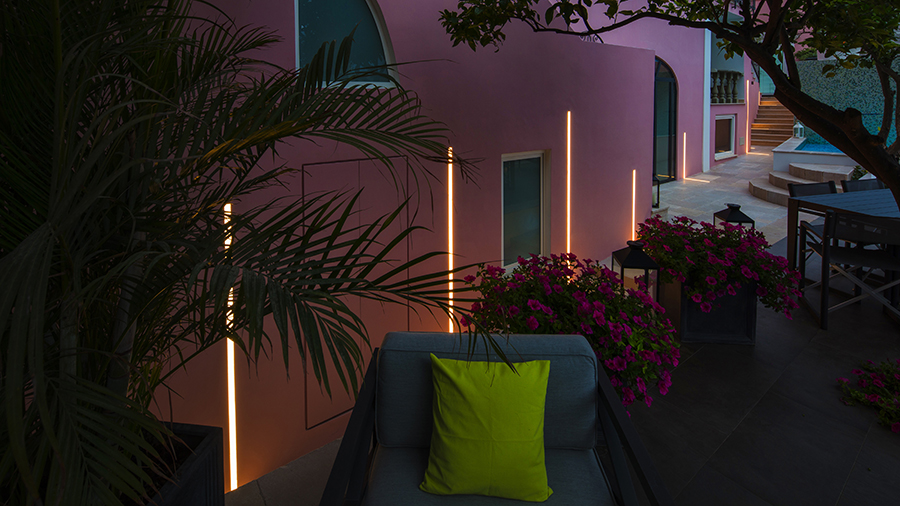

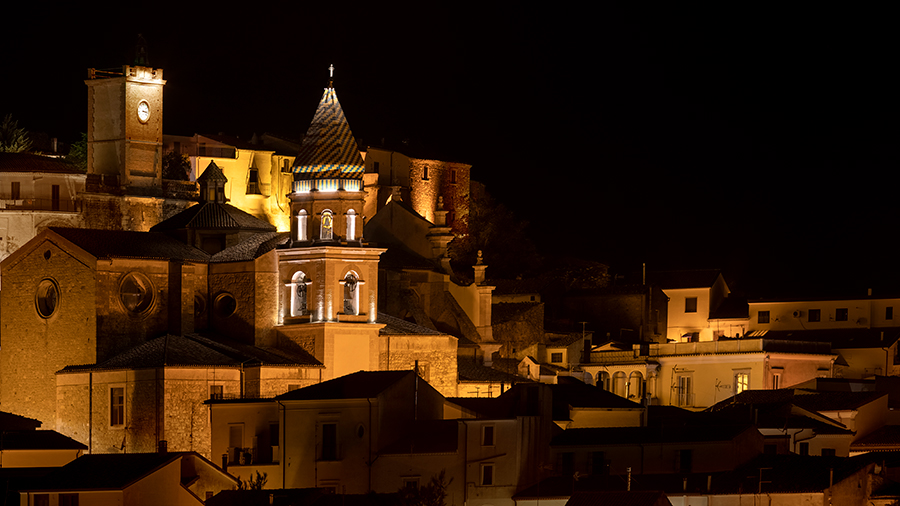

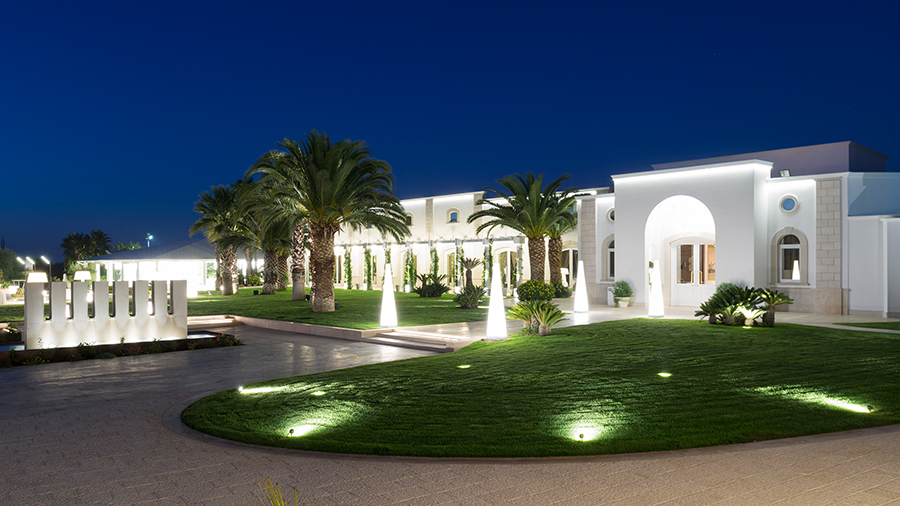

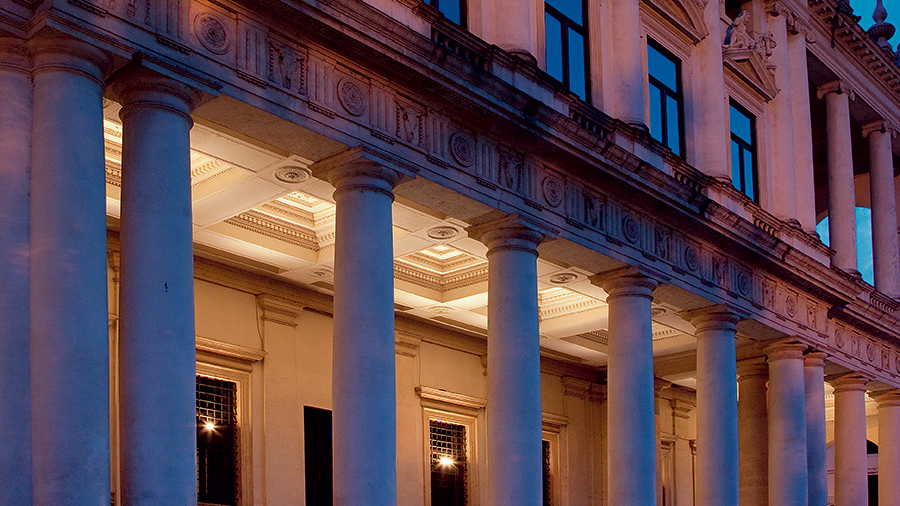

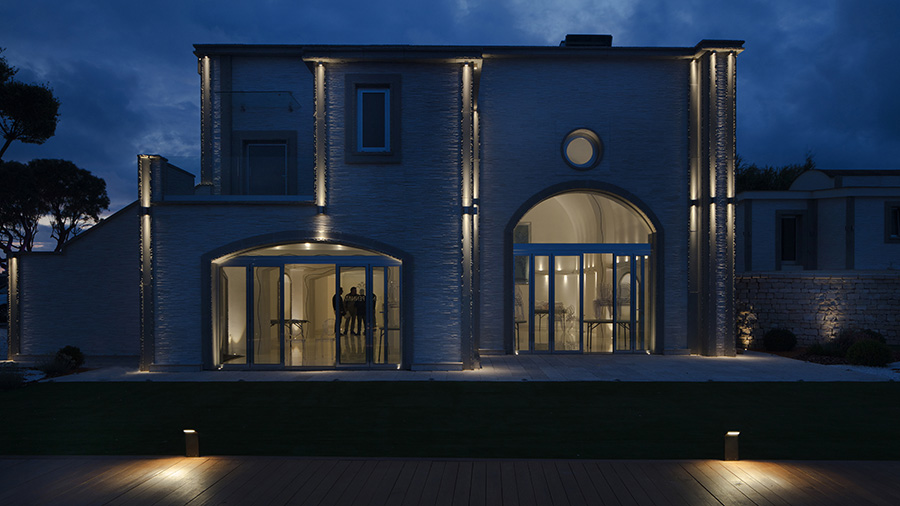

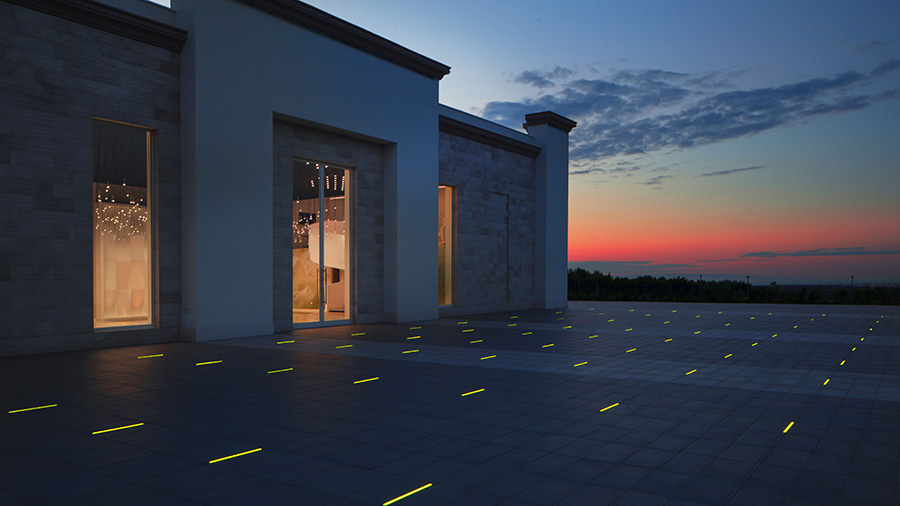

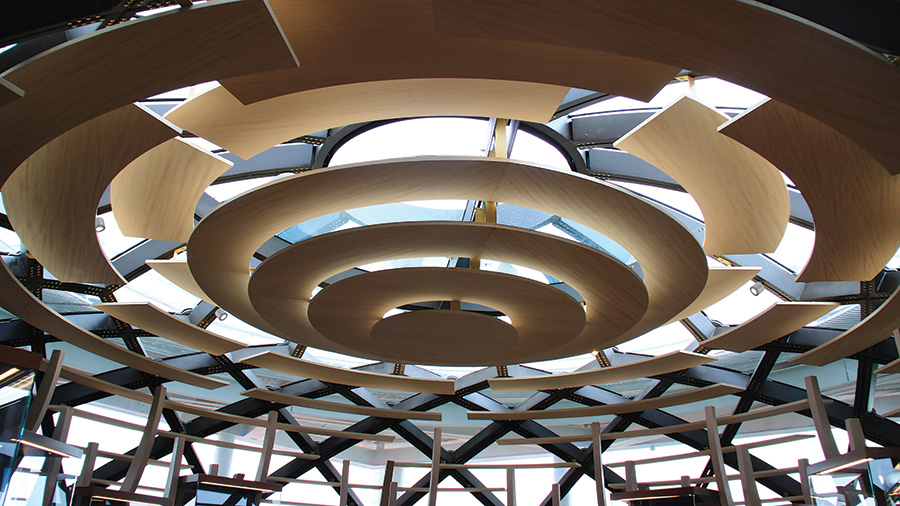

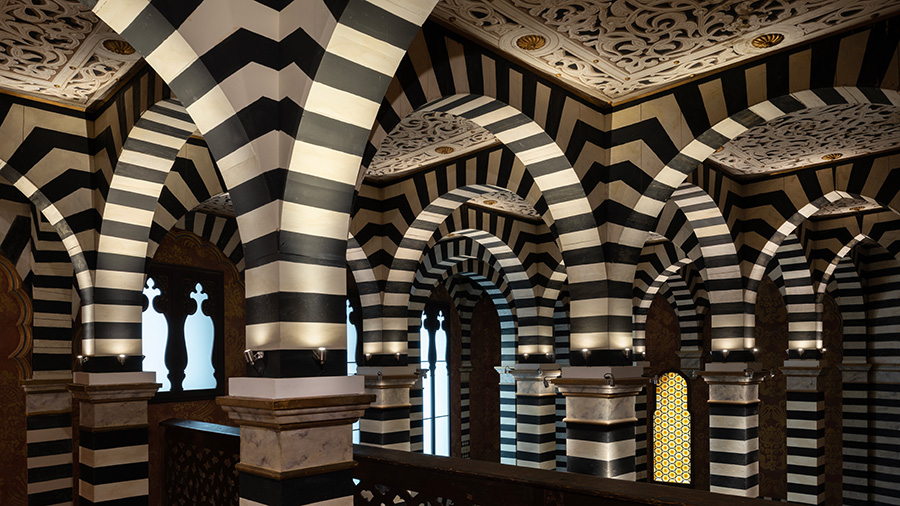

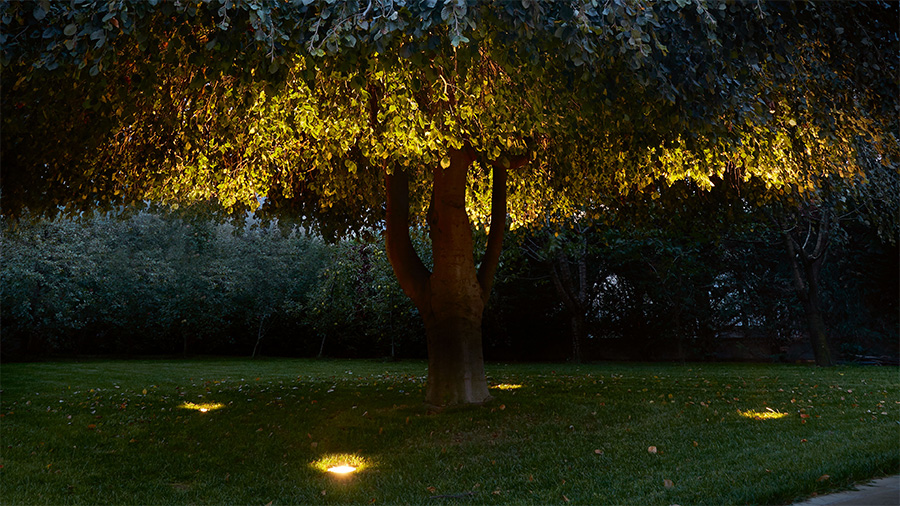

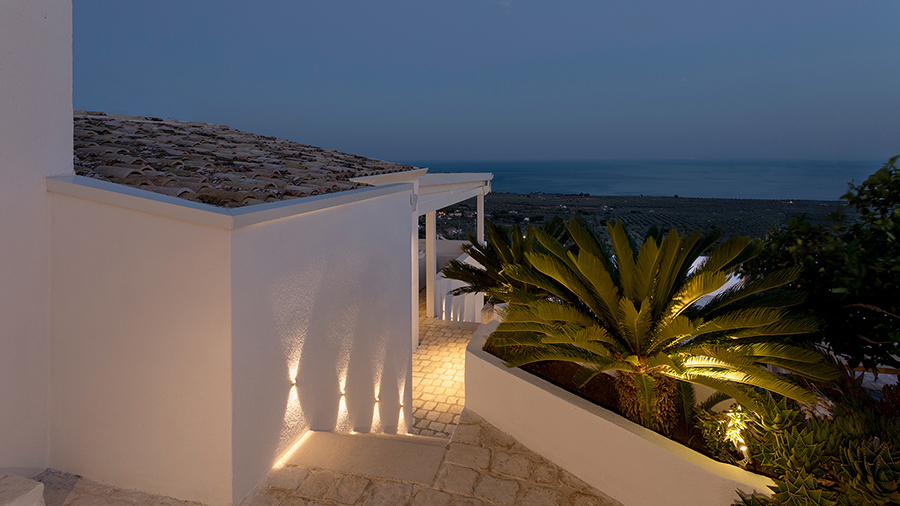

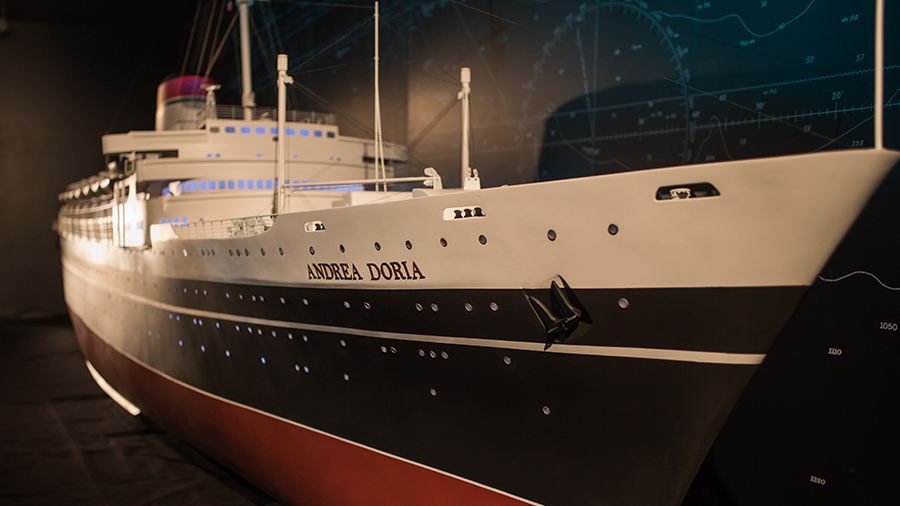

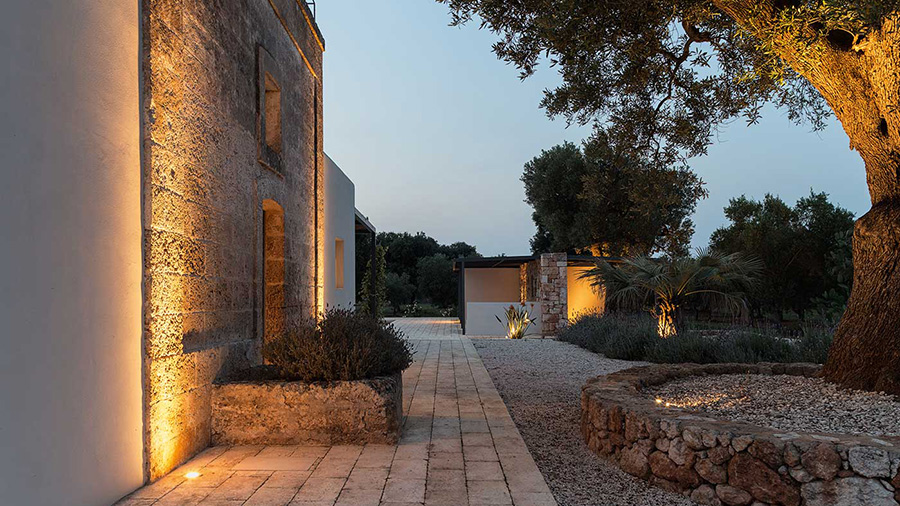

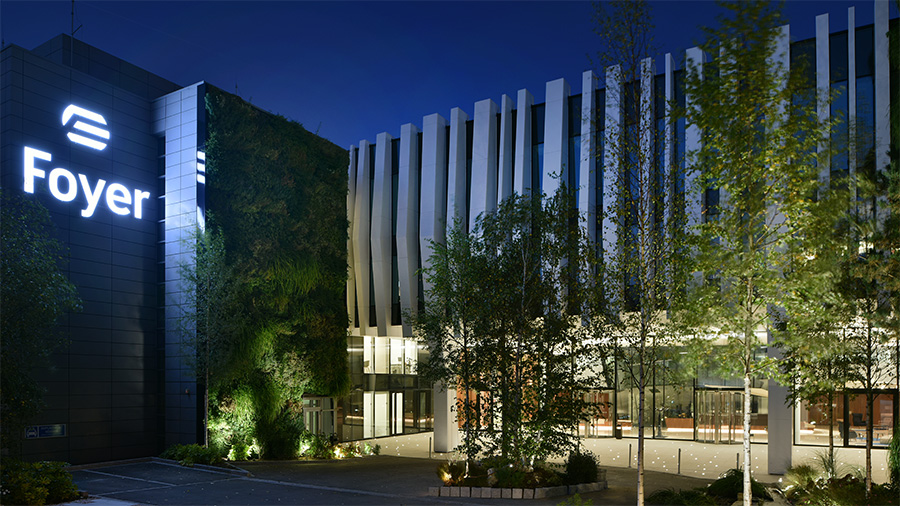

Projects using Spot
