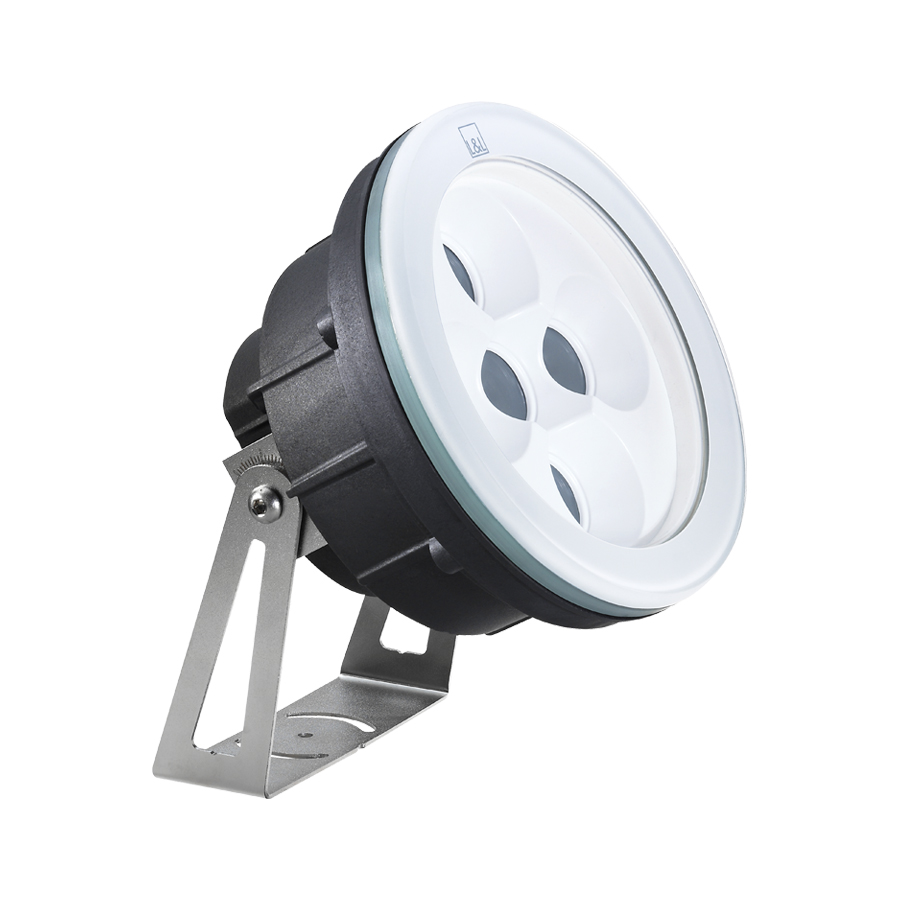

Moby P 3.1

projector for underwater applications - 30W - 24Vdc - Ø193 mm - glass cover

Generate code

Technical data

Print technical data
  • RGBW
  • shades of cyan
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 3,50
  • IP68
  • IK10
  • IPS
  • NTC
  • A/A+/A++
Installation projector for underwater applications (not suitable for underwater applications in salt water, only suitable for underwater applications)
Power consumption 30W
Power supply 24Vdc
Lumen output at source 2537 lm (3000K),
RGBW: 1474 lm, R: 231 lm G: 432 lm B: 118 lm W: 693 lm (4000K),
cyan: 1303 lm
Delivered lumen output 1876 lm (3000K, 34°),
RGBW: 1090 lm, R: 171 lm G: 319 lm B: 87 lm W: 513 lm (4000K, 34°),
cyan: 961 lm (34°)


Mounting surface mounted (wall, floor), max depth 10 m
Number and type of LED 5 power LEDs groups, 2-step MacAdam (white LED colour);
RGBW: 5 RGBW LEDs groups;
Cyan: 5 Cyan LEDs groups
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGBW, shades of cyan

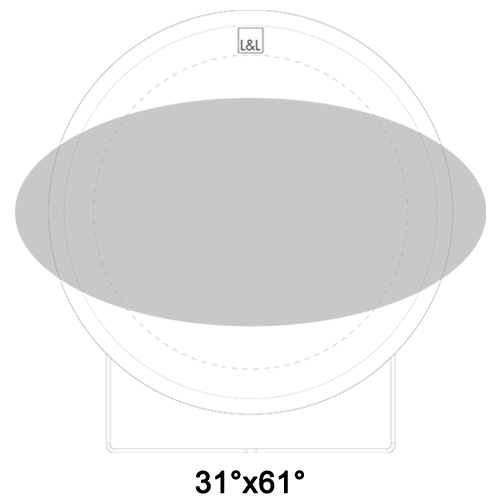

Optics 22°, 34°, 62°, 31°x64°
CRI Colour Rendering Index 80
Body material body in thermally conductive plastic, bracket in AISI 316L stainless steel
Screen material glass cover with vitrified serigraphy
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm;
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP68
Impact resistance IK10
Status Available

Read more


Accessories and power supply units

Accessories (1)

Honeycomb louvre

Order together with the lighting fixture.


Honeycomb louvre

built into the lighting fixture
