Kora 2.0

6W 230Vac - ø55x300 mm

Generate code

Technical data

Print technical data
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    kg 0,80
  • IP40
  • RAL finish on request
  • A/A+/A++

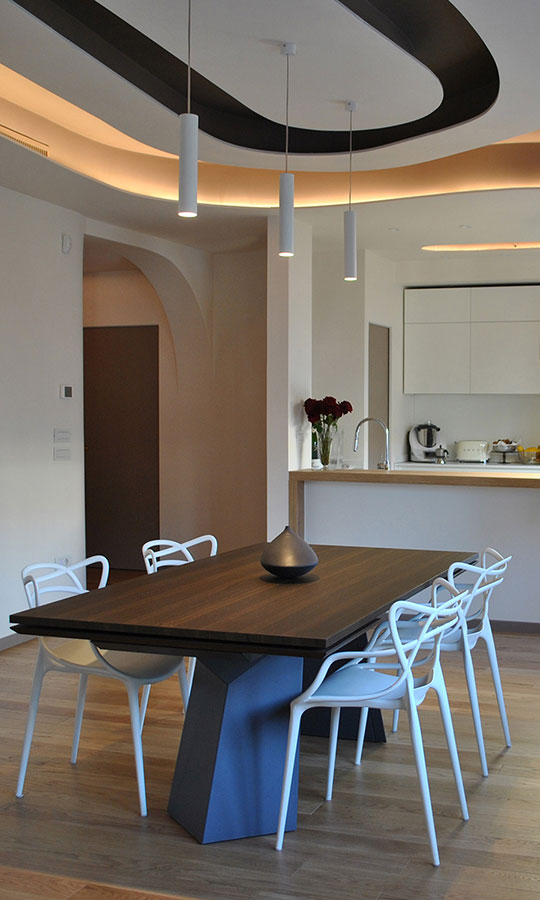

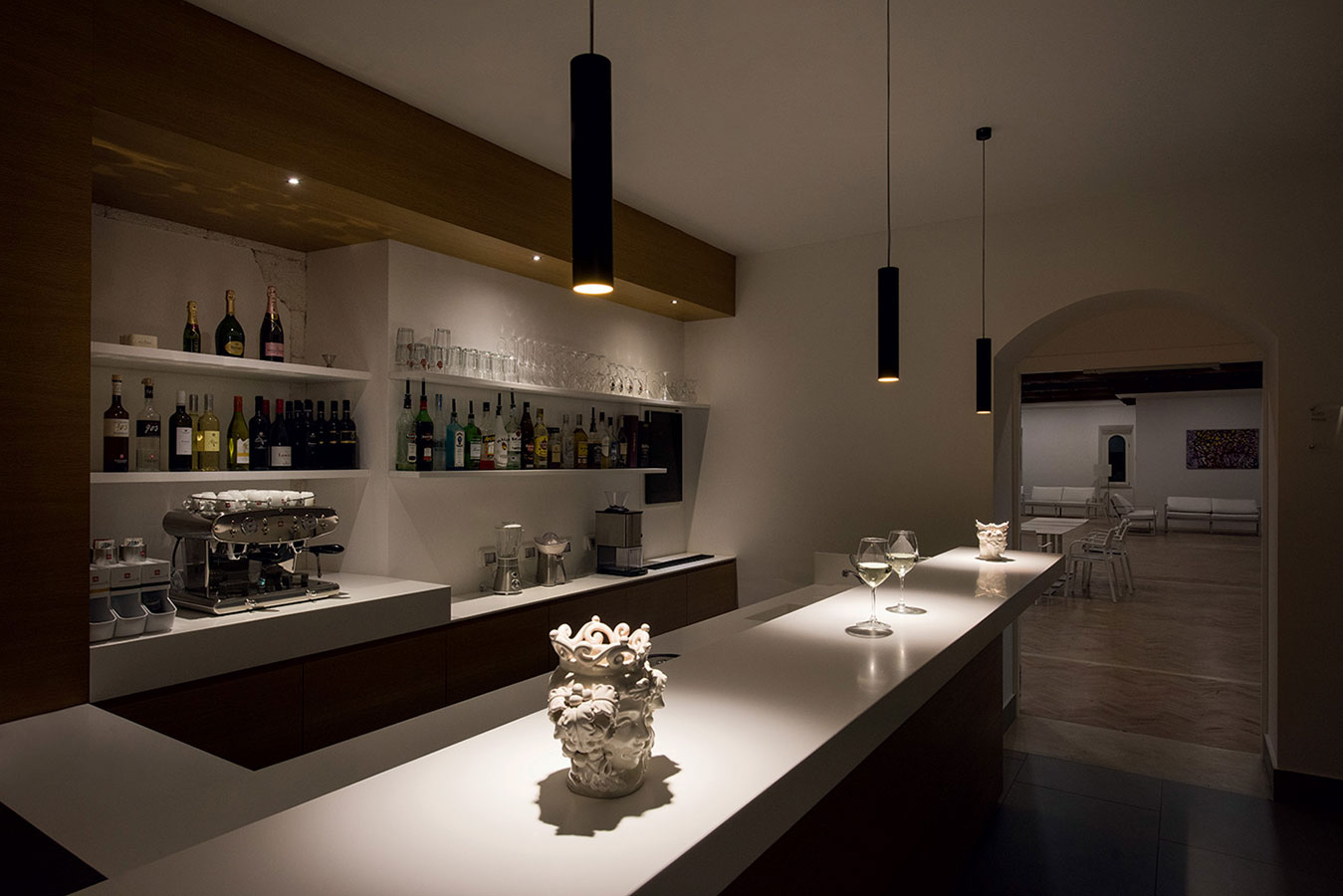

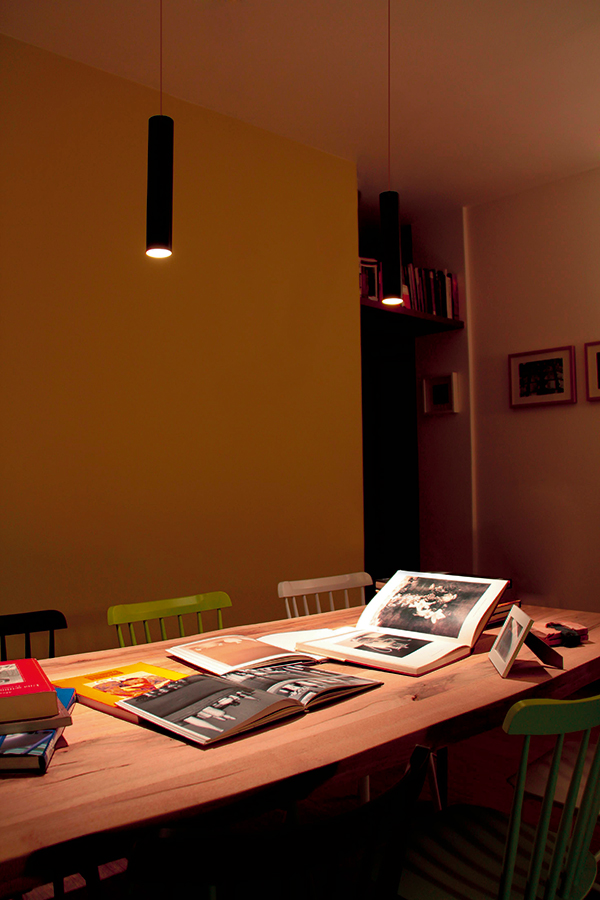

Installation suspended for indoor applications
Power consumption 6W
Power supply 230Vac
Lumen output at source 460 lm (3000K)
Delivered lumen output 285 lm (3000K, 24°)
Datasheet

Copied

Mounting surface mounted (ceiling) with ceiling rose
Number and type of LED 1 multichip power LED, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics 17°, 24°, 58°
Body material body in anticorodal aluminium, ceiling rose in steel
Screen material screen in plexiglass
Finishes black, white, pure orange, chrome, capri blue, light ivory, reseda green
Power supply unit built-in power supply unit
Power cables includes 2.50 m PVC cable, FROR 2x0.75 Ø5.4 mm
Ingress protection IP40
Notes DALI and 1-10V versions available on request
Design by Cibicworkshop
Status Available
