Rio 2.2

Linear profiles for outdoor applications

linear profile for outdoor applications - 19W 24Vdc, RGB: 17W 24Vdc - 1010 mm - drive-over - RGB

Generate code

Technical data

Print technical data

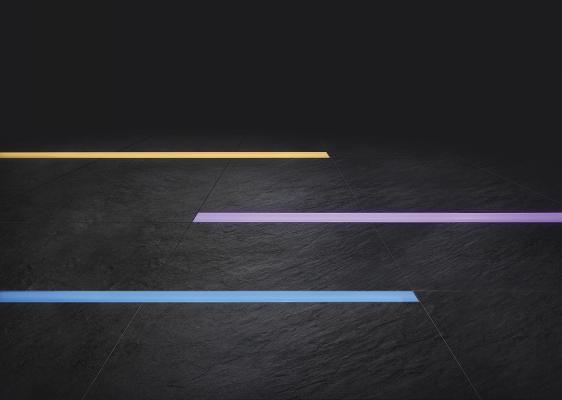

  • RGB
  • complies with the European standard EN 60598-1
  • CB
  • EAC
  • BIS R-41103985
  • lighting fixture with LED technology
  • appliance class III

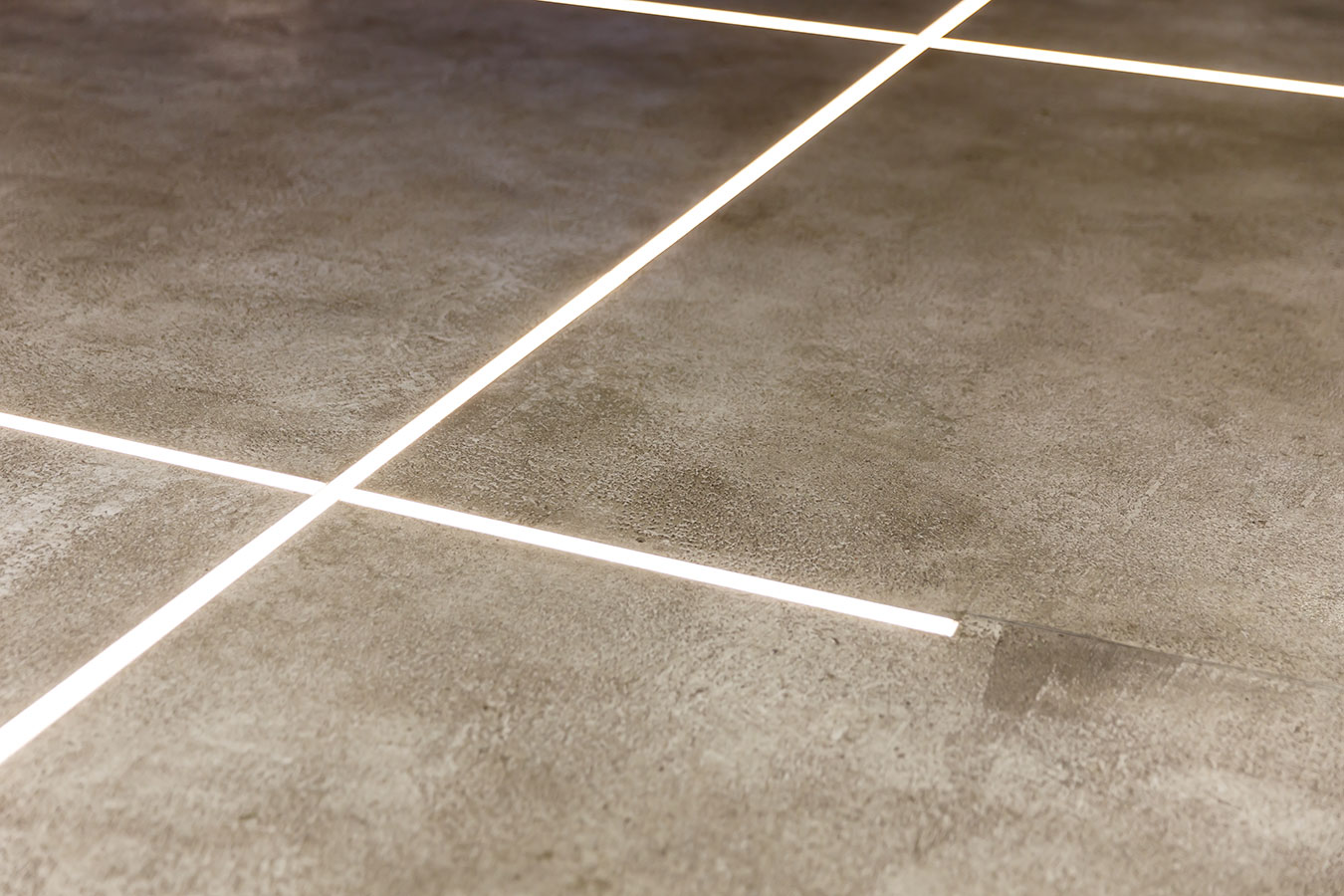

  • drive-over fixture
    kg 5000 - kN 50
  • gross weight
    kg 1,48
  • IP67
  • IK10
  • IPS
  • maximum device temperature40°C
  • A/A+/A++
Installation linear profile for outdoor applications
Power consumption 19W; RGB: 17W
Power supply 24Vdc
Lumen output at source 2112 lm (2800K),
RGB: 280 lm, R: 60 lm G: 180 lm B: 40 lm
Delivered lumen output 580 lm (2800K),
RGB: 200 lm, R: 44 lm G: 128 lm B: 28 lm
Datasheet

Copied

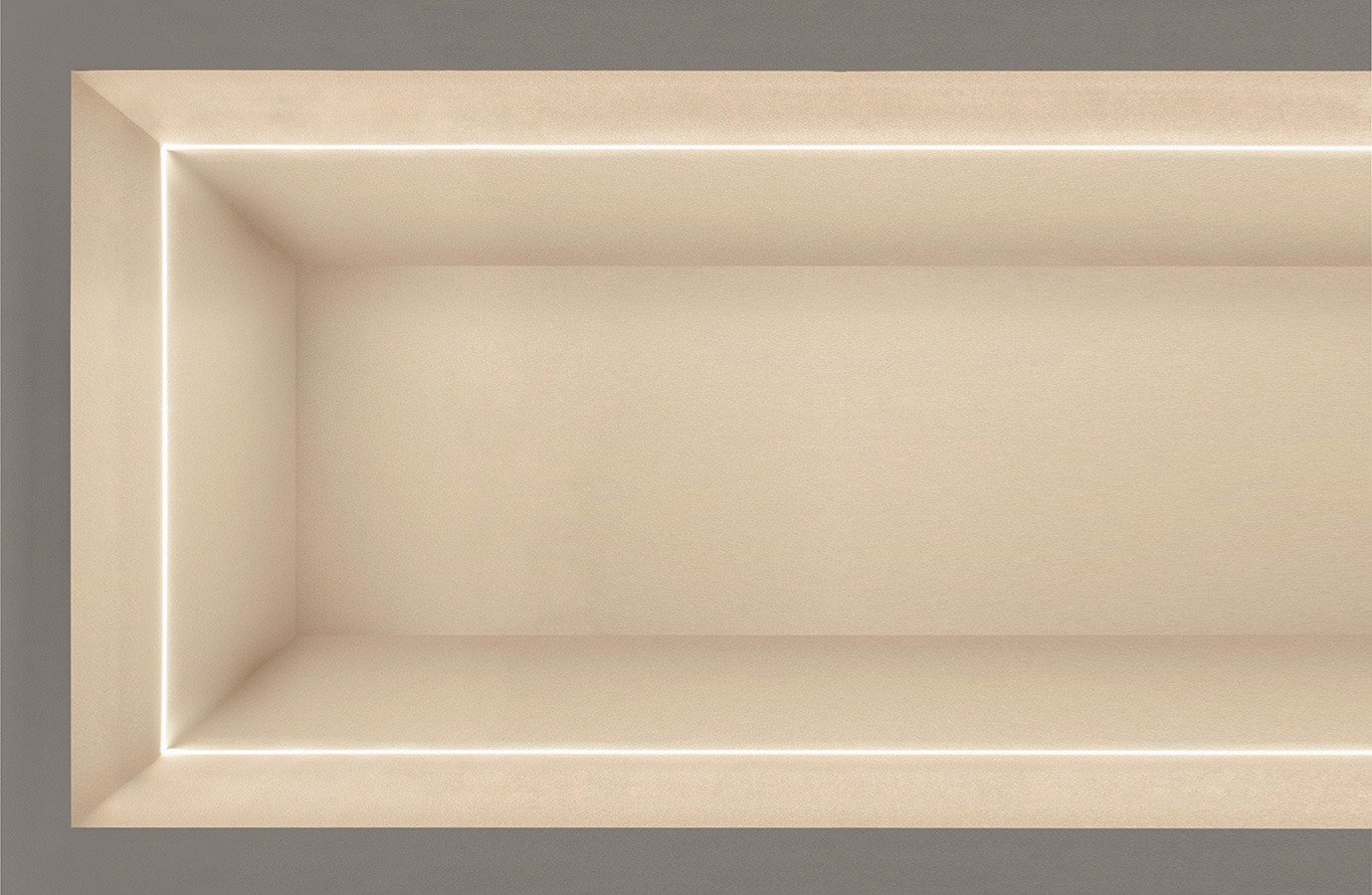

Mounting recessed (ceiling, wall, floor)
Number and type of LED 192 SMD low power LEDs, 3-step MacAdam;
RGB: SMD full-colour LED
50 000h L95 B10 (Ta 25°C)
LED colour 2600K, 2800K, 3700K, RGB
Optics diffuse
CRI Colour Rendering Index 80
Body material body in PMMA, screen in opal PMMA, end caps in AISI 316L stainless steel
Power supply unit power supply unit not included
Power cables includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm;
RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable), 4x0,50/0,50 Ø6,3 mm
Ingress protection IP67
Impact resistance IK10
Notes drive-over up to 5000 kg with aluminium casing. Non-standard lengths available on request
Status Available

Read more

Close

Accessories and power supply units

Accessories (8)

Power supply units (15)

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 10W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 10W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 11W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (6)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARV230PD1

Easy RGB - Low-voltage 3-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 180W
With 12 Vdc input:; 12Vdc; 90W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARVUNID2

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W

3 channels

With 24 Vdc input:; 24Vdc; 360W

4 channels

With 24 Vdc input:; 24Vdc; 384W

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
Dimmering0/1-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, DMX512+RDM, Stand alone
Power supply unit IPIP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 384W
With 12 Vdc input:; 12Vdc; 192W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 480W
With 12 Vdc input:; 12Vdc; 240W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR02

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
Required TLC08 or TLC09 remote control, not included

Input12-24Vdc
Output

3 channels

With 24 Vdc input:; 24Vdc; 180W

4 channels

With 24 Vdc input:; 24Vdc; 240W

3 channels

With 12 Vdc input:; 12Vdc; 90W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringStand alone
Power supply unit IPIP20

Control input (10)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

Touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
