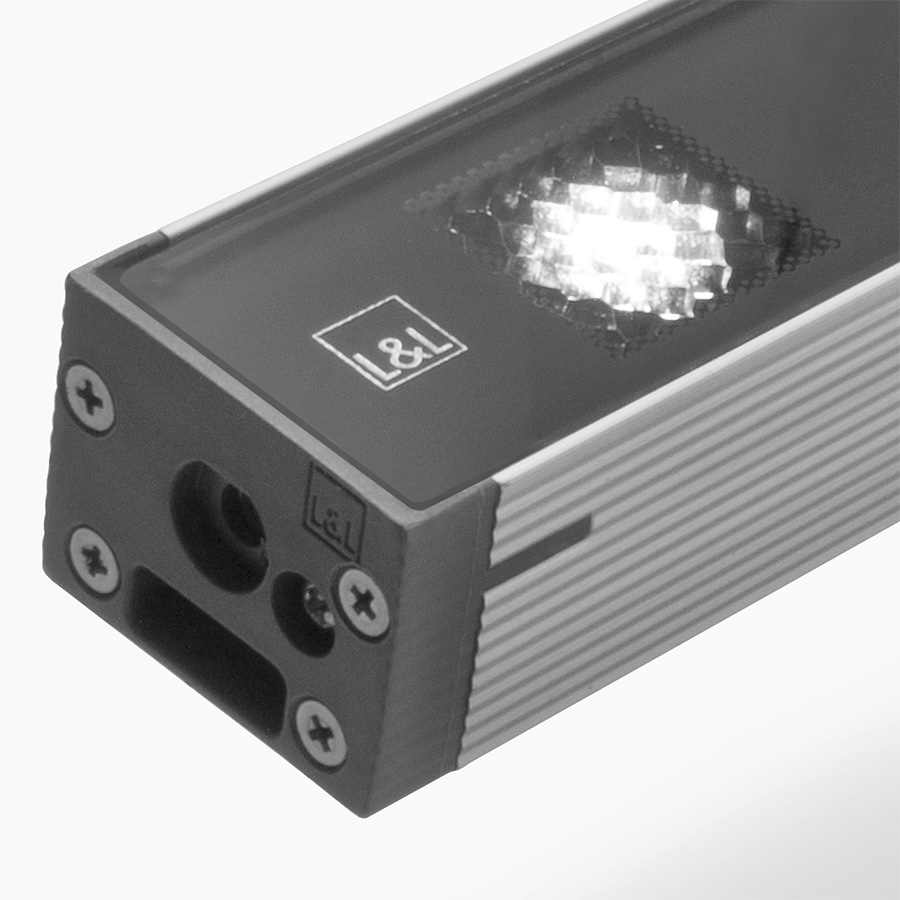

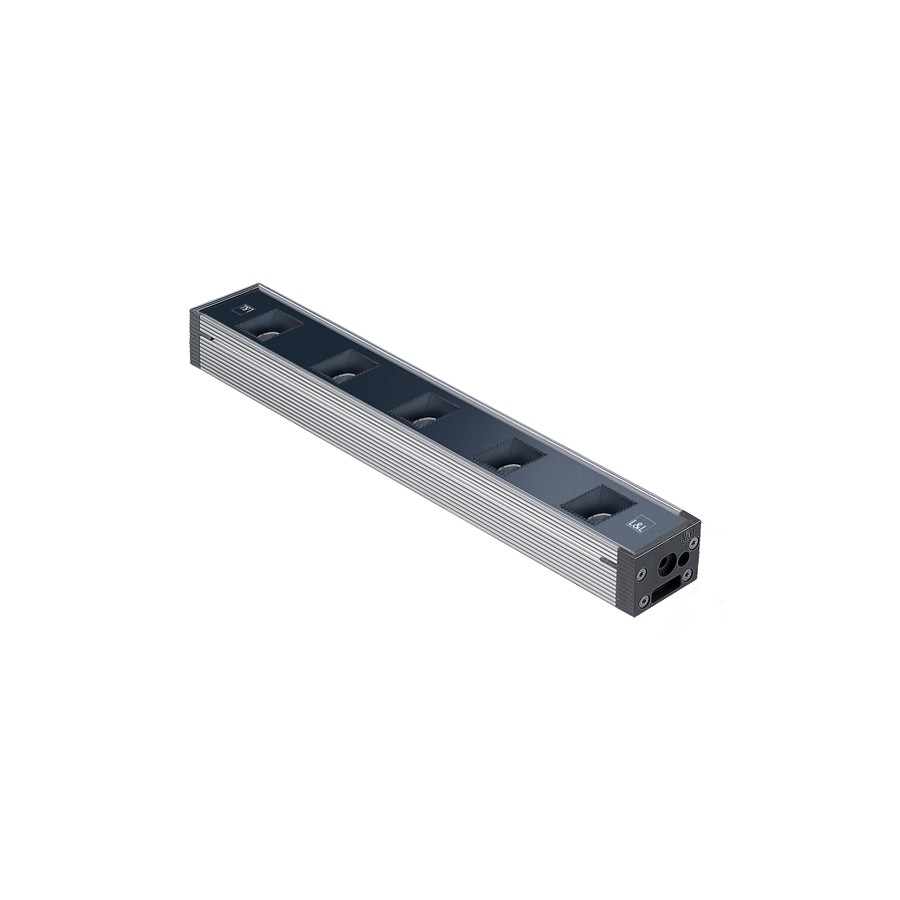

Neva 1.0

Linear profiles for outdoor applications

18W/25W 24Vdc - 616 mm - pitch 60

Generate code

Reset

Update data, accessories and PSUsUpdate data, accessories and PSUs

Technical data

Print technical data
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • walkover fixture
  • gross weight
    kg 1,15
  • IP67
  • IK06
  • IPS
  • PID
  • NTC
  • T max 45°C
  • A/A+/A++
Installation linear profile for outdoor applications
Power 18W, 25W
Power supply 24Vdc
Lumen output at source 2065 lm (3000K, 25W)),
1392 lm (3000K, 18W)
Delivered lumen output 1610 lm (3000K, 30°, 25W),
1150 lm (3000K, 30°, 18W)
Datasheet

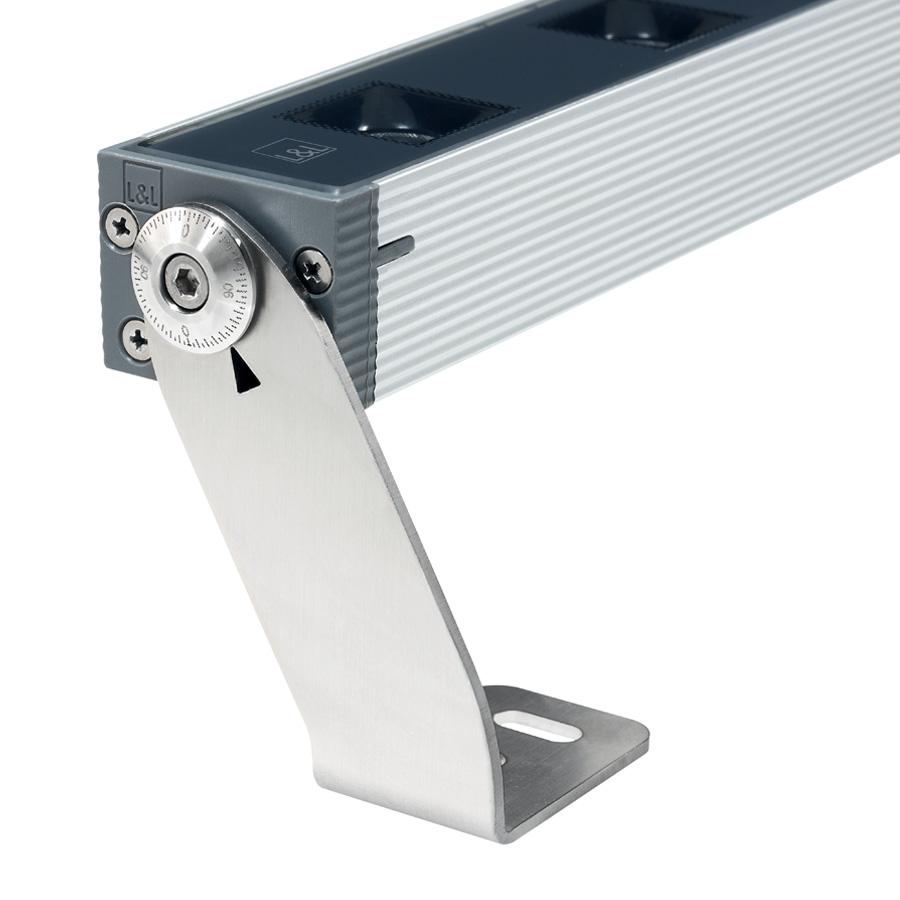

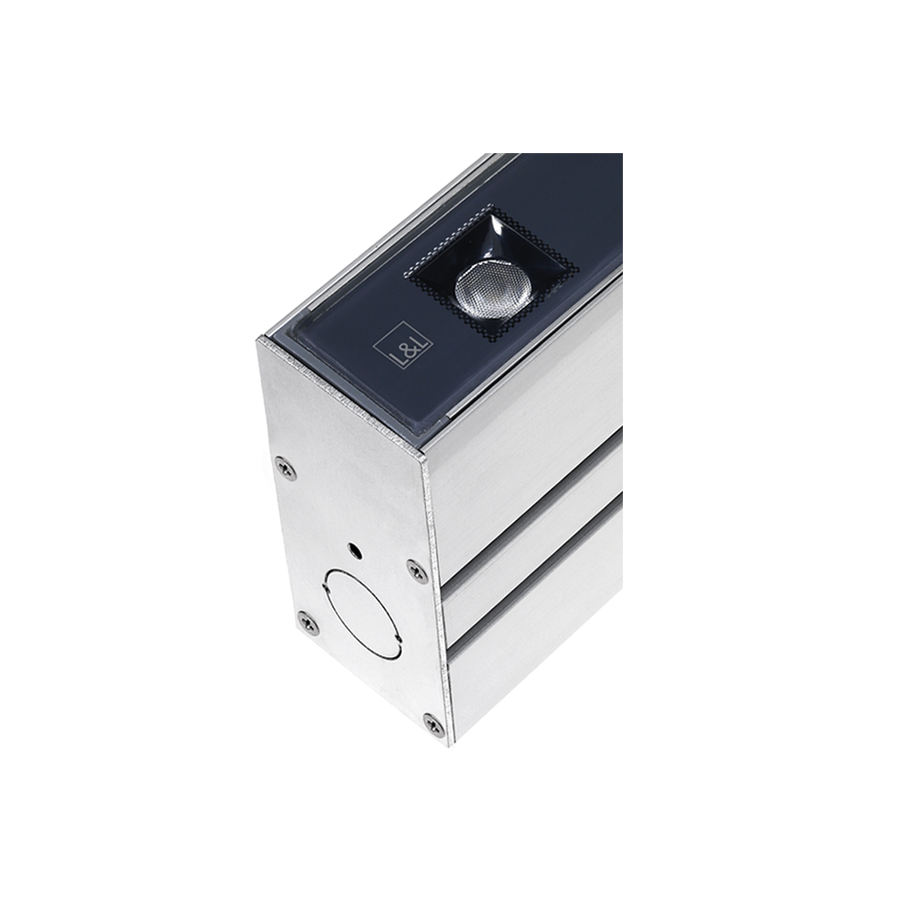

Mounting surface mounted (ceiling, wall, loor) with brackets or recessed (ceiling, floor, wall) with outer casing
Number and type of LED 10 power LEDs pitch 60 mm
LED colour 2700K, 3000K, 4000K
Optics 11°, 30°, 45°, 12°x40°
Material body in anodized aluminium,
screen in tempered and serigraphed glass
Power supply unit power supply unit not included
Power cables includes 1,5 m neoprene cable, H05RN-F 2x0,75 Ø6,3 mm
Ingress protection IP67
Impact resistance IK06
Notes available on request in 316-mm version with 9W / 13W power
Status Available

Read more

Close

Accessories and power supply units

Accessories

Power supply units

ACUNI032T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-13 LEDs
500mA 24W 1-13 LEDs
700mA 32W 1-13 LEDs
DimmeringON/OFF
Power supply unit IPIP20

AD032TLT1

dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 17W 1-11 LEDs
500mA 24W 1-11 LEDs
700mA 32W 1-11 LEDs
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc 10W
24Vdc 20W
350mA 15W 1-12 LEDs
500mA 22W 1-12 LEDs
700mA 25W 1-8 LEDs
Dimmering1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
Output12Vdc 144W
24Vdc 288W
48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67
