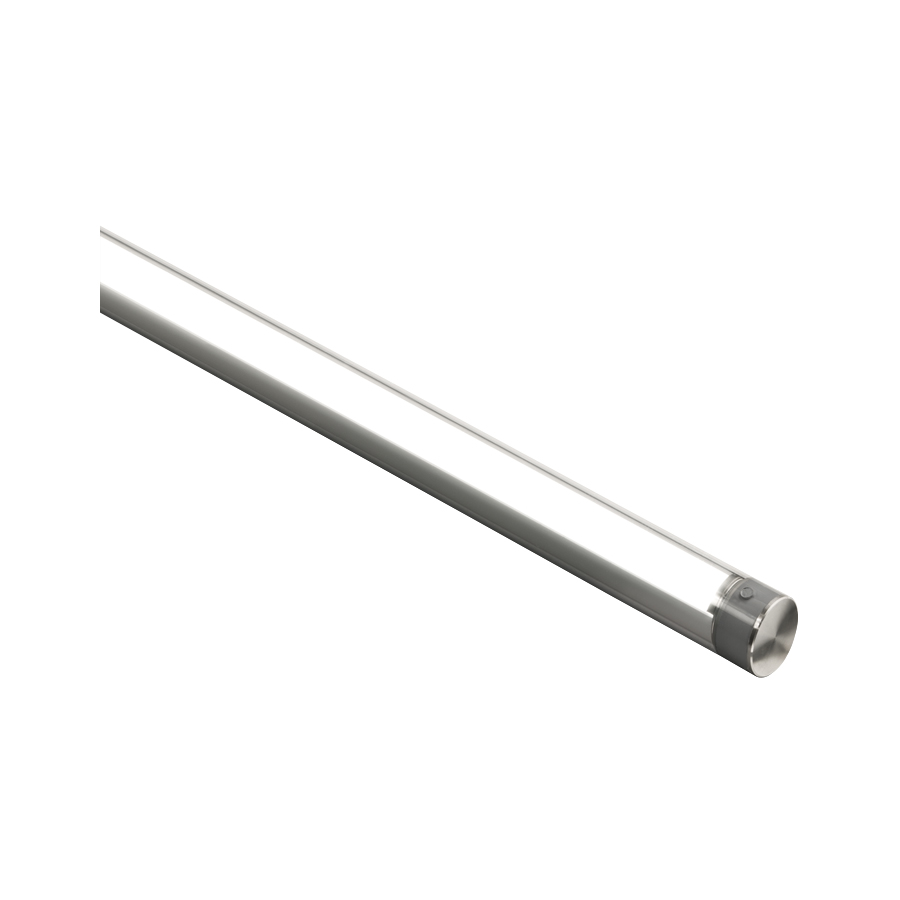

Trevi 1.0

Linear profiles for outdoor and underwater applications

7/10/11W 24Vdc - 613 mm

diffuse version, optics version pitch 100 - RGB

Generate code

Reset

Update data, accessories and PSUsUpdate data, accessories and PSUs

Technical data

Print technical data
  • RGB
  • complies with the European standard EN 60598-1
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 0,40
  • IP68
  • IK10
  • IPS
  • A/A+/A++
Installation linear profile for outdoor and underwater applications
Power optics version: 7W, diffuse version: 10W, RGB version: 11W
Power supply 24Vdc
Lumen output at source 619 lm (3000K, optics version),
1092 lm (3000K, diffuse version),
RGB: 526 lm, R: 118 lm G: 336 lm B: 72 lm (diffuse version)
Delivered lumen output 504 lm (3000K, 40°),
522 lm (3000K, diffuse version),
RGB: 376 lm, R: 84 lm G: 240 lm B: 52 lm (diffuse version)
Datasheet
Mounting surface mounted (ceiling, wall, floor)
Number and type of LED optics version: 6 power LEDs pitch 100, diffuse version: 78 mid power LEDs, RGB version: 42 low power LED full color
LED colour 2700K, 3000K, 4000K, RGB
Optics 40°, 65°, 20°x50°, diffuse
Material screen in transparent polycarbonate (optics version),
screen in opal polycarbonate (diffuse version),
end caps in AISI 316L stainless steel
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable H05RN-F 2x0,75 Ø6,3 mm,
RGB: includes 5 m FEP+PCP cable (equivalent to H05RN-F cable) 4x0,50/0,50 Ø6,3 mm
Ingress protection IP68
Impact resistance IK10
Notes available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions
Status Available

Read more

Close

Accessories and power supply units

Accessories

Power supply units

ADV576DALIN1

low-voltage dimmer
order in addition to PSU

Input12-24-48Vdc
Output12Vdc 144W
24Vdc 288W
48Vdc 576W
Dimmering1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARV230PD1

order in addition to PSU

Input12-24-48Vdc
OutputWith input 12Vdc: 12Vdc 90W
With input 24Vdc: 24Vdc 180W
With input 48Vdc: 48Vdc 360W
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARVUNID2

order in addition to PSU

Input12-24Vdc
OutputWith input 12Vdc: 12Vdc 180W
With input 12Vdc: 12Vdc 180W
With input 12Vdc: 12Vdc 192W
With input 24Vdc: 24Vdc 360W
With input 24Vdc: 24Vdc 360W
With input 24Vdc: 24Vdc 384W
With input 24Vdc: 24Vdc 480W
Dimmering1-10V, 0-10V, PUSH, DALI, ON/OFF, 10kΩ potentiometer, DMX512, Stand alone
Power supply unit IPIP20

AV24008IP54

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 8W
DimmeringON/OFF
Power supply unit IPIP54

AV24010IP20

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 10W
DimmeringON/OFF
Power supply unit IPIP20

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 60W
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc 320W
DimmeringON/OFF
Power supply unit IPIP67
