Altopiano C 3.1

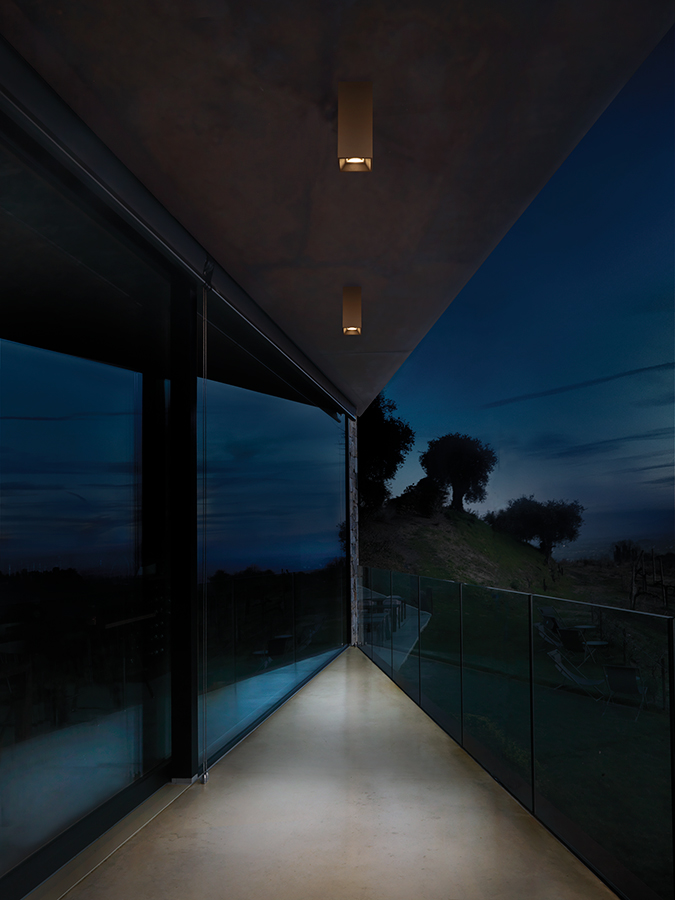

Ceiling mounted for outdoor applications

ceiling mounted for outoor applications - 15W/20W - 110-230Vac - 150x150x255 mm

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    2,40 kg
  • IP66
  • IK07
  • DALI-2
  • RAL finish on request
  • F
Installation ceiling mounted for outoor applications
Power consumption 20W, 15W
Power supply 110-230Vac
Lumen output at source 1506 lm (3000K, 15W, CRI >90),
1780 lm (3000K, 15W, CRI 80),
2090 lm (3000K, 20W, CRI >90),
2469 lm (3000K, 20W, CRI 80)
Delivered lumen output 1212 lm (3000K, 18°, 15W, CRI >90),
1431 lm (3000K, 18°, 15W, CRI 80),
1683 lm (3000K, 18°, 20W, CRI >90),
1988 lm (3000K, 18°, 20W, CRI 80)
Datasheet

Copied

Mounting surface mounted (ceiling)
Number and type of LED 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C)
LED colour 2200K, 2700K, 3000K, 4000K

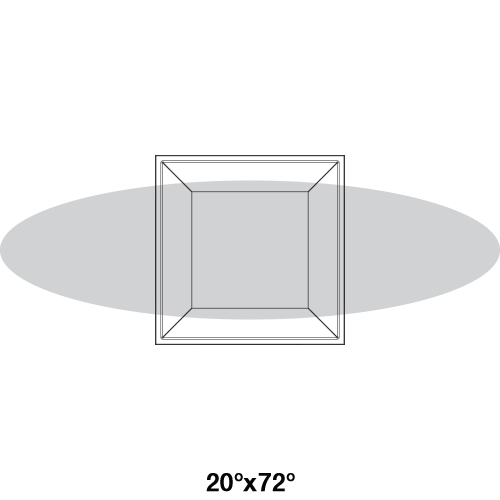

Optics 18°, 24°, 37°, 61°, 20°x72°, diffuse
CRI Colour Rendering Index 80, >90
Body material body in anticorodal aluminium
Screen material screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes cor-ten, white, grey, anthracite
Power supply unit built-in power supply unit
Power cables on/off: includes 0.30 m neoprene cable, H07RN-F 2x1.0 Ø8.0 mm
DALI-2: includes two 0.30 m neoprene cables, H07RN-F 2x1.00 Ø8.0 mm and H05RN-F 2x0.75 Ø6.0 mm
Control system ON/OFF, DALI-2
Ingress protection IP66
Impact resistance IK07
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
