Krill Track 3.4

Projectors for indoor applications

projector for indoor applications - 5.5W 48Vdc - manual zoom lens, optical range: 18°—80° - 160x63.5x82 mm

For the DALI-2 versions, provide a DALI Master Controller

Generate code

Technical data

Print technical data

85 g
IP40
DALI-2

Installation	projector for indoor applications
Power consumption	5,5W
Power supply	48Vdc
Lumen output at source	452 lm (3000K)
Delivered lumen output	253 lm (3000K, 80°)
Datasheet	Krill Track 3.4 projector for indoor applications; on track; Power consumption: 5,5W; Power supply: 48Vdc; Lumen output at source: 452 lm (3000K); Delivered lumen output: 253 lm (3000K, 80°); 1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: optical range 18°—80°: optical system consisting of a plano-convex lens combined with a high-quality technical filter. The diameter of the light emission can be adjusted manually, ensuring maximum lighting flexibility; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe. Track adapter in black polyamide; Finishes: cylindrical cover and joint painted rose gold, radiator electro-coloured black, cylindrical cover and joint painted antique bronze, radiator electro-coloured black, Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005), cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003); RAL finish on request; power supply unit not included; Control system: ON/OFF, DALI-2; Ingress protection: IP40; surface-mounted track in a white finish available on request DALI-2 versions require a DALI Master Controller; Operating temperature: 0°C — +35°C; Glow wire test: 960°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class III; Weight: 85 g; Dimensions: 160x63.5x82 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: BE0030004 2 m recessed track, BE0030005 1 m recessed track, BE0030012 1 m surface-mounted track, BE0030025 2 m surface-mounted track, BE0030026 Straight connector, BE0031003 End cap, recessed track, BE0031006 Vertical L-shaped connector cover for surface-mounted track, BE0031007 Horizontal L-shaped connector cover for surface-mounted track, BE0031008 Flexible connector, BE0031009 Vertical connector, ceiling-wall, BE003100A Horizontal connector, BE003100B Concealable power supply end cap, BE00310N0 End cap, surface-mounted track, BE0032005 Black cover, surface-mounted track – 3 m, BE0032006 Black cover, recessed track – 3 m, BE003TE20 Power supply end cap; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionKrill Track 3.4 projector for indoor applications on track Power consumption: 5,5W Power supply: 48Vdc Lumen output at source: 452 lm (3000K) Delivered lumen output: 253 lm (3000K, 80°) 1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: optical range 18°—80°: optical system consisting of a plano-convex lens combined with a high-quality technical filter. The diameter of the light emission can be adjusted manually, ensuring maximum lighting flexibility CRI Colour Rendering Index: >90 Body material: body made of ANTICORODAL EN AW 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Joint made of brass and produced entirely on a CNC lathe. Track adapter in black polyamide Finishes: cylindrical cover and joint painted rose gold, radiator electro-coloured black, cylindrical cover and joint painted antique bronze, radiator electro-coloured black, Cylindrical cover and joint painted black, radiator electro-coloured black (RAL 9005), cylindrical cover and joint painted white, radiator electro-coloured black (RAL 9003) RAL finish on request power supply unit not included Control system: ON/OFF, DALI-2 Ingress protection: IP40 surface-mounted track in a white finish available on request DALI-2 versions require a DALI Master Controller Operating temperature: 0°C — +35°C Glow wire test: 960° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class III Weight: 85 g Dimensions: 160x63.5x82 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: BE0030004 2 m recessed track, BE0030005 1 m recessed track, BE0030012 1 m surface-mounted track, BE0030025 2 m surface-mounted track, BE0030026 Straight connector, BE0031003 End cap, recessed track, BE0031006 Vertical L-shaped connector cover for surface-mounted track, BE0031007 Horizontal L-shaped connector cover for surface-mounted track, BE0031008 Flexible connector, BE0031009 Vertical connector, ceiling-wall, BE003100A Horizontal connector, BE003100B Concealable power supply end cap, BE00310N0 End cap, surface-mounted track, BE0032005 Black cover, surface-mounted track – 3 m, BE0032006 Black cover, recessed track – 3 m, BE003TE20 Power supply end cap tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	on track
Number and type of LED	1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	optical range 18°—80°
CRI Colour Rendering Index	>90
Body material	body in anticorodal aluminium, joint in brass, adapter in polyamide
Finishes	rose gold, antique bronze, black, white
Power supply unit	power supply unit not included
Control system	ON/OFF, DALI-2
Ingress protection	IP40
Notes	surface-mounted track in a white finish available on request DALI-2 versions require a DALI Master Controller
Status	Available

Read more

Close

Download

See all downloads

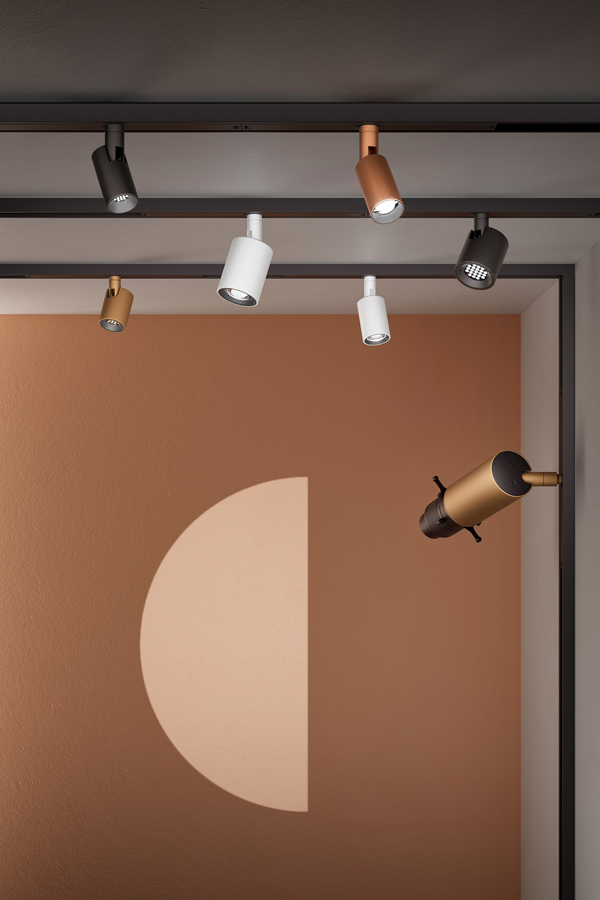

Gallery

Accessories and power supply units

Accessories (16)

Track accessories

Required installation accessories, not included BE0030004 2 m recessed track	Required installation accessories, not included BE0030005 1 m recessed track
Required installation accessories, not included BE0030012 1 m surface-mounted track	Required installation accessories, not included BE0030025 2 m surface-mounted track
BE0030026 Straight connector	BE0031003 End cap, recessed track
BE0031006 Vertical L-shaped connector cover for surface-mounted track	BE0031007 Horizontal L-shaped connector cover for surface-mounted track
BE0031008 Flexible connector	BE0031009 Vertical connector, ceiling-wall
BE003100A Horizontal connector	Required installation accessories, not included BE003100B Concealable power supply end cap
BE00310N0 End cap, surface-mounted track	BE0032005 Black cover, surface-mounted track – 3 m
BE0032006 Black cover, recessed track – 3 m	Required installation accessories, not included BE003TE20 Power supply end cap

Power supply units (4)

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	ON/OFF
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	ON/OFF
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	ON/OFF
Power supply unit IP	IP67

Control gear (0)

No controllers

Control input (0)

No control inputs
