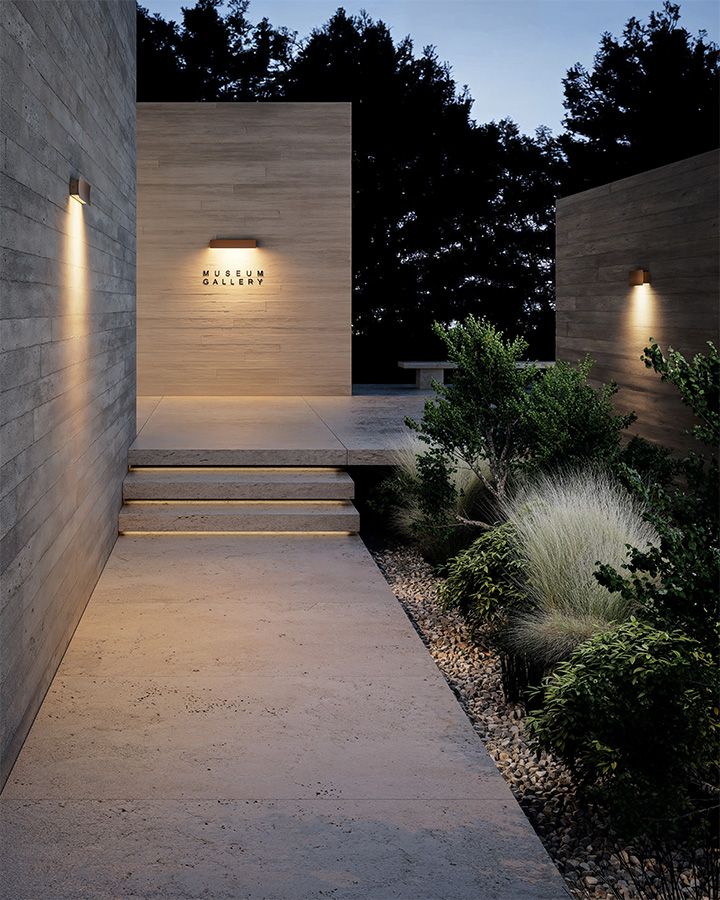

Dual-beam wall-mounted Berica OUT 3.1 for exteriors of homes and hotels

Technical data

1,5 kg
IP65
IK07
DALI

Installation	wall mounted for outdoor applications, double beam
Power consumption	30W
Power supply	230Vac
Lumen output at source	3082 lm (3000K, CRI >90), 3626 lm (3000K, CRI 80)
Delivered lumen output	2602 lm (3000K, diffuse, CRI >90), 3060 lm (3000K, diffuse, CRI 80)
Datasheet	Berica OUT 3.1 wall mounted for outdoor applications, double beam; surface mounted (ceiling, wall); Power consumption: 30W; Power supply: 230Vac; Lumen output at source: 3082 lm (3000K, CRI >90), 3626 lm (3000K, CRI 80); Delivered lumen output: 2602 lm (3000K, diffuse, CRI >90), 3060 lm (3000K, diffuse, CRI 80); 48 mid-power LEDs, 2-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: 42°x102°, 62°x100°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process; CRI Colour Rendering Index: 80, >90; Body material: body and concave cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and concave cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel. End caps made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion; Finishes: body painted white (RAL 9003). Cover and end caps painted in an anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector, body painted white (RAL 9003). Cover and end caps painted in a cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector, body, cover and end caps painted in a white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector (RAL 9003), Body painted white (RAL 9003). Cover and end caps painted through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces; RAL finish on request; Screen material: 4-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; built-in power supply unit; Control system: DALI, ON/OFF; Ingress protection: IP65; Impact resistance: IK07; single-beam version available on request; Operating temperature: -20°C — +45°C; Glow wire test: 650°; Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class II; Weight: 1500 g; Dimensions: 120x360x55 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionBerica OUT 3.1 wall mounted for outdoor applications, double beam surface mounted (ceiling, wall) Power consumption: 30W Power supply: 230Vac Lumen output at source: 3082 lm (3000K, CRI >90), 3626 lm (3000K, CRI 80) Delivered lumen output: 2602 lm (3000K, diffuse, CRI >90), 3060 lm (3000K, diffuse, CRI 80) 48 mid-power LEDs, 2-step MacAdam, 50 000h L80 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: 42°x102°, 62°x100°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process CRI Colour Rendering Index: 80, >90 Body material: body and concave cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and concave cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel. End caps made of low-copper-content die-cast aluminium alloy EN AB 46100 for excellent resistance to corrosion Finishes: body painted white (RAL 9003). Cover and end caps painted in an anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector, body painted white (RAL 9003). Cover and end caps painted in a cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector, body, cover and end caps painted in a white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints comply with the Qualicoat standard used in the automotive sector (RAL 9003), Body painted white (RAL 9003). Cover and end caps painted through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces RAL finish on request Screen material: 4-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time built-in power supply unit Control system: DALI, ON/OFF Ingress protection: IP65 Impact resistance: IK07 single-beam version available on request Operating temperature: -20°C — +45°C Glow wire test: 650° Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class II Weight: 1500 g Dimensions: 120x360x55 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall)
Number and type of LED	48 mid-power LEDs, 2-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K
Optics	42°x102°, 62°x100°, asymmetrical, diffuse
CRI Colour Rendering Index	80, >90
Body material	body and cover in anticorodal aluminium
Screen material	screen in serigraphed-grey and transparent, tempered extra-clear glass
Finishes	anthracite, cor-ten, white, primer
Power supply unit	built-in power supply unit
Control system	DALI, ON/OFF
Ingress protection	IP65
Impact resistance	IK07
Notes	single-beam version available on request
Status	Available

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Finish: black
Single beam

Accessories and power supply units
