Tago 3.3

Projectors for outdoor applications

projector for outdoor applications - 51W 230Vac - 1036 mm

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Casambi-compatible version, controllable with the Casambi app

Technical data

Print technical data

kg 3,60
IP65
IP67
IP69
IK09
DALI-2
0/1-10V

Installation	projector for outdoor applications
Mounting	surface mounted (ceiling, wall, floor)
Power consumption	51W
Power supply	230Vac
Lumen output at source	5968 lm (3000K)
Delivered lumen output	3728 lm (3000K, 29°)
Status	Available
Datasheet	Tago 3.3 projector for outdoor applications; surface mounted (ceiling, wall, floor); Power consumption: 51W; Power supply: 230Vac; Lumen output at source: 5968 lm (3000K); Delivered lumen output: 3728 lm (3000K, 29°); 48 SMD LEDs pitch 20 mm, 2-step MacAdam, 60000h L80 B10 (Ta 25°C) 2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C); LED colour: 2200K, 2700K, 3000K, 4000K; Optics: 11°, 17°, 29°, 69°: optical system composed of a series of equidistant light sources, 20,83 mm apart. The deep-set PMMA TIR lens guarantees high-quality light emission and visual comfort, 20°x49°: optical system composed of a series of equidistant light sources, 20,83 mm apart. The deep-set elliptical PMMA TIR lens guarantees high-quality light emission and visual comfort, wall grazer, wall washer: optical system composed of a series of equidistant light sources, 20 mm apart. The deep-set asymmetrical PMMA lens guarantees high-quality light emission and visual comfort.; CRI Colour Rendering Index: 80; Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and painted black (RAL 9005 matt) for excellent corrosion resistance. Caps made of black-painted (RAL 9005 matt) low-copper-content die-cast aluminium EN AB 47100. Finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide greater resistance to corrosion and atmospheric agents. AISI 304 stainless steel bracket painted matt RAL 9005 black with epoxy paint. Bushings in AISI 316L stainless steel, made with a CNC lathe. GORE-TEX valve to relieve the internal pressure; Finishes: black finish (RAL 9005 matt) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9005); RAL finish on request; Screen material: 4-mm-thick micro acid-etched flux, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations., 4-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches, 4-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations (version with wall-washer optics); Seals: black Santoprene™ O-rings guarantee lasting resistance to UV rays; Installation: On/off version: one IP68 4-way connector for power supply. Dimmable version: one IP68 4-way connector for power supply and two IP68 3-way connectors for DALI and 0/1–10V signal; built-in power supply unit; on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm including wiring connectors; Control system: ON/OFF, DALI-2, 0/1-10V; Ingress protection: IP65, IP67, IP69; Impact resistance: IK09; optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture, brackets with two pivot points for accurate adjustment; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 55°C (Ta 25°C); Photobiological safety: in accordance with IEC TR 62778:2014; Appliance class: class I; Weight: 3600 g; Dimensions: 74x149x1036 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, anti-glare shield, WFA0005 5-m 4-pin interconnect cable, WFA0101 1.5-m 4-pin interconnect cable, WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WFA03 3-pin female connector, WFA04 3-pin male connector, WMA03N Pair of adjustable brackets; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionTago 3.3 projector for outdoor applications surface mounted (ceiling, wall, floor) Power consumption: 51W Power supply: 230Vac Lumen output at source: 5968 lm (3000K) Delivered lumen output: 3728 lm (3000K, 29°) 48 SMD LEDs pitch 20 mm, 2-step MacAdam, 60000h L80 B10 (Ta 25°C) 2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C) LED colour: 2200K, 2700K, 3000K, 4000K Optics: 11°, 17°, 29°, 69°: optical system composed of a series of equidistant light sources, 20,83 mm apart. The deep-set PMMA TIR lens guarantees high-quality light emission and visual comfort, 20°x49°: optical system composed of a series of equidistant light sources, 20,83 mm apart. The deep-set elliptical PMMA TIR lens guarantees high-quality light emission and visual comfort, wall grazer, wall washer: optical system composed of a series of equidistant light sources, 20 mm apart. The deep-set asymmetrical PMMA lens guarantees high-quality light emission and visual comfort. CRI Colour Rendering Index: 80 Body material: body made of Anticorodal® low-copper-content aluminium EN AW 6060 T5 for excellent heat dissipation, manufactured from an extruded profile and painted black (RAL 9005 matt) for excellent corrosion resistance. Caps made of black-painted (RAL 9005 matt) low-copper-content die-cast aluminium EN AB 47100. Finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide greater resistance to corrosion and atmospheric agents. AISI 304 stainless steel bracket painted matt RAL 9005 black with epoxy paint. Bushings in AISI 316L stainless steel, made with a CNC lathe. GORE-TEX valve to relieve the internal pressure Finishes: black finish (RAL 9005 matt) obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9005) RAL finish on request Screen material: 4-mm-thick micro acid-etched flux, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations., 4-mm-thick transparent, tempered extra-clear glass, high-transmittance with grey-vitrified serigraphy (RAL 7015), to ensure chromatic uniformity and excellent resistance to knocks and scratches, 4-mm-thick acid-etched, tempered extra-clear glass, with grey-vitrified serigraphy (RAL 7015) resistant to knocks and scratches, and with high transmittance to eliminate chromatic aberrations (version with wall-washer optics) Seals: black Santoprene™ O-rings guarantee lasting resistance to UV rays Installation: On/off version: one IP68 4-way connector for power supply. Dimmable version: one IP68 4-way connector for power supply and two IP68 3-way connectors for DALI and 0/1–10V signal built-in power supply unit on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm including wiring connectors Control system: ON/OFF, DALI-2, 0/1-10V Ingress protection: IP65, IP67, IP69 Impact resistance: IK09 optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture, brackets with two pivot points for accurate adjustment Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 55°C (Ta 25°C) Photobiological safety: in accordance with IEC TR 62778:2014 Appliance class: class I Weight: 3600 g Dimensions: 74x149x1036 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, anti-glare shield, WFA0005 5-m 4-pin interconnect cable, WFA0101 1.5-m 4-pin interconnect cable, WFA02 IP68 “h”-type three-way connector (82x53.3x28 mm), WFA03 3-pin female connector, WFA04 3-pin male connector, WMA03N Pair of adjustable brackets tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Number and type of LED	48 SMD LEDs pitch 20 mm, 2-step MacAdam, 60000h L80 B10 (Ta 25°C) 2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
LED colour	2200K, 2700K, 3000K, 4000K

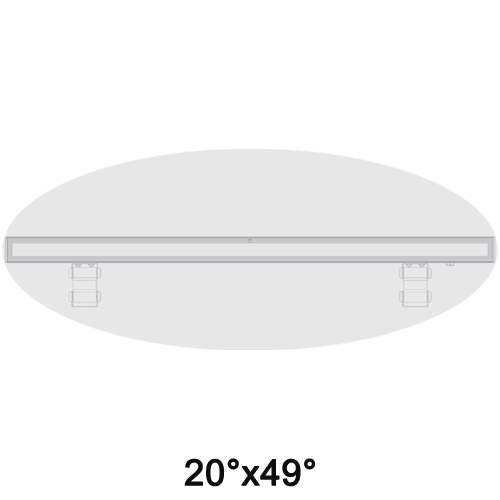

Optics	11°, 17°, 29°, 69°, 20°x49°, wall grazer, wall washer
CRI Colour Rendering Index	80
Body material	body in anticorodal aluminium, bracket in stainless steel, caps made of die-cast aluminium
Screen material	screen in grey-serigraphed, micro acid-etched flux, tempered extra-clear glass, thickness 4 mm, screen in serigraphed-grey and transparent, tempered extra-clear glass, screen in grey-serigraphed, acid-etched, tempered extra-clear glass (version with wall-washer optics)
Finishes	black
Power supply unit	built-in power supply unit
Power cables	on/off: includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm DALI, 0/1-10V: includes 1 x 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm and 2 x 0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm including wiring connectors

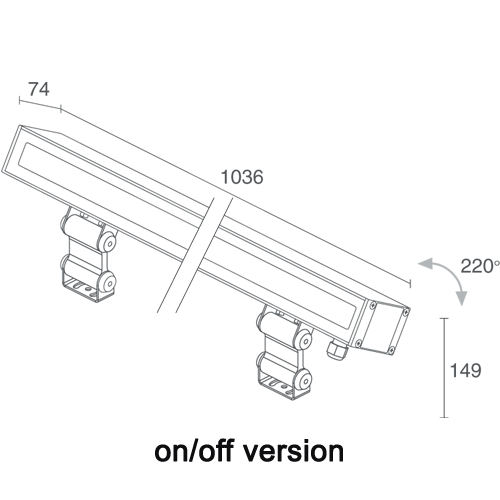

Control system	ON/OFF, DALI-2, 0/1-10V
Ingress protection	IP65, IP67, IP69
Impact resistance	IK09
Features	optical accessories of honeycomb louvre and anti-glare shield built into the lighting fixture, brackets with two pivot points for accurate adjustment
