Berica IN 3.2

Wall mounted for indoor applications

wall mounted for indoor applications, double beam - 54W 230Vac - 620x120x37 mm

Technical data

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    1,60 kg
  • IP40
  • DALI
  • PUSH
  • RAL finish on request
  • primer
  • F
Installation wall mounted for indoor applications, double beam
Power consumption 54W
Power supply 230Vac
Lumen output at source 6560 lm (3000K)
Delivered lumen output 5456 lm (3000K, diffuse optics)
Datasheet
Berica IN 3.2 wall mounted for indoor applications, double beam
surface mounted (ceiling, wall)
Power consumption: 54W
Power supply: 230Vac
Lumen output at source: 6560 lm (3000K)
Delivered lumen output: 5456 lm (3000K, diffuse optics)
128 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K

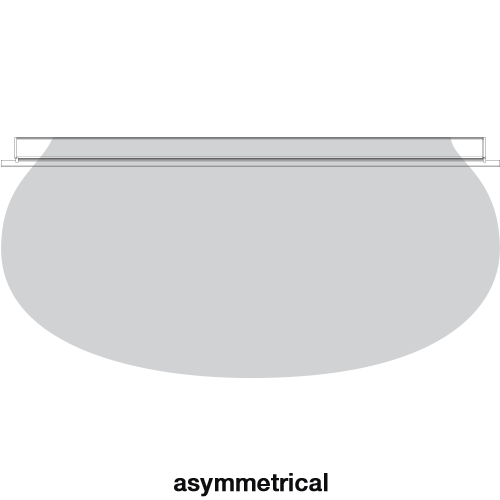

Optics: 45°x96°, 59°x90°, asymmetrical, diffuse: optical system consisting of a high-efficiency PMMA linear lens made by an extrusion process
CRI Colour Rendering Index: >90
Body material: body and concave cover made of low-copper-content ANTICORODAL® EN AW 6060 T5 aluminium alloy for excellent resistance to corrosion. Body and concave cover made by an extrusion process and subsequently finished by CNC milling. Caps made of polycarbonate through a moulding process and designed so they follow the curved profile of the front panel
Finishes: body painted white (RAL 9003), cover and end caps painted matt antique white (RAL 9001) (RAL 9001), body painted white (RAL 9003), cover and end caps painted matt aluminium grey, body painted white (RAL 9003), cover and end caps painted antique bronze, body, cover and end caps painted white. Cover painted matt (RAL 9003), body painted white (RAL 9003), cover and end caps painted with primer, which enables the fixture to be finished with paints such as two-pack polyurethane varnishes and two-pack acrylic paints suitable for masonry surfaces
RAL finish on request
built-in power supply unit
Control system: ON/OFF, PUSH, DALI
Ingress protection: IP40
non-standard lengths available on request, single-beam version available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Operating temperature: 0°C — +45°C
Glow wire test: 650°
Photobiological safety: in accordance with IEC TR 62778:2014
Appliance class: class II
Weight: 1600 g
Dimensions: 620x120x37 mm
Energy efficiency class: F (light source) in accordance with EU 2019/2015
tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption
Mounting surface mounted (ceiling, wall)
Number and type of LED 128 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics 45°x96°, 59°x90°, asymmetrical, diffuse
CRI Colour Rendering Index >90
Body material body and cover in anticorodal aluminium
Finishes antique white, matt aluminium grey, antique bronze, white, primer
Power supply unit built-in power supply unit
Control system ON/OFF, PUSH, DALI
Ingress protection IP40
Notes non-standard lengths available on request, single-beam version available on request,
Casambi-compatible version, controllable with the Casambi app, available on request
Status Available

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Finish: black, anthracite
