Snack 1.3

Linear profiles for indoor applications

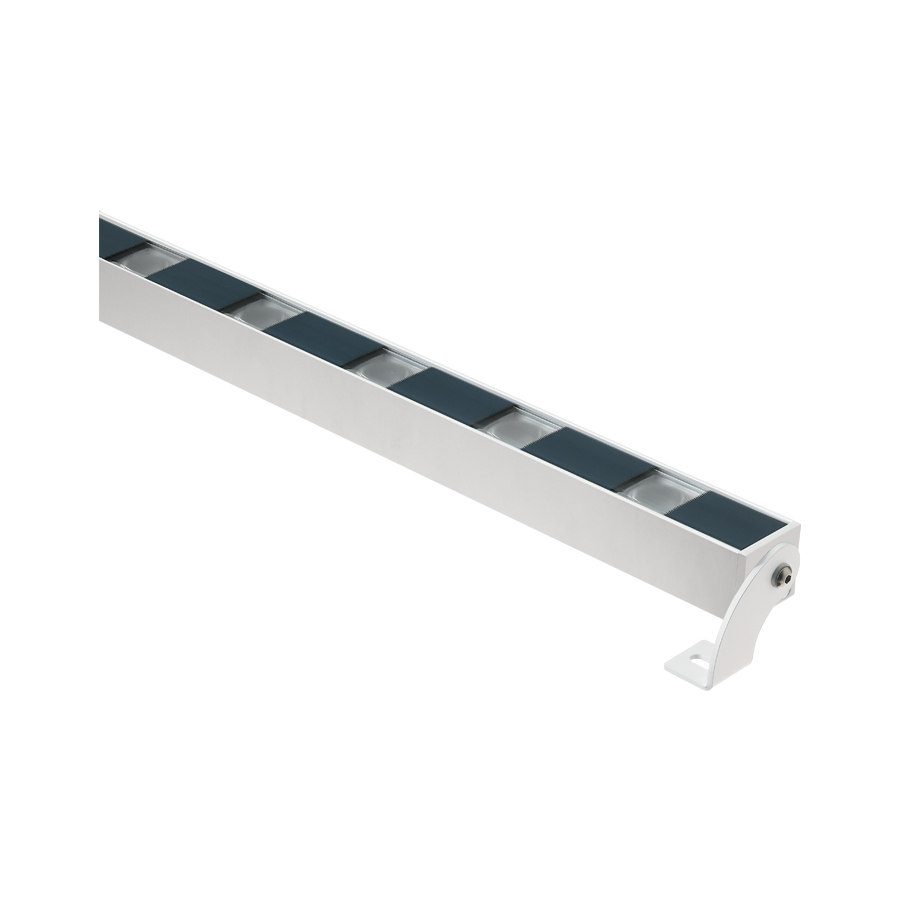

linear profile for indoor applications - 18/36W 24Vdc - 1243 mm - optics version pitch 60

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 1,10
  • IP40
  • NTC
  • RAL finish on request
  • Casambi control
  • F
Installation linear profile for indoor applications
Power consumption optics version: 36W, diffuse version: 18W
Power supply 24Vdc
Lumen output at source 2352 lm (3000K, diffuse version),
2780 lm (3000K, optics version)
Delivered lumen output 1140 lm (3000K, diffuse version),
1700 lm (3000K, 30°)
Datasheet

Copied

Mounting surface mounted (ceiling, wall, floor)
Number and type of LED power LED matrix, 3-step MacAdam (diffuse version),
20 power LEDs pitch 60mm, 2-step MacAdam (optics version),
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics 7°, 10°, 30°, 10°x45°, diffuse
CRI Colour Rendering Index 80
Body material body in anodized aluminium
Screen material screen in serigraphed transparent polycarbonate (optics version),

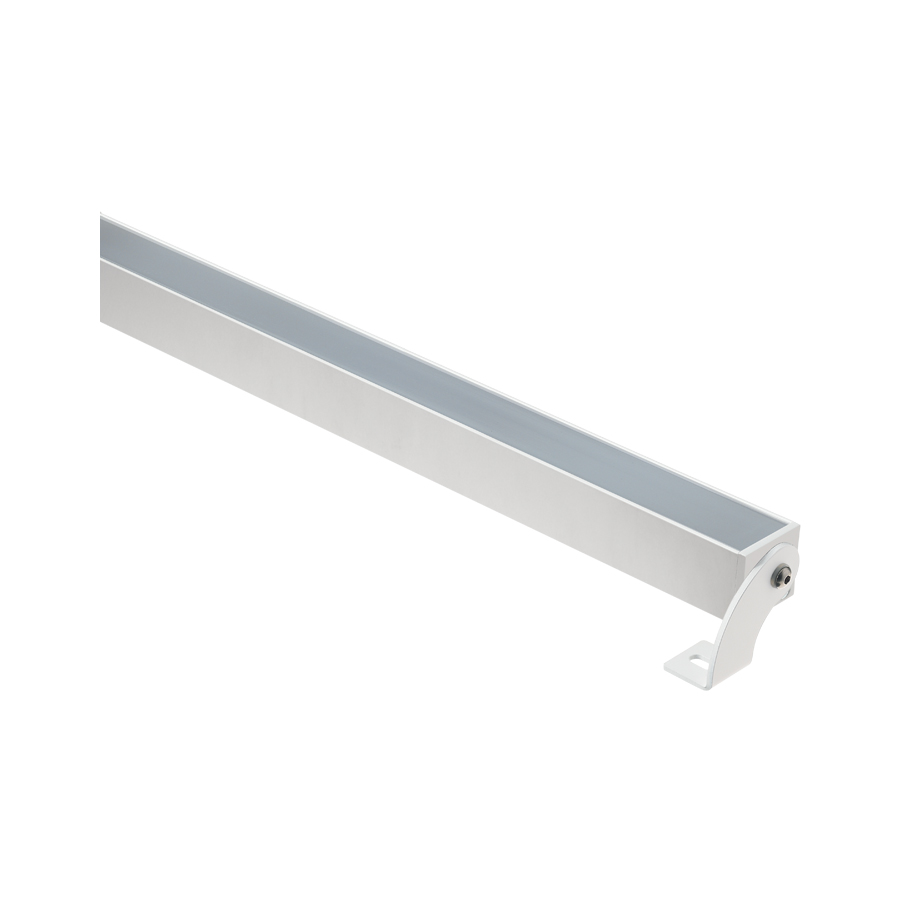

screen in opal polycarbonate (diffuse version)
Finishes white, anodized grey
Power supply unit power supply unit not included
Power cables includes 0,50 m PVC cable, 1,5 m FROR 2x0,35 Ø3,5 mm
Ingress protection IP40
Notes non-standard lengths available on request
Status Product being discontinued

Read more

Close

Accessories and power supply units

Accessories (0)

No accessories

Power supply units (20)

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 10W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
12Vdc; 11W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringON/OFF
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W
Power120W
DimmeringON/OFF
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W
Power180W
DimmeringON/OFF
Power supply unit IPIP20

AV0D024V03066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W
Power30W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W
Power60W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W
Power100W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W
Power200W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 + PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W
Power300W
DimmeringPUSH, DALI-2
Power supply unit IPIP66

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W
DimmeringON/OFF
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W
DimmeringON/OFF
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W
DimmeringON/OFF
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W
Power150W
DimmeringON/OFF
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W
DimmeringON/OFF
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W
DimmeringON/OFF
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W
DimmeringON/OFF
Power supply unit IPIP67

Control gear (4)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W
With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 24 Vdc input:; 24Vdc; 240W
With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20
