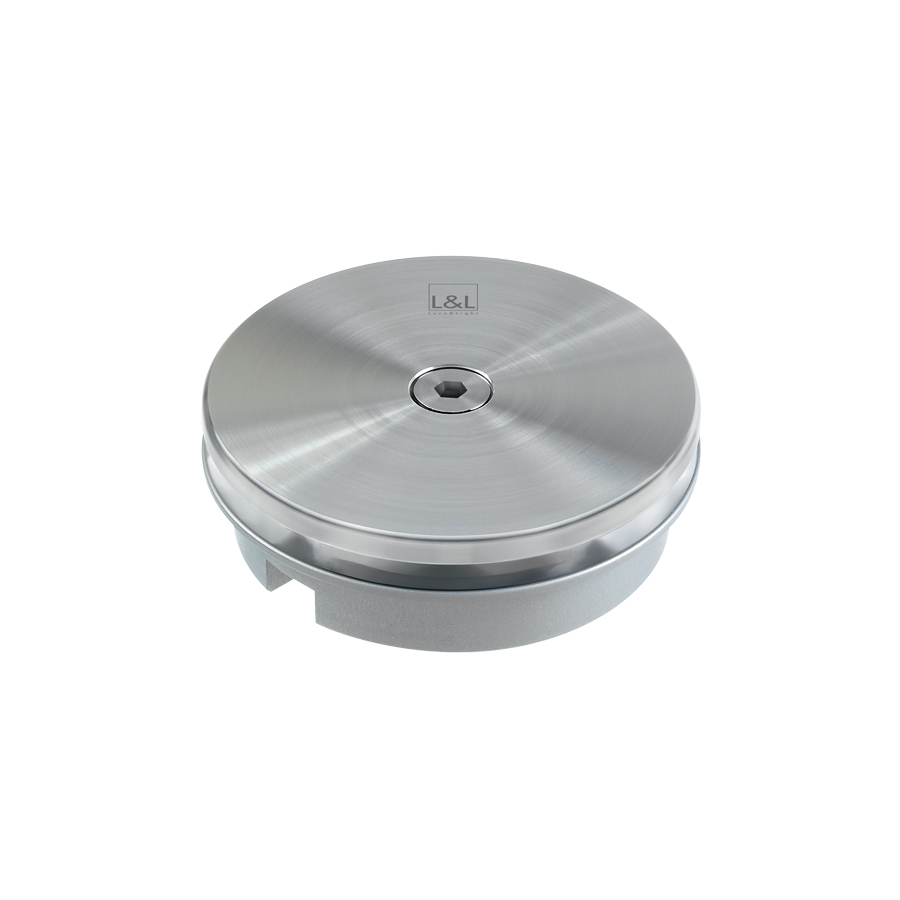

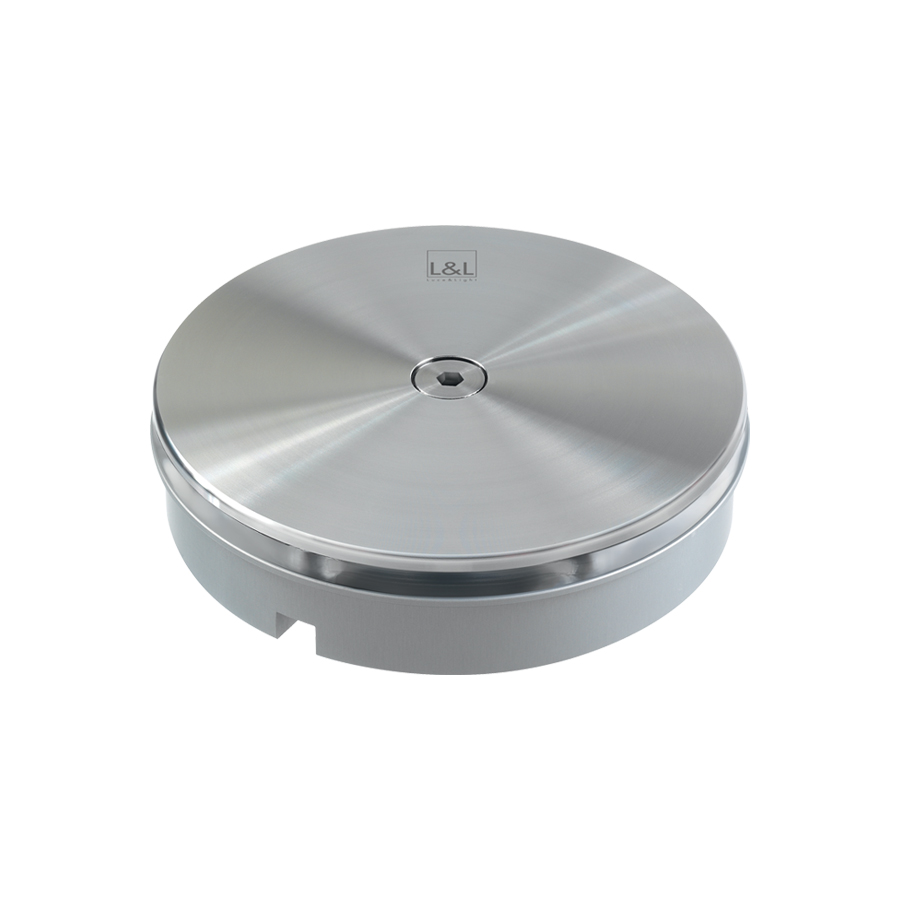

Bright 4.7 / 9.7 | Outdoor recessed

Share

New versions

  • Improved radial optics, thanks to the new side-emitting LEDs: more homogeneous lighting effect
  • Greater delivered lumen
  • Restyled design: pared-down style with a single central screw, sanded and polished to appear fully integrated with the body of the device
  • Product can be wired without having to open the fixture itself

Technical data

  • Application: outdoor
  • Mounting: recessed (ground)
  • Power: 2W (Bright 4.7) / 4W (Bright 9.7)
  • Power supply: 24Vdc
  • Optics: radial
  • LED colour: white: 2700K, 3000K, 4000K
  • No. and type of LED: 24 side-emitting LEDs (Bright 4.7) / 48 side-emitting LED (Bright 9.7)
  • Drive-over up to 2000 kg
  • IP68 / IK10 (Bright 4.7) / IP67 / IK10 (Bright 9.7)
  • Protection system: IPS

Lumen output at source

Bright 4.7 96 lm (3000K)
Bright 9.7 192 lm (3000K)

Delivered lumen output

Bright 4.7 70 lm (3000K)
Bright 9.7 164 lm (3000K)


Anti-vandal kit available on request for both versions
Devices not suitable for use in swimming pools or fountains
