Elettronica di controllo

AE01350T1

Emergency module integrated

Input
220─240Vac 50─60Hz
Output
max 350mA 58Vdc max
Dimensioni
35x47x166 mm, 185 g
Foro d’incasso
Ø58 mm
IP
20

AR330350TC

Home RGB

RGB group min-max
1÷10
Input
230Vac 50-60Hz
Output
350mA RGB
Dimensioni
36x60x225 mm, 240 g
Foro d’incasso
Ø72 mm
IP
20

AR330500TC

Home RGB

RGB group min-max
1÷6
Input
230Vac 50─60 Hz
Output
500mA
Dimensioni
36x60x225 mm, 240 g
Foro d’incasso
Ø72 mm
IP
20

ARC336350D1

Easy RGB

RGB group min-max
1÷3; 1÷6; 1÷12
Input
12Vdc; 24Vdc; 48Vdc
Output
350mA
Dimensioni
25x44x44 mm, 20 g
Foro d’incasso
Ø52 mm
IP
20

ARC336500D1

Easy RGB

RGB group min-max
1÷3; 1÷6; 1÷12
Input
12Vdc; 24Vdc; 48Vdc
Output
500mA
Dimensioni
25x44x44 mm, 20 g
Foro d’incasso
Ø52 mm
IP
20

ARCUNID2

Universal Sequencer

RGB group min-max
1÷6; 3÷12
Input
24Vdc; 48Vdc
Output
350mA; 500mA; 700mA
Dimensioni
90x72x60 mm
IP
20
Controllo
DMX512-RDM, 0-10V, 1-9V, Potentiometer 10kΩ, Push, Stand Alone, DALI

ARV230PD1

Easy RGB

Output power min-max
0÷90W; 0÷180W; 0÷360W
Input
12Vdc; 24Vdc; 48Vdc
Output
Vin=Vout 2,5A/Ch
Dimensioni
25x44x44 mm, 20 g
Foro d’incasso
Ø52 mm
IP
20

ARVUNID2

Universal Sequencer

Input
12Vdc; 24Vdc
Output
Vin=Vout; max 8A/ch; max 24A compl.
Dimensioni
90x72x60 mm
IP
20
Controllo
DMX512-RDM, 0-10V, 1-9V, Potentiometer 10kΩ, Push, Stand Alone, DALI
Output power
0─288W; 0─576W

DMX01

DMX Controller

Input
230Vac
Output
DMX512 bus
Dimensioni
79x92x43 mm, 120 g
IP
20

TLA01

Antenna ricevente

TLC05

Radiocomando a 4 canali

Input
1 batteria 12V alcalina
Output
433,90 MHz
Dimensioni
Ø85x28 mm
IP
20

TLC06

Radiocomando a 2 canali

Input
1 batteria 3V CR2025
Output
433,90 MHz
Dimensioni
55x28x10 mm
IP
20

TLR01

Ricevente

Input
12─24Vdc
Output
2 contatti puliti
Dimensioni
90x53x28 mm
IP
20

TOUCH 01D1

Touch-screen device

Input
12÷24Vdc
Output
DMX512 bus PWM bus (2A/ch)
Dimensioni
86x86x15,5 mm, 150 g
IP
20

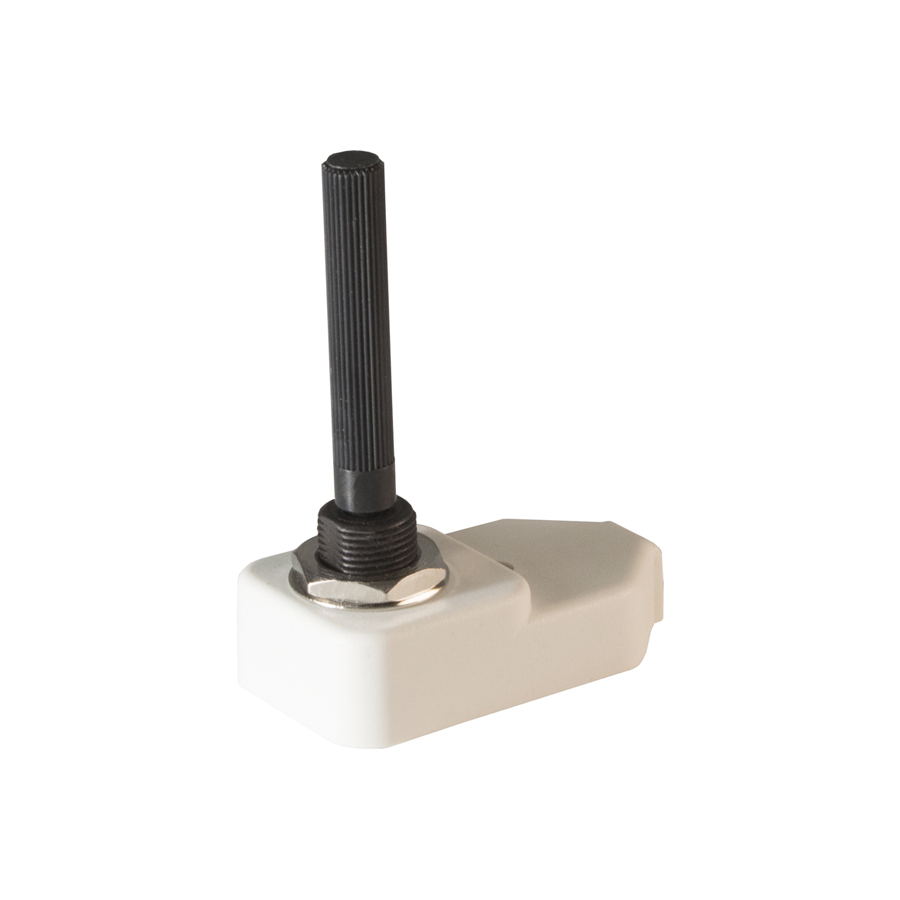

WX05

Potenziometro regolazione 1-10V
