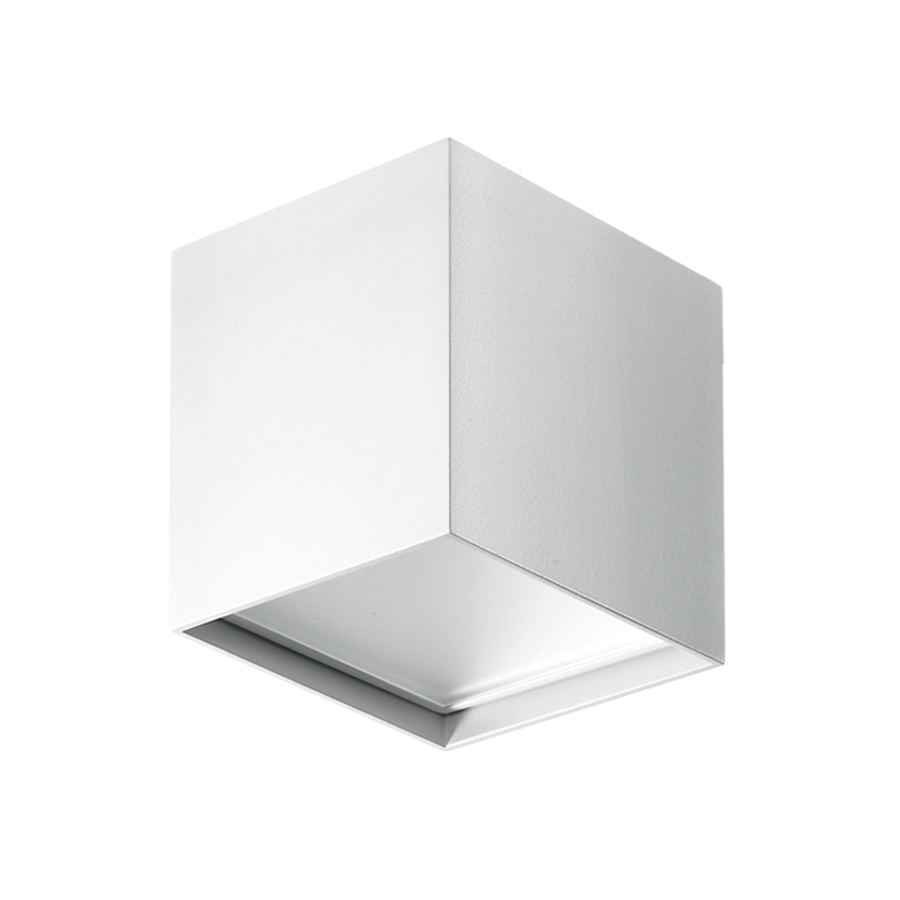

Teko 7.0

Ceiling mounted for indoor applications

ceiling mounted for indoor applications - 9/17W 230Vac - diffuse optics - 100x100x101 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Constant-current or constant-voltage power supply for remote DALI control

Technical data

Print technical data

Updated to TK70115DB

  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • lighting fixture with LED technology
  • gross weight
    kg 0,60
  • IP40
  • RAL finish on request
  • F
Installation ceiling mounted for indoor applications
Power consumption 17W
Power supply 230Vac
Lumen output at source 1565 lm (3000K, 17W)
Delivered lumen output 1119 lm (3000K, 17W)
Datasheet

Copied

Mounting surface mounted (ceiling)
Number and type of LED power LED matrix, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 3000K
Optics diffuse
CRI Colour Rendering Index 80
Body material body in anodized aluminium
Screen material screen in one-side-frosted, transparent plexiglass
Finishes white
Power supply unit built-in power supply unit
Power cables terminal block
Ingress protection IP40
Notes Casambi-compatible version, controllable with the Casambi app, available on request
Status Available
