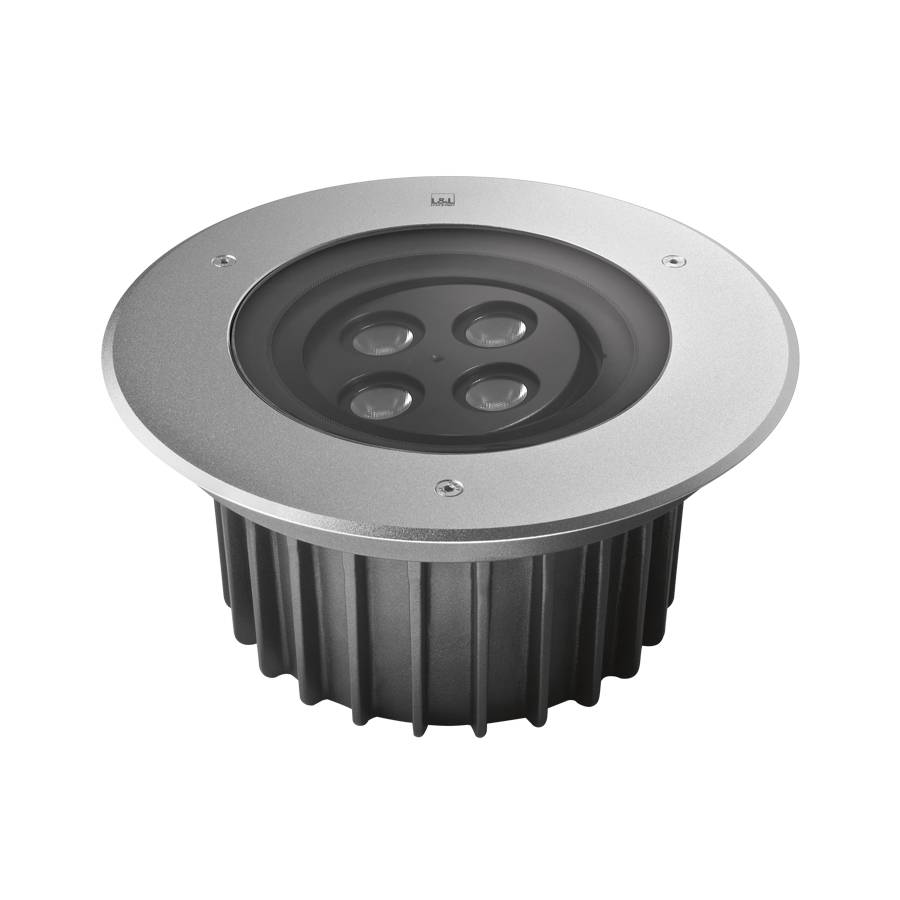

Recessed for outdoor applications

Stra

Archictectural lighting for large buildings

Line of outdoor recessed uplights with built-in power supply in the 2700K, 3000K and 4000K white light version (in 24Vdc with RGBW LED colour) and power range from 25W to 39W.
Stra is available in four versions that differ in the way the optics are adjusted: manually, with a motor or fixed.

Stra is drive-over up to 5000 kg and has an IP68 rating. It has an outer casing in stainless steel for installation without the need for drainage. All versions have 4 high-intensity power LEDs.

  • Stra

    Version DimensionsPowerPower supplyLED colour
    Stra 1.0Ø290x138 mm37W230Vac2700K, 3000K, 4000KDetails
    Stra 2.0Ø290x138 mm25W230Vac2700K, 3000K, 4000KDetails
    Stra 3.0Ø290x138 mm25W230Vac2700K, 3000K, 4000KDetails
    Stra 4.0Ø290x138 mm25W230Vac2700K, 3000K, 4000KDetails
    Stra 5.0Ø290x138 mm39W24VdcRGBWDetails

    Stra

    • VersionStra 1.0
    • DimensionsØ290x138 mm
    • Power37W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionStra 2.0
    • DimensionsØ290x138 mm
    • Power25W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionStra 3.0
    • DimensionsØ290x138 mm
    • Power25W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionStra 4.0
    • DimensionsØ290x138 mm
    • Power25W
    • Power supply230Vac
    • LED colour2700K, 3000K, 4000K
    Details
    • VersionStra 5.0
    • DimensionsØ290x138 mm
    • Power39W
    • Power supply24Vdc
    • LED colourRGBW
    Details

Unique Selling Points

body in die-cast aluminium

trim in AISI 316L stainless steel, made with a CNC lathe then micro-peened, passivated and electropolished to guarantee excellent corrosion resistance

anti-glare recessed optics

15-mm-thick tempered extra-clear glass, with vitrified serigraphy, to ensure chromatic uniformity of light and excellent resistance to knocks and scratches

6-step material protection, and oxidation and corrosion resistance
- Low-copper-content aluminium alloy EN AB 47100
- Preparation for painting
- Epoxy paint
- Polyester paint
- Paints compliant with Qualicoat automotive coating standard
- Tested in saline mist (over 1500 hours)

  • Stra 1.0: 66°x11° optics, adjustable through 360° using the magnet provided (patented)

  • Stra 2.0: manual adjustment of optics: ±10° on z-axis, ±30° on x-axis
    Stra 3.0: 2 optical groups, adjustable manually and singly: ±15° on the z axis, ±30° on the x axis

  • Stra 4.0: infrared remote control to remotely adjust the light beam by ±10

  • Protection systems

    IPS Intelligent Protection System

    PID Protective Impedance Device

    SPD Surge Protection Device

  • Suitable for outdoor installations

  • Maximum resistance

    IP69K - Resistant to high-pressure, high-temperature spray-downs (ISO-20653 compliant)

    IK10 - Maximum resistance

  • Drive-over for loads of up to 5000 kg
