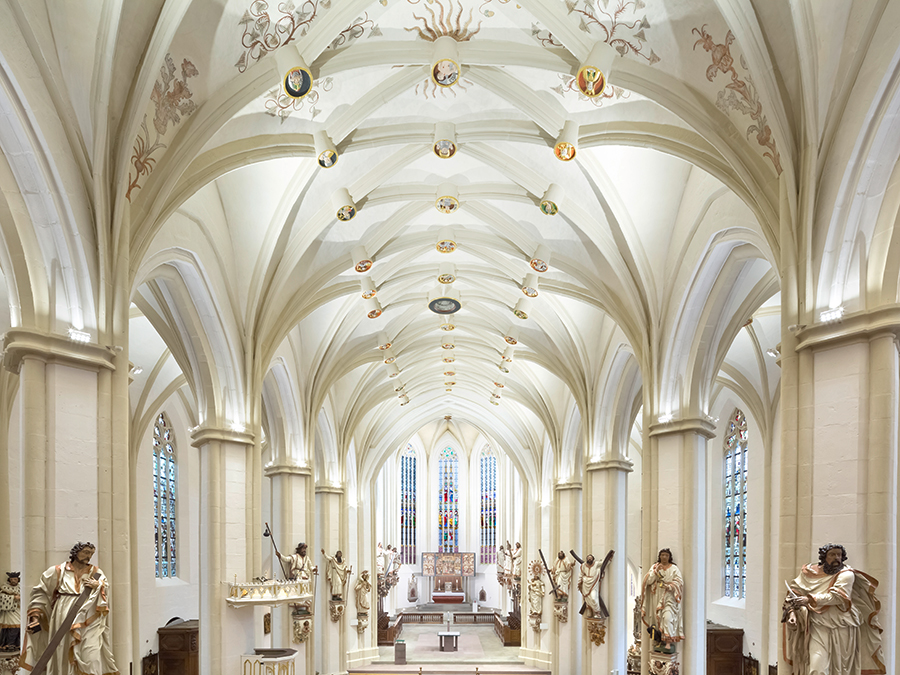

Basilika St. Cyriakus, Duderstadt, Germany
Light planning by / Die Lichtberater Michael Feller
Photo by / ©Manfred Zimmermann

Projectors for indoor applications

Templa


Templa is a family of indoor projectors suitable for lighting large spaces and available in different sizes that can house from four to twenty-seven white-light power LEDs.

The Templa range of projectors has a stainless steel bracket for surface mounting.

  • Templa

    Version DimensionsPowerPower supplyDelivered lumen output
    Templa 1.0102x102x56 mm14W48Vdc733 lm (3000K, 30°)Details
    Templa 1.1102x202x56 mm28W48Vdc1466 lm (3000K, 30°)Details
    Templa 2.0102x152x56mm20W48Vdc1100 lm (3000K, 30°)Details
    Templa 2.1100x302x56 mm39W48Vdc2200 lm (3000K, 30°)Details
    Templa 3.0152x152x56 mm29W48Vdc1650 lm (3000K, 30°)Details
    Templa 3.1152x302x56 mm58W48Vdc3300 lm (3000K, 30°)Details
    Templa 3.2152x452x56 mm87W48Vdc4950 lm (3000K, 30°)Details

    Templa

    • VersionTempla 1.0
    • Dimensions102x102x56 mm
    • Power14W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 1.1
    • Dimensions102x202x56 mm
    • Power28W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 2.0
    • Dimensions102x152x56mm
    • Power20W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 2.1
    • Dimensions100x302x56 mm
    • Power39W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 3.0
    • Dimensions152x152x56 mm
    • Power29W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 3.1
    • Dimensions152x302x56 mm
    • Power58W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details
    • VersionTempla 3.2
    • Dimensions152x452x56 mm
    • Power87W
    • Power supply48Vdc
    • LED colour2700K, 3000K, 4000K, 5000K
    Details

Unique Selling Points

  • RAL finish on request
