Moby 2.0

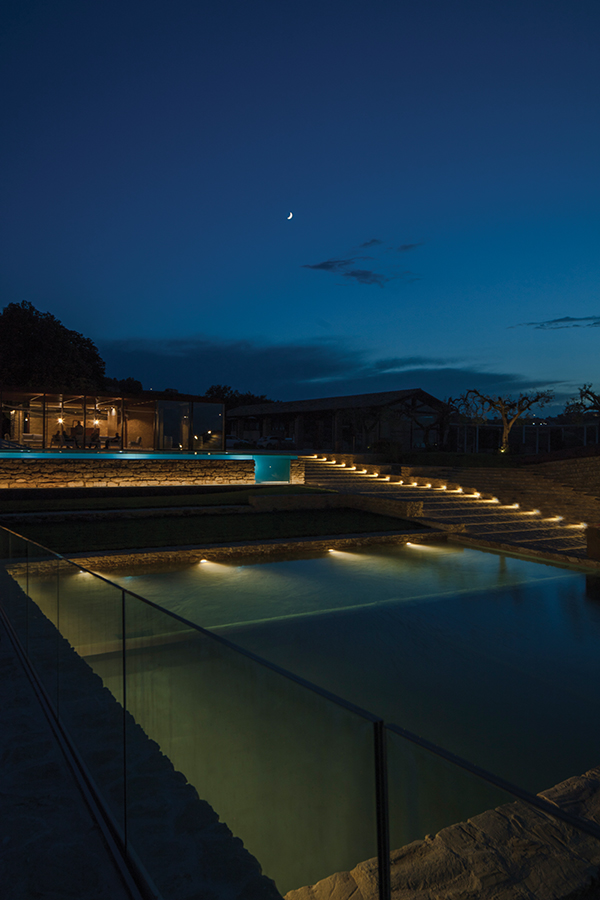

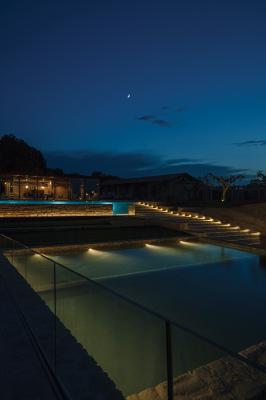

Recessed for underwater applications

recessed for underwater applications - 20W - 24Vdc - Ø232 mm - trim in AISI 316L stainless steel

Generate code

Technical data

Print technical data
  • RGBW
  • shades of cyan
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • BIS R-41105201
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 1,60
  • IP65
  • IP68
  • IK10
  • IPS
  • NTC
  • Casambi control
  • F
Installation recessed for underwater applications (not suitable for use in seawater, only suitable for underwater applications)
Power consumption 20W
Power supply 24Vdc
Lumen output at source 1522 lm (3000K),
RGBW: 884 lm, R: 138 lm G: 259 lm B: 69 lm W: 418 lm (4000K),
cyan: 782 lm
Delivered lumen output 1078 lm (3000K, 34°),
RGBW: 626 lm, R: 97 lm G: 184 lm B: 48 lm W: 297 lm (4000K, 34°),
cyan: 552 lm (34°)
Datasheet

Copied

Mounting recessed (wall), max depth 10 m
Number and type of LED 3 power LEDs groups, 2-step MacAdam (white LED colour);
RGBW: 3 RGBW LEDs groups;
Cyan: 3 Cyan LEDs groups
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, RGBW, shades of cyan

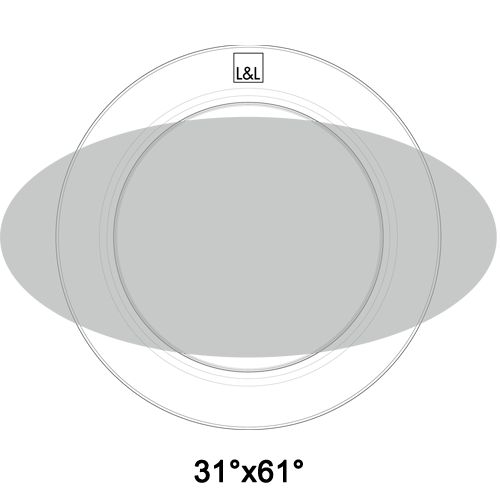

Optics 22°, 34°, 62°, 31°x64°
CRI Colour Rendering Index 80
Body material body in thermally conductive technopolymer, trim in AISI 316L stainless steel
Screen material screen in tempered, transparent extra-clear glass
Finishes stainless steel
Power supply unit power supply unit not included
Power cables includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm;
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection IP65, IP68
Impact resistance IK10
Status Available

Read more

Close

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

  • Cables in non-standard length

Accessories and power supply units

Accessories (3)

Outer casings

WC5202

Outer casing

Honeycomb louvre

Order together with the lighting fixture.

WH0402

Honeycomb louvre

built into the lighting fixture

Various accessories

WC5302

Accessory for liner

Power supply units (11)

Control gear (8)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 24 Vdc input:; 24Vdc; 288W
With 12 Vdc input:; 12Vdc; 144W ⚠
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W

2 channels

With 24 Vdc input:; 24Vdc; 240W

4 channels

With 24 Vdc input:; 24Vdc; 384W

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 24 Vdc input:; 24Vdc; 120W

4 channels

With 24 Vdc input:; 24Vdc; 240W

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 24 Vdc input:; 24Vdc; 240W
With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

ECCTR1244CV20

Router / controller WIFI/RF 4x4A RGBW

order in addition to PSU

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 384W
With 12 Vdc input:; 12Vdc; 192W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

ECCTS5244CV20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 480W
With 12 Vdc input:; 12Vdc; 240W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR02-01

Controller with integrated 4-channel receiver for RGB/RGBW/dynamic white/dimming

order in addition to PSU
RGB/RGBW: Required TLC08 or TLC09 remote control, not included
Dynamic white/dimming: PUSH switch

Input12-24Vdc
Output

4 channels

With 24 Vdc input:; 24Vdc; 240W

3 channels

With 12 Vdc input:; 12Vdc; 90W ⚠
With 24 Vdc input:; 24Vdc; 180W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
DimmeringPUSH, Stand alone, Radio frequency
Power supply unit IPIP20

TLR03

Cyan colour controller with integrated 2-channel receiver

order in addition to PSU
Required TLC10 remote control, not included

Input12-24Vdc
OutputWith 24 Vdc input:; 24Vdc; 192W
With 12 Vdc input:; 12Vdc; 96W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

Control input (11)

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC10

Remote control for TLR03

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
