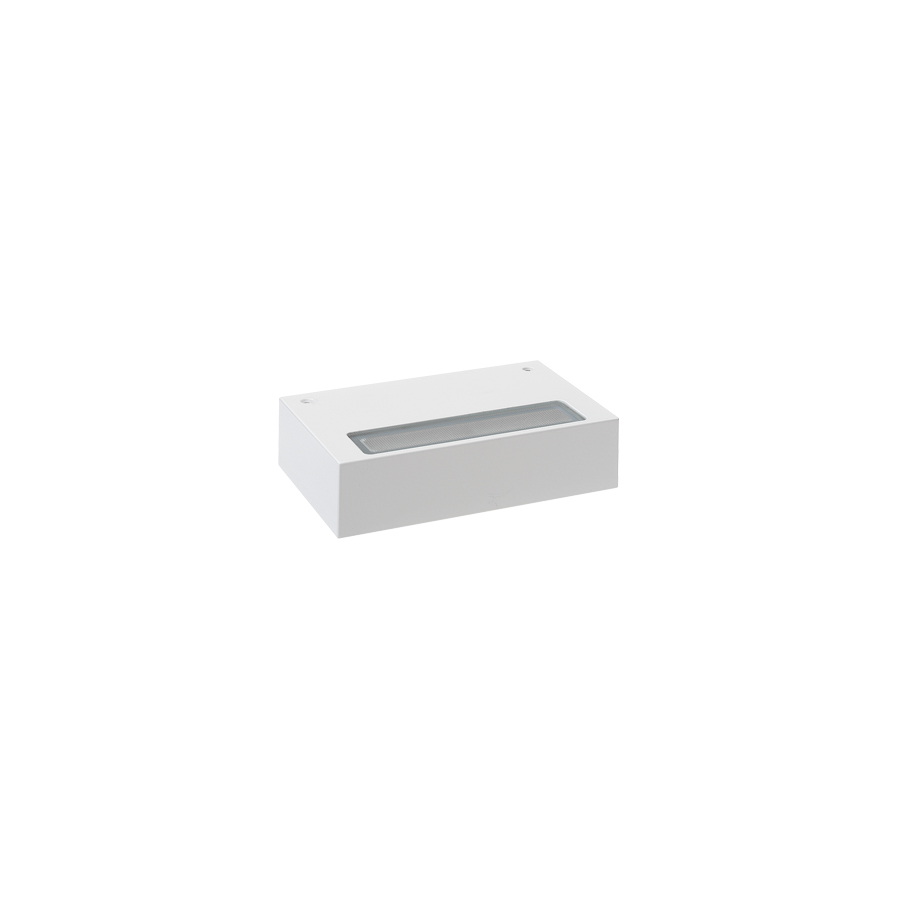

Ella IN 2.0

Ella IN 2.0
Send to a friend Ask information Print

Wall mounted for indoor applications - 13W 230Vac - 208 mm

Compiles with the European standard EN 60598-1 Device with LED technology Gross weight of the product kg 0,80 IP 40 IK08 Energy efficiency class RAL finish on request

Download


Product Code

Result: EA2010_D_N

Settings

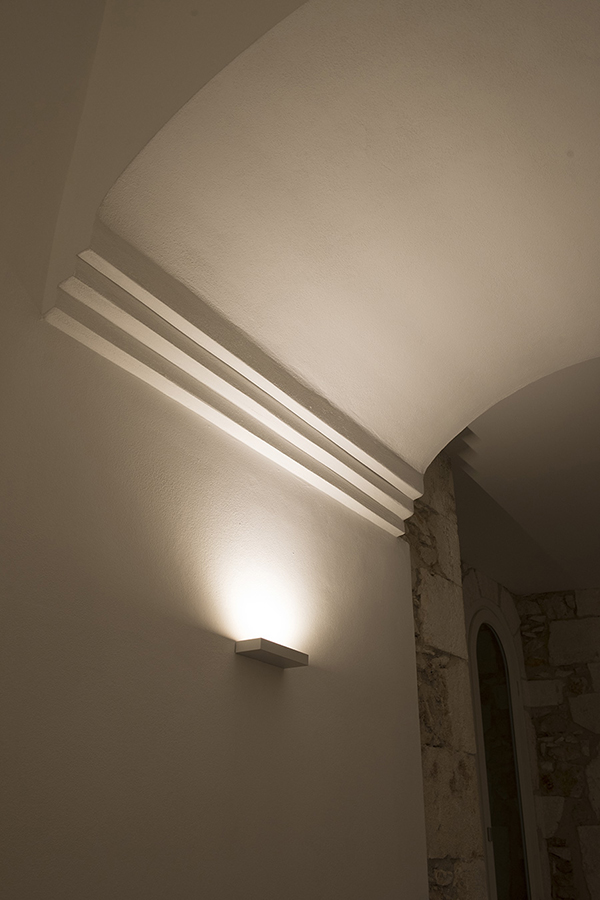

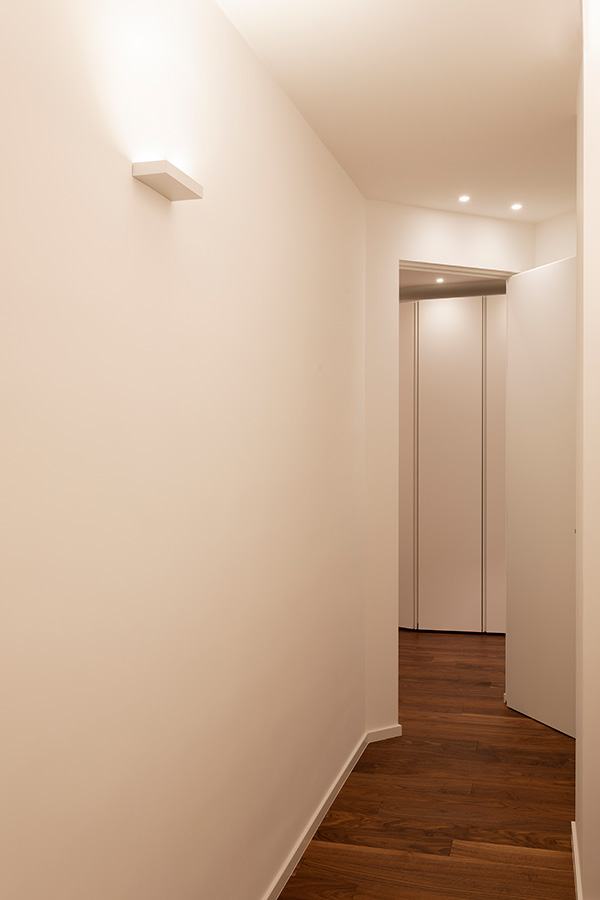

B&B Foggia_02 Milano_01 Castello Tafuri Charming Suites_08 B&B Foggia_05

Technical data

Installation
wall mounted for indoor applications
Mounting
surface mounted (wall)
Material
body in aluminium, screen in microprismatic glass
Finishes
pure orange; light ivory; white; capri blue; chrome; reseda green
Nº and type of LED
36 mid power LEDs
Nominal power consumption
13W
Power supply
230Vac
Power supply unit
built in
Lumen output at source
1550 lm (3000K)
Delivered lumen output
985 lm (3000K)
Optics
diffuse
LED colour
2700K; 3000K; 4000K
Ingress protection
IP40
Impact resistance
IK08
Weight
800 g
Energy efficiency class
A / A+ / A++
Status
available

Description

Wall mounted for indoor applications; surface mounted (wall); body in anticorodal aluminium 6060, screen in microprismatic glass; finishes: pure orange, light ivory, white, capri bluee, chrome, reseda green; 36 mid power LEDs; 13W - 230Vac; built in power supply unit; total delivered lumens: 985 lm (3000K); diffuse optics; LED colour: white - 2700K, 3000K, 4000K; ingress protection: IP40; impact resistance: IK08; operating temperature: 0°C +45°C; screen temperature: max 40°C (Ta 25°C); Glow Wire Test: 960°; photobiological safety: risk group 1 in accordance with EN62471:2006; appliance class: I; weight 0.80 kg; dimensions 208x80x29 mm; accessories: spacer for 15° inclination WD06021 / WD06022 / WD06023 / WD06024 / WD0602B / WD0602C

Accessories


WD06021

Spacer - pure orange

WD06022

Spacer - reseda green

WD06023

Spacer - capri blue

WD06024

Spacer - light ivory

WD0602B

Spacer - white

WD0602C

Spacer - chrome

Power supply

No power supply needed

Control gear

AE01350T1

Emergency module integrated

Input
220─240Vac 50─60Hz
Output
max 350mA 58Vdc max
Dimensions
35x47x166 mm, 185 g
Cut-out size
Ø58 mm
IP
20
