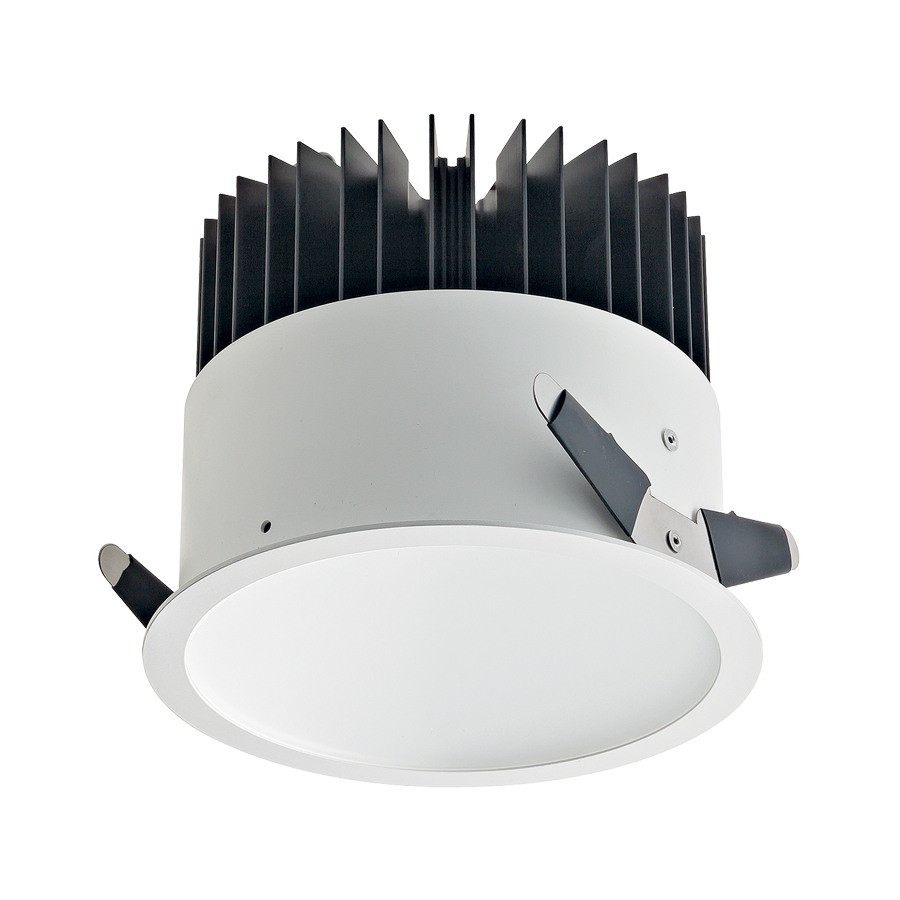

Turis 7.1

Recessed for indoor applications

recessed for indoor applications - 22W/30W 230Vac - ø162 mm - with trim

Generate code

Technical data

Print technical data
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • appliance class II
  • gross weight
    kg 2,20
  • cut-out size
    Ø150 mm
  • IP40
  • DALI
  • PUSH
  • 0/1-10V
  • RAL finish on request
  • F
Installation recessed downlight for indoor applications
Power consumption 30W, 22W
Power supply 230Vac
Lumen output at source 2231 lm (3000K, 22W),
3380 lm (3000K, 30W)
Delivered lumen output 1620 lm (3000K, 22W),
2430 lm (3000K, 30W)
Datasheet

Copied

Mounting recessed (ceiling)
Number and type of LED 8 power LED (22W version), 12 power LEDs (30W version), 3-step MacAdam, 50 000h L80 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K
Optics diffuse
CRI Colour Rendering Index 80
Body material body in black-anodized aluminium, trim in steel
Screen material screen in one-side-frosted, transparent plexiglass
Finishes grey, black, white
Power supply unit power supply unit included
Power cables includes 0,30 m cable
Control system PUSH, DALI, ON/OFF, 0/1-10V
Ingress protection IP40
Notes version with CRI >90 available on request,
Casambi-compatible version, controllable with the Casambi app, available on request
Status Product being discontinued
